Miele H6090B - Building-in Diagrams

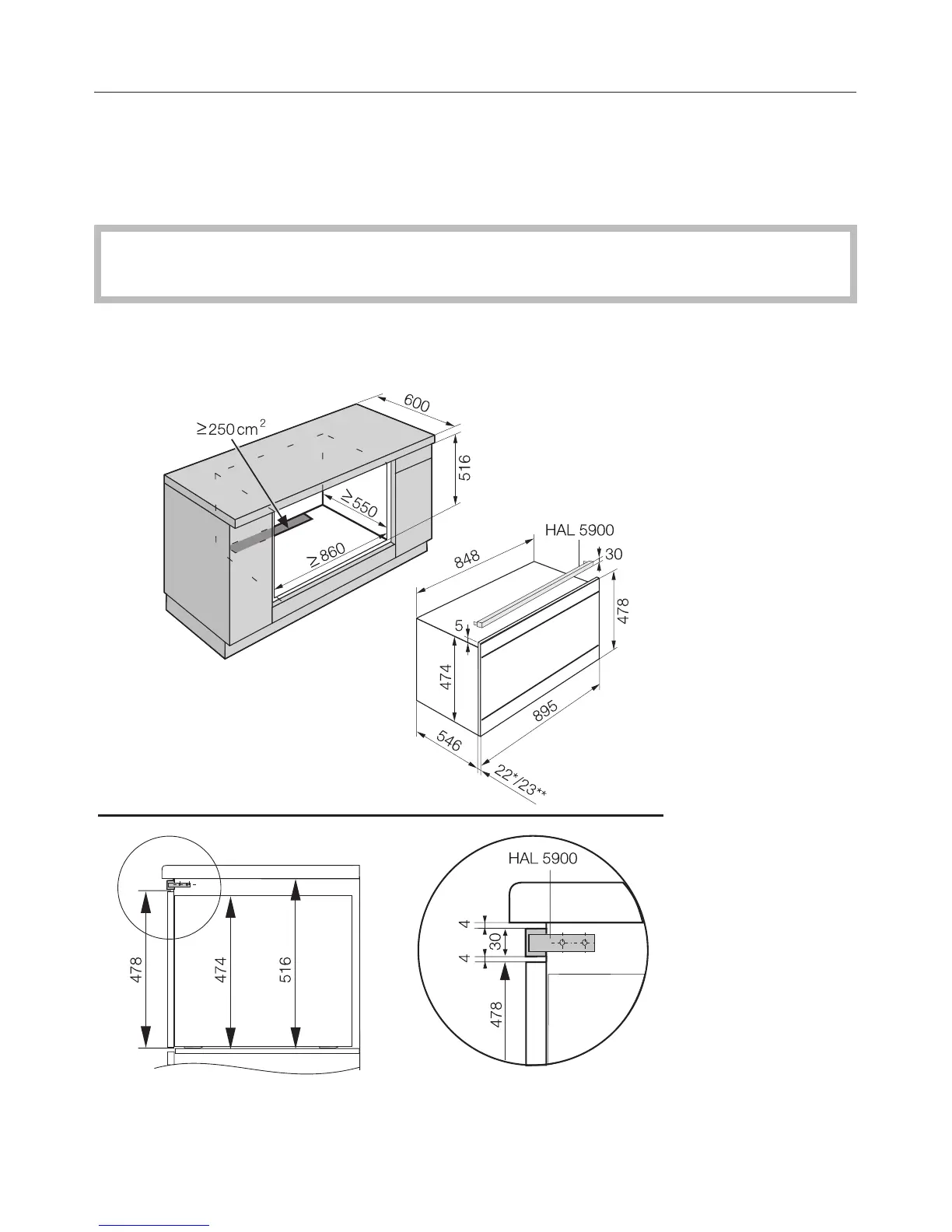

Appliance dimensions and unit cut-out
All measurements are given in mm.
Installation in a base unit
HAL (90 cm) trim, available as an optional accessory, is only required when
building the oven into a base unit.
^
Fix the HAL (90 cm) trim into the unit cut-out under the worktop (see lower
section of diagram).
* Ovens with glass front
** Ovens with metal front
Building-in diagrams
64
