Miele H6500 - Installation Diagrams; Appliance and Cut-Out Dimensions; Installation into a Tall Cabinet

Installation diagrams
129

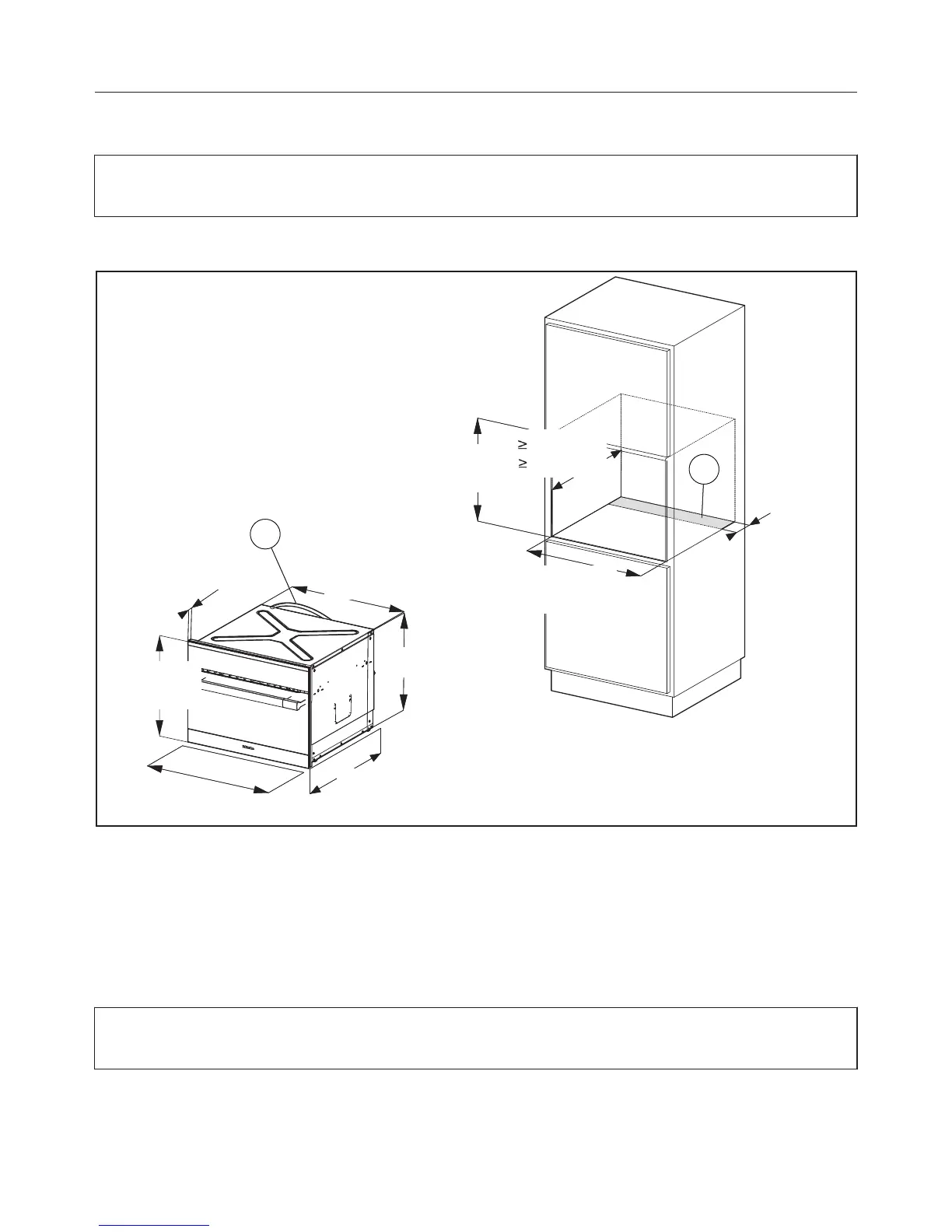

Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
r
equirements with your architect, designer and installer.
Installation into a tall cabinet
B
A
B
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
17 3/4" - 17 13/16"
(450-452 mm)
21 5/8"
( 550 mm)

Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
co
rd and ventilation

Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Mi
ele website.
