Installing the appliance
51
This will create a gap all round of 42
mm to the front edges of the housing
unit side walls.
On furniture with door fittings (e.g.
stubs, seals etc.) the dimension of
these must be taken into account
when making sure there is a gap all
round of 42 mm.
Pull the appliance forwards by the
appropriate dimension.
The hinges will now protrude by the
dimension of the door fitting.
Tip: Remove the door fittings. This will
ensure that the door is flush with the
surrounding kitchen unit furniture doors.
Aligning the appliance
Take the bottom shelf out of the door.
This will make it easier to install the
appliance.
Hold the plinth facing at the side and
pull it forwards and off.

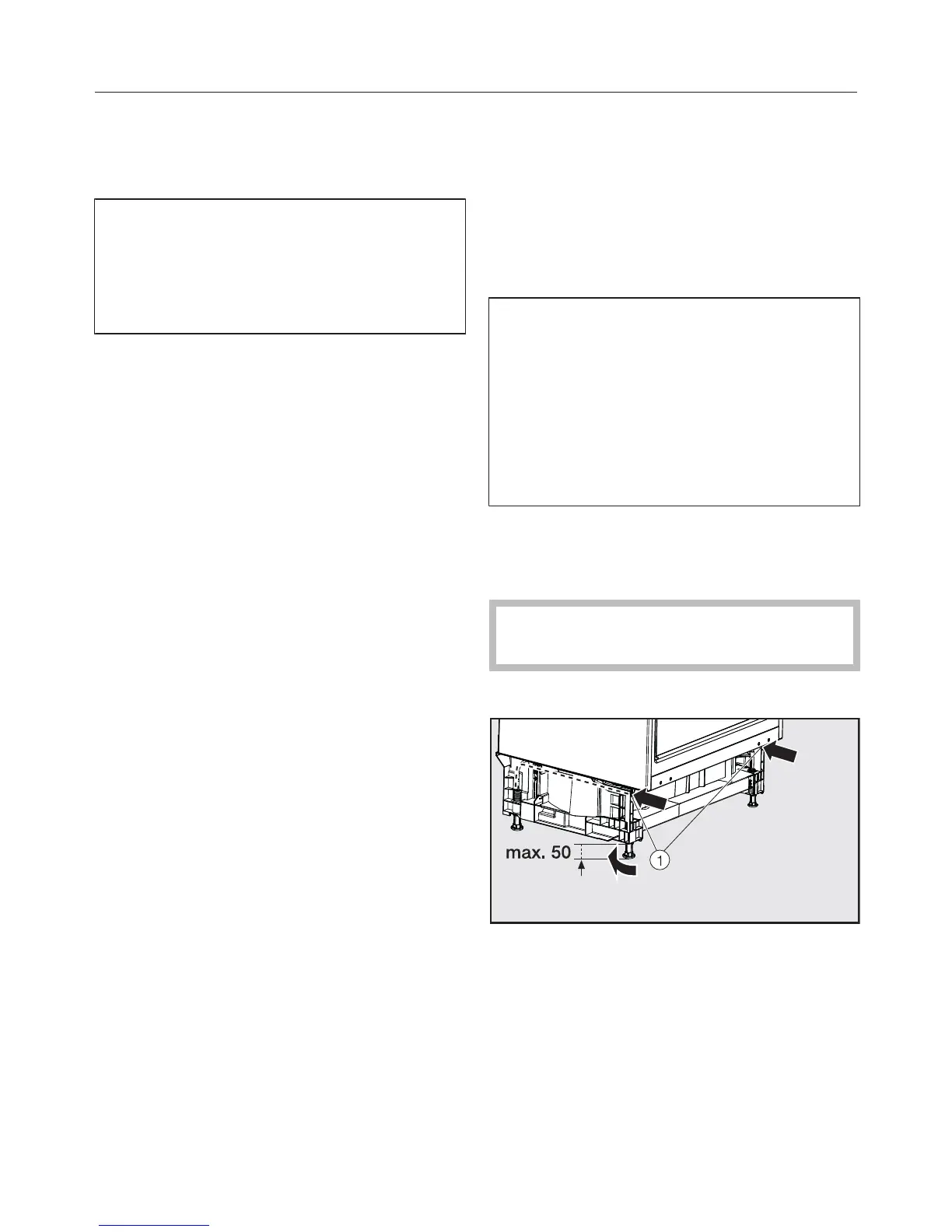

With a building-under height of
820mm the adjustable feet must not
be extended.
With a building-under height greater
than 820mm the feet must be
extended. For a building-under height
of 870mm they need to be extended
approx.50mm.
Adjust the feet according to the
height of the niche and make sure the
appliance is correctly aligned.
The appliance should fit fairly tightly
between the floor and the worktop.
Proceed as follows:
Adjust both rear feet with appropriate
screws at the front right and left in
the appliance plinth. Use a 7mm flat-
bladed screwdriver.
