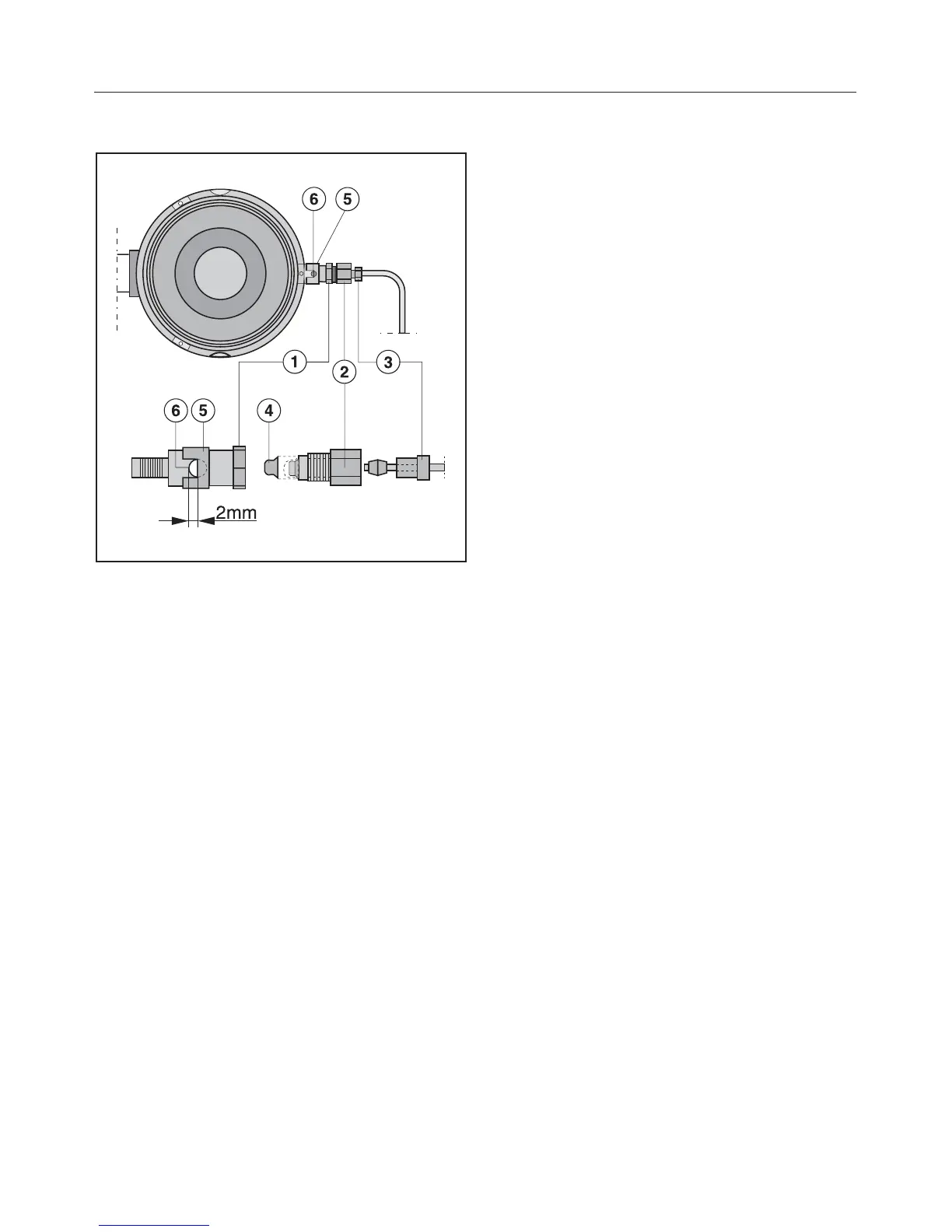

To change the jet for the inner burner
d Jet disc (main jet for the inner
burner)
e Air intake
f Vent
^
Whilst counterholding it in place with
an SW 12 spanner, remove screw c
from screw fitting b using an SW 8
spanner.
^
Whilst counterholding it in place with
an SW 12 spanner, remove screw
fitting b from fitting a with another
SW 12 spanner.
^
Take out the jet disc d held in a,
and replace with the correct jet disc
(see jet table).
^
Adjust air intake e until the two
vents f havea2mmgapas
illustrated.
^ Reassemble the parts in the reverse
order.
Conversion to another type of gas
58
