Installation
*INSTALLATION*
74

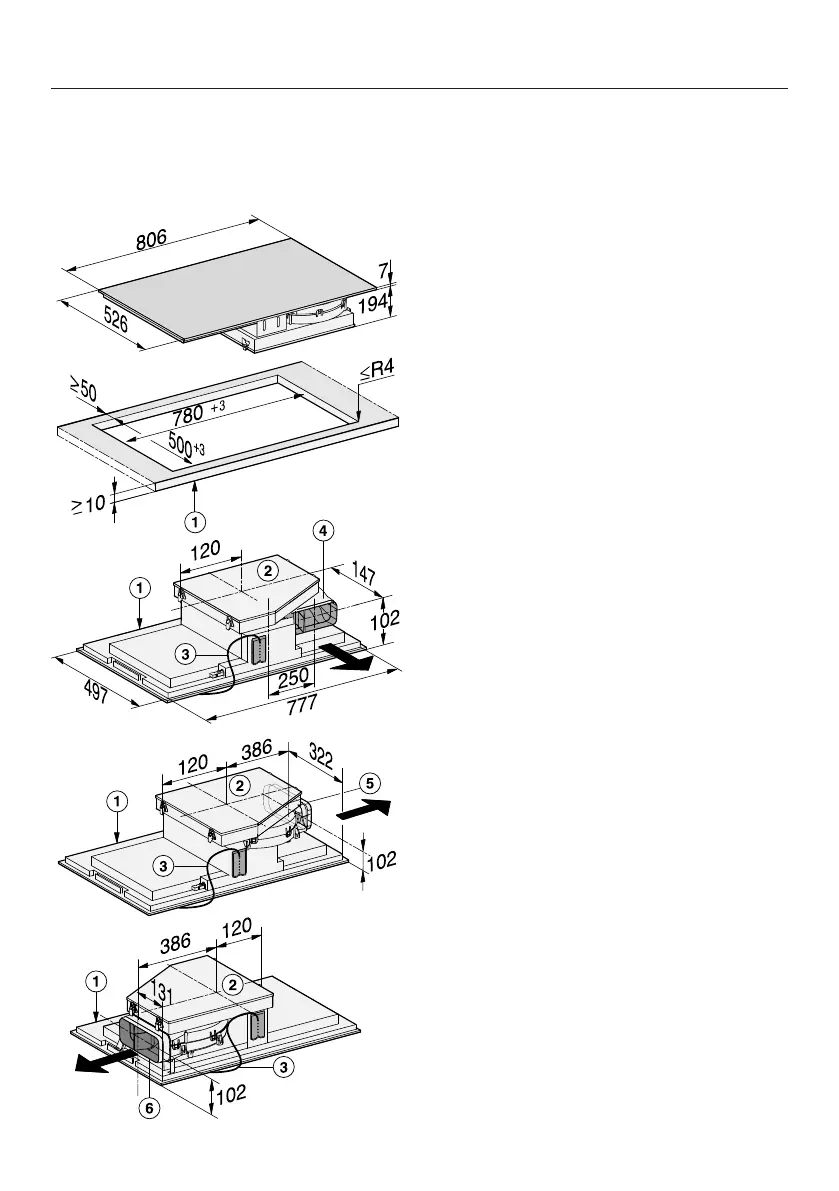

Installation dimensions –
Surface-mounted
KMDA7633FR, KMDA7634FR
a
Front
b
Removable drip tray
c
Mains connection box with mains
connection cable, L = 1440mm
d
Air duct connection – at the back
(ex-works)
e
Air duct connection – on the right
(conversion required)
f
Air duct connection – on the left
(conversion required)
