Miele KMDA 7634 FL - Turning the Extraction Ducting Connection Anticlockwise

Installation
*INSTALLATION*
86

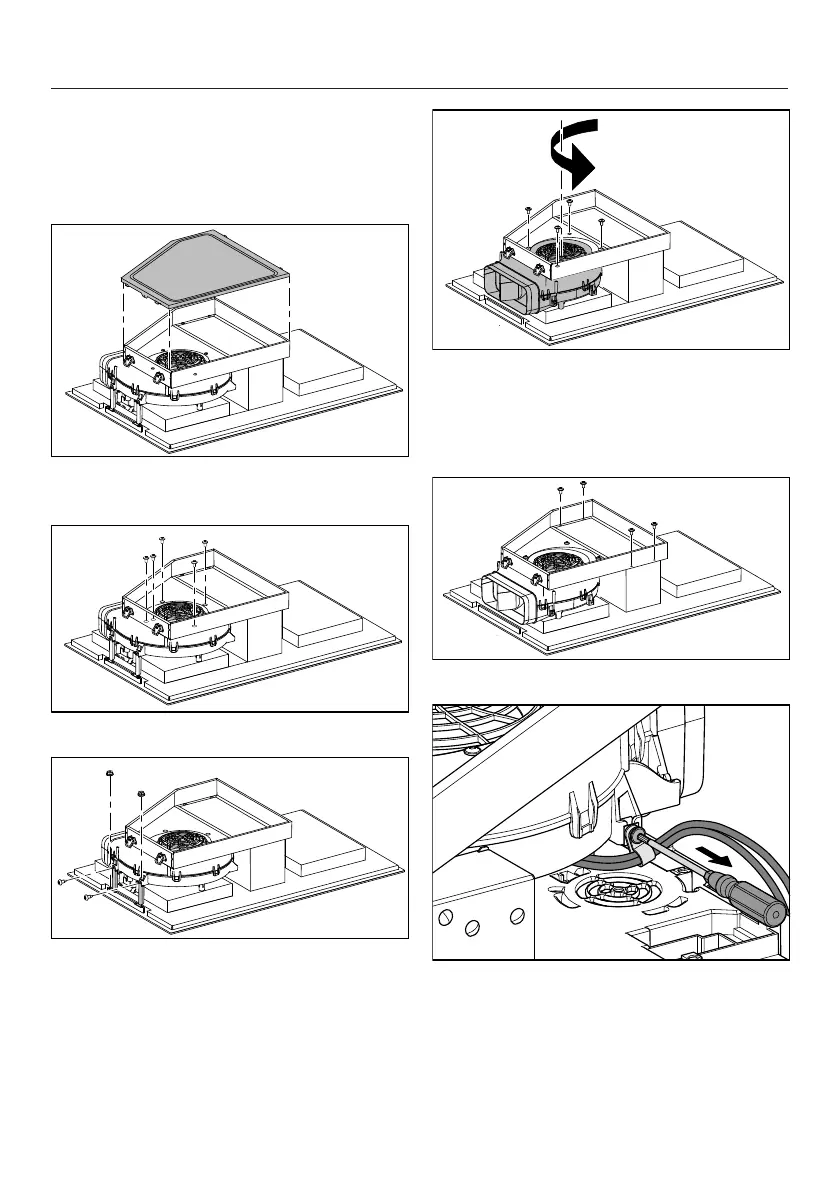

Turning the extraction ducting
connection anticlockwise
 Place the hob on its ceramic surface
on a soft underlay.
 Release the 4 catches and remove
the drip tray.
 Undo the 5 screws on the fan.
 Undo the fixing bracket.
 Rotate the fan by 90°.
 Secure the fan again (you only need
4screws). Make sure that the plastic
edge is on the left.
 Undo the 4 screws on the frame.
 Loosen the cable tie.
