Extraction direction
modification
If you modify the extraction direction,
the original brackets will no longer be
required.
Use the bracket provided separately
with the cooker hood once the
extraction direction has been
modified.
Keep the original brackets in case
the extraction direction needs to be
modified again.

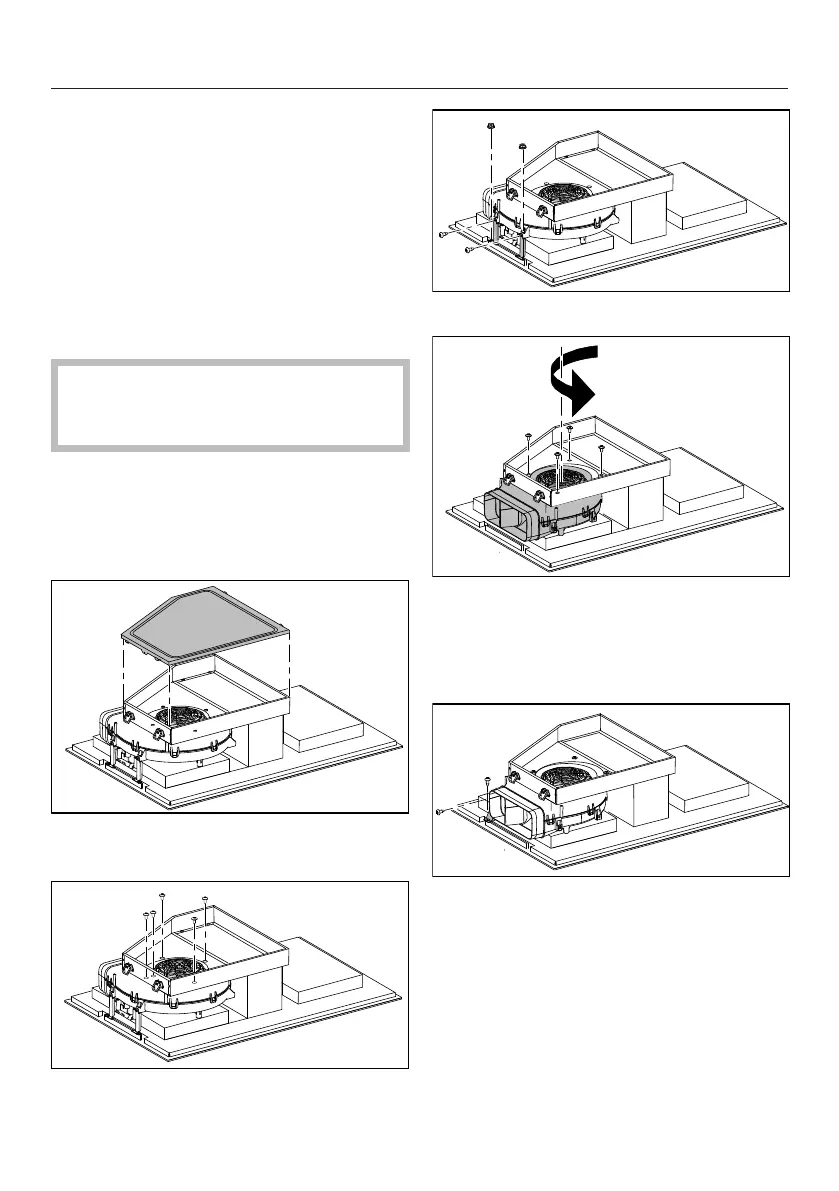

Turning the extraction ducting
connection clockwise
Place the hob on its ceramic surface
on a soft underlay.
Release the 4 catches and remove
the drip tray.
Undo the 5 screws on the fan.
Undo the fixing bracket.
Rotate the fan by 90°.
Secure the fan again (you only need
4screws). Make sure that the plastic
edge is on the left.
Use the bracket supplied separately
to secure the fan.
Place the cooker hood onto the drip
tray again and secure the tray using
the 4 catches.
