Miele KMDA 7634 FL - Worktop Depth Greater than 600 MM

Installation
*INSTALLATION*
83

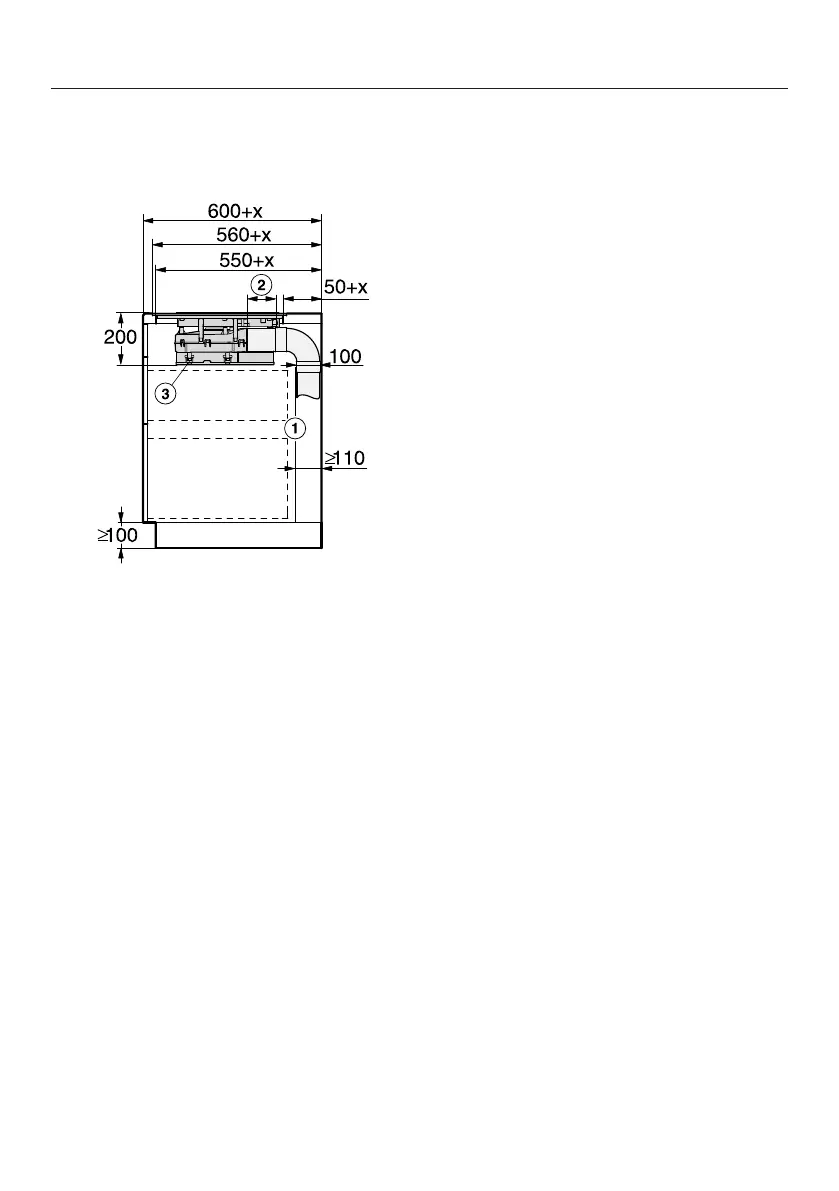

Worktop depth greater than 600mm
KMDA7633FL, KMDA7634FL
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or a piece of furniture
must be at least 110mm apart to
ensure sufficient room for the
ducting.
b
Variable length of interim piece
c
Drip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600mm.
