Miele KMDA 7634 FL - Installation Dimensions - Flush-Mounted; Kmda 7633 Fl, Kmda 7634 Fl

Installation
*INSTALLATION*
80

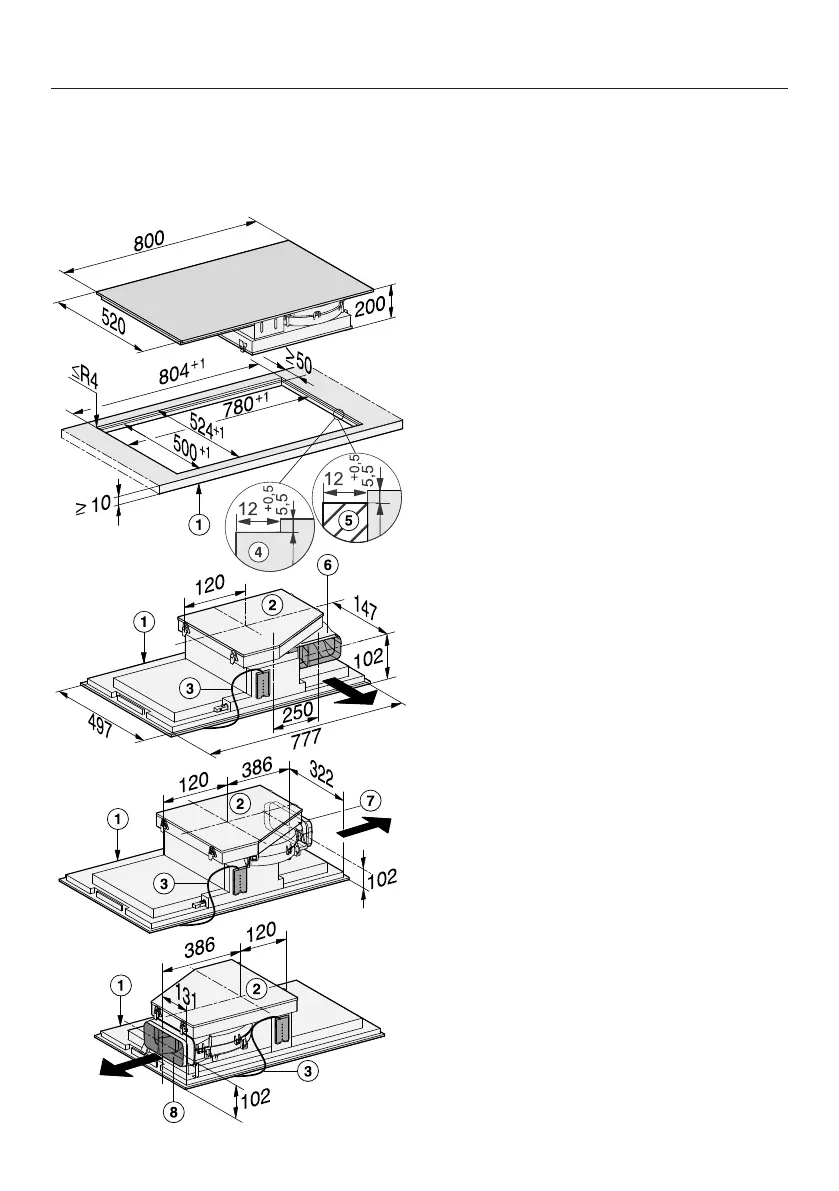

Installation dimensions–
Flush-mounted
KMDA7633FL, KMDA7634FL
a
Front
b
Removable drip tray
c
Mains connection box with mains
connection cable, L = 1440mm
d
Stepped cut-out
e
Wooden frame (to be provided on
site)
f
Air duct connection – at the back
(ex-works)
g
Air duct connection – on the right
(conversion required)
h
Air duct connection – on the left
(conversion required)
