Miele KMDA 7634 FL - Worktop Depth 600 MM

Installation
*INSTALLATION*
76

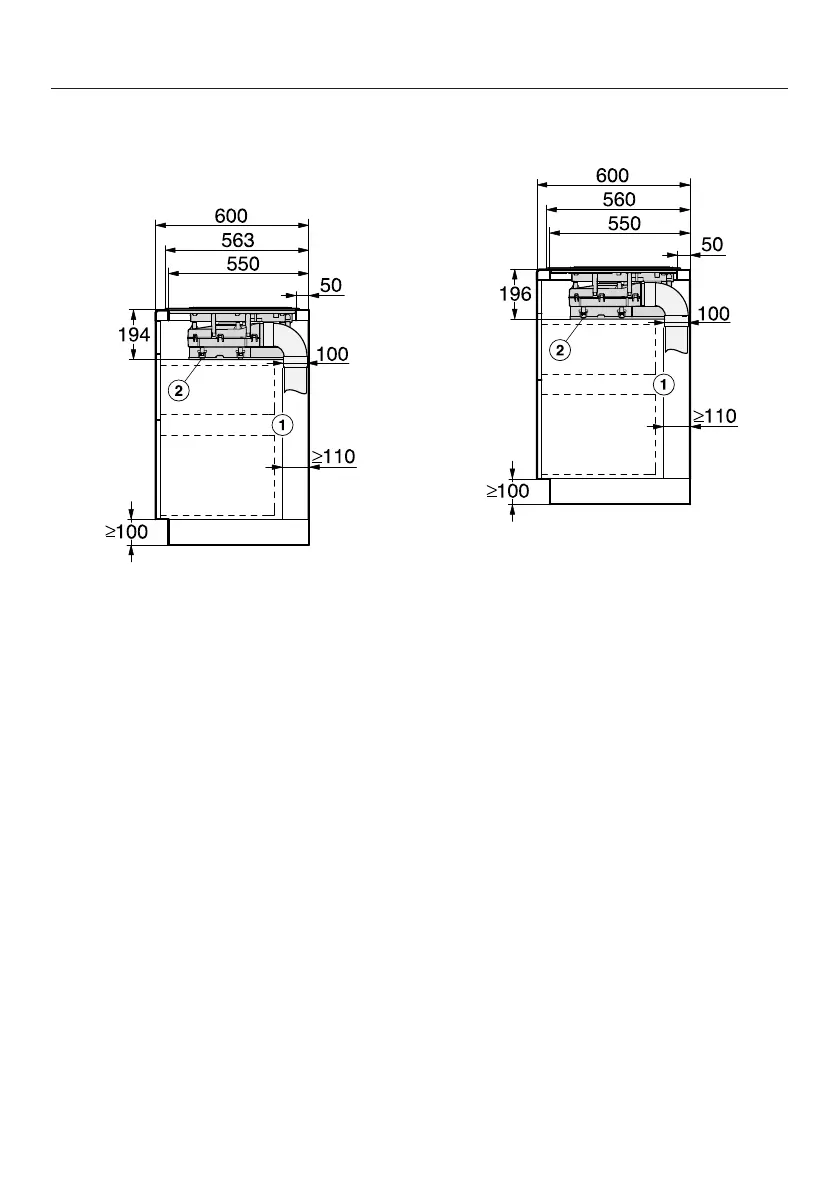

Worktop depth 600mm
KMDA7633FR, KMDA7634FR
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or a piece of furniture
must be at least 110mm apart to
ensure sufficient room for the
ducting.
b
Drip tray
After installation the removable drip
tray must be accessible from below.
KMDA7633FL, KMDA7634FL
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or a piece of furniture
must be at least 110mm apart to
ensure sufficient room for the
ducting.
b
Drip tray
After installation the removable drip
tray must be accessible from below.
