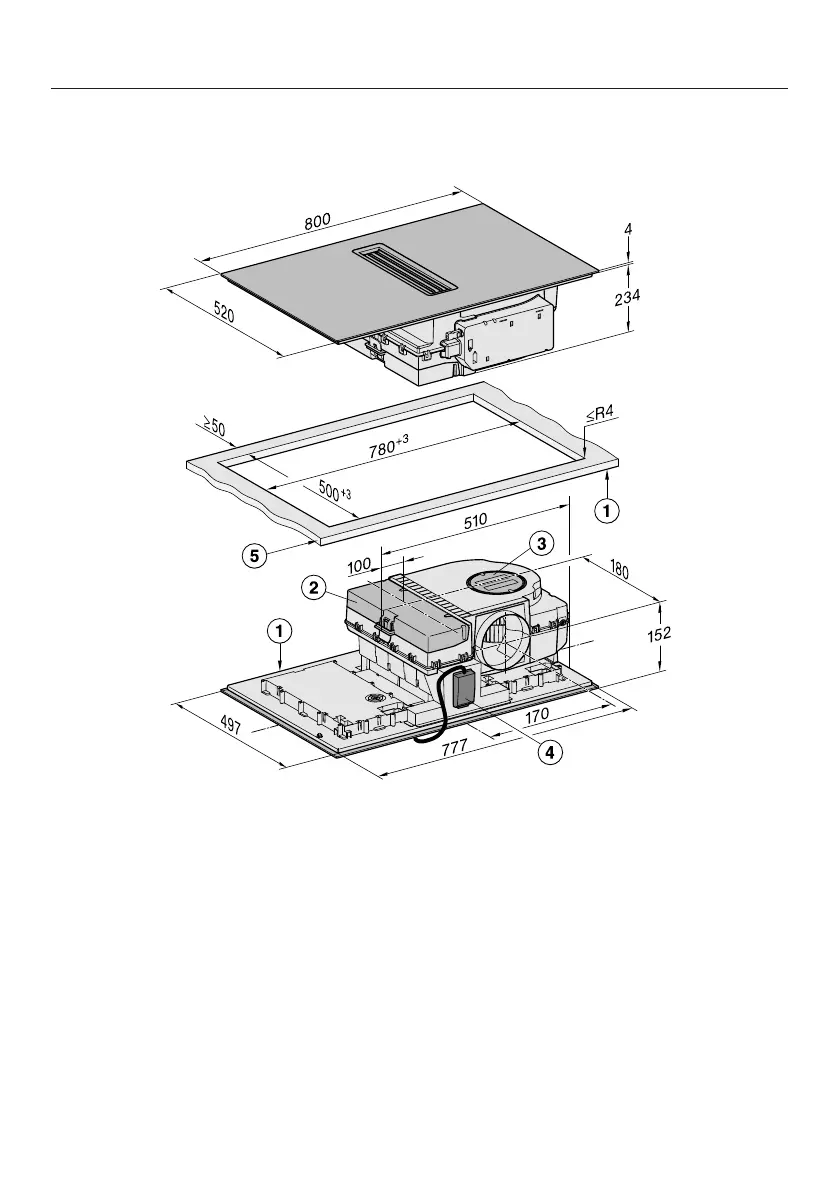

Building-in dimensions for surface-mounted installation
KMDA 7676 FL-A, KMDA 7676 FL-U
All dimensions are given in mm.
a
Front
b
Removable drip tray
c
Cleaning flap
d
Mains connection box with mains connection cable
Mains connection cable L=2000mm
e
Worktop thickness
Extraction and guided recirculation mode: ≥10mm
Plug&Play mode: ≥10mm–≤40mm
