Miele KMDA 7676 - Extraction and Guided Recirculation Mode with Flush-Fit Installation

Installation
*INSTALLATION*
91

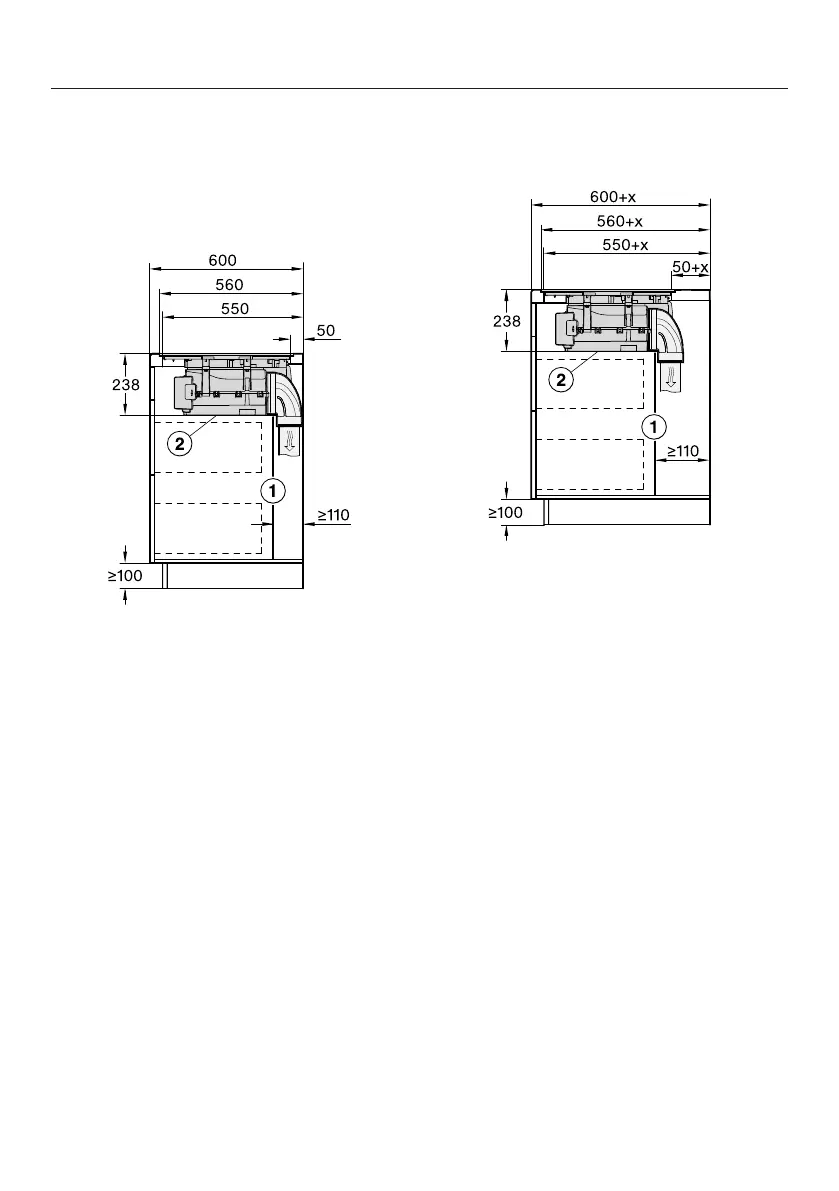

Extraction and guided recirculation
mode with flush-fit installation
Worktop depth 600mm
KMDA 7676 FL-A, KMDA 7676 FL-U
a
For maintenance work it must be
possible to remove the rear cabinet
wall.
The cabinet wall and an adjoining
room wall or a piece of furniture
must be at least 110mm apart to
ensure sufficient room for the duct-
ing.
b
The removable drip tray and the
cleaning flap must be accessible
after installation.
Worktop depth greater than 600mm
KMDA 7676 FL-A, KMDA 7676 FL-U
a
For maintenance work it must be
possible to remove the rear cabinet
wall.
The cabinet wall and an adjoining
room wall or a piece of furniture
must be at least 110mm apart to
ensure sufficient room for the duct-
ing.
b
The removable drip tray and the
cleaning flap must be accessible
after installation.
x Dimension of which the worktop is
deeper than 600mm.
