Installation
62
The front plinth panel is screwed to the rear panel and the rear plinth
panel is located under the machine cover and they are both to be
mounted after installation. The screws for this are in the accessory
pack.
Keep the struts in a safe place. They need to be reinstalled should
the machine ever need to be moved again.
Transport the machine on a pallet truck inside the room.
Do not move the machine until all casing parts have been installed.

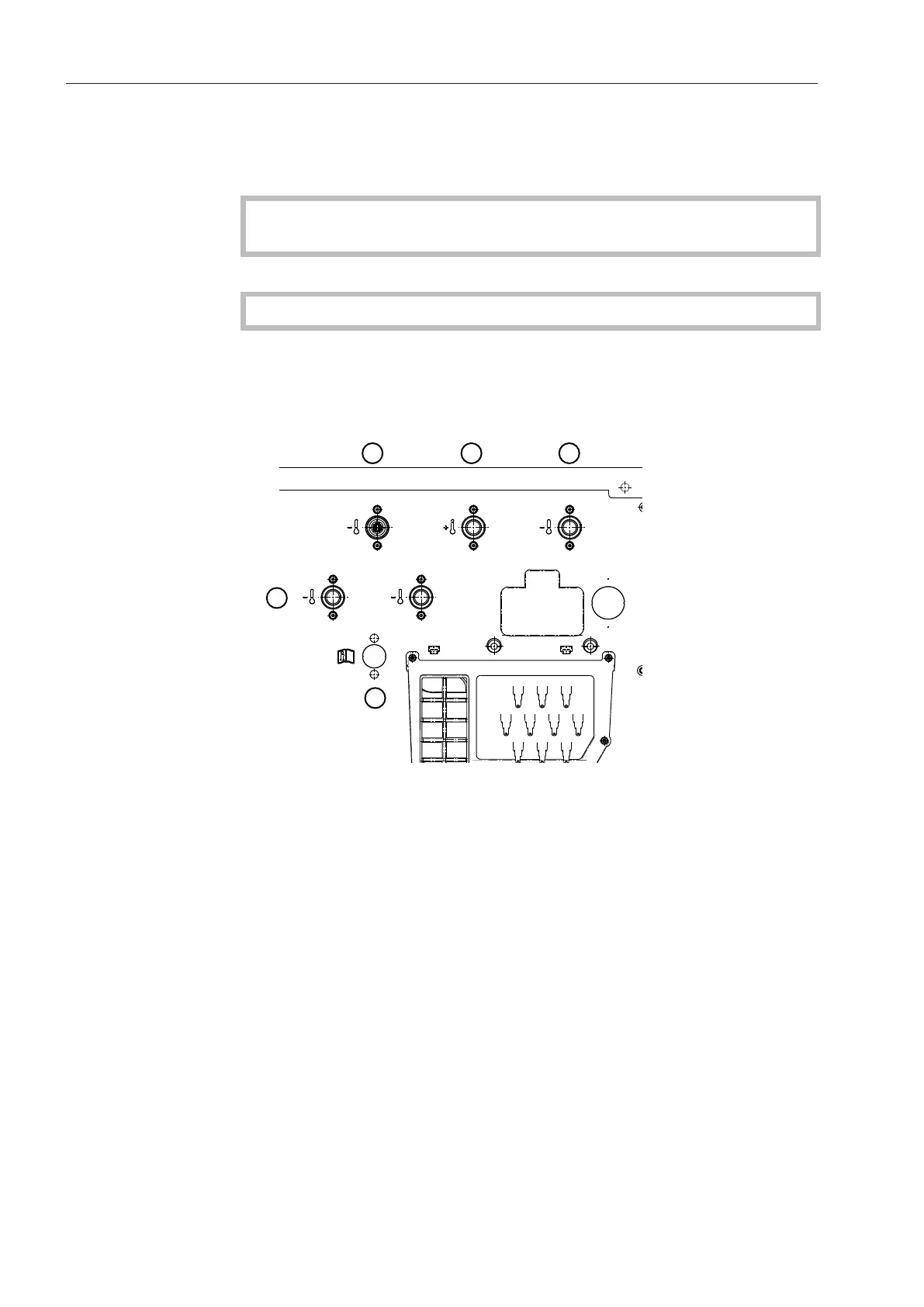

Water connection
Water connec-
tions
a
Cold water
b
Hot water
c
Hard water/cold water
d
Cold water for liquid dispensing
The connection to the supply line established in accordance with
DIN1988 must be made via a water shut-off valve. This installation
may only be carried out by an authorized installation technician in ac-
cordance with local and national regulations.
- Regulations set out by the responsible water supplier or regional
building regulations.
Connection to the
water inlet/
drainage
See the installation plan provided.
