Miele T1515 - 1.5 Layout of Components - T1515, T1520, T1526, T1565 C & T1570 C

Technical Information
7
T1500 Series Clothes Dryers
1.5 Layout of Components
T1515, T1520, T1526, T1565C & T1570C
A2 Door Lock
B3/1 Residual Moisture Sensor
B8 Float Switch (Condensate Water) (Condenser Models Only)
C2 Capacitor – Fan (Condenser Models Only)
C5 Capacitor – Condensate Fan Motor (Condenser Models Only)
F1 Temperature Limiters
H3/6 Lamp – Drum Interior
K1 Heater Relays
M2 Condensate Fan Motor (Condenser Models Only)
M13 Condensate Pump (Condenser Models Only)
M5 Motor – Drum Drive
1N1 Control Electronic
2N1 Power Electronic
R1 Heater Bank
R30 Temperature Sensor (NTC)
S1 Selector Switch
X3/1 Terminal Block
Z1 Interference Capacitor

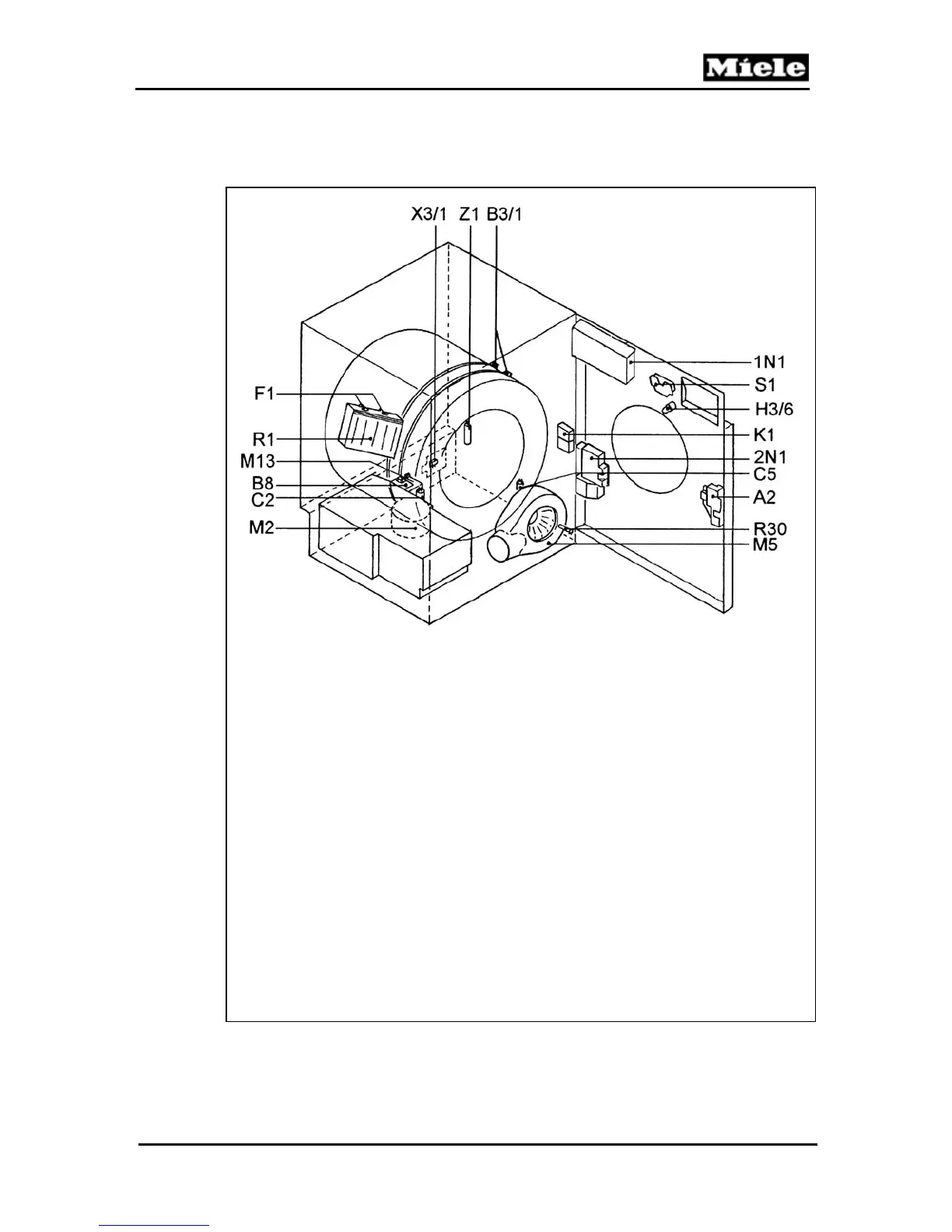

Figure 1-8: Layout of Components (T1515, T1520, T1526, T1565C & T1570C).
