T1500 Series Clothes Dryers
5.6 Control Electronic – Removal
T1515, T1520, T1526, T1565C & T1570C

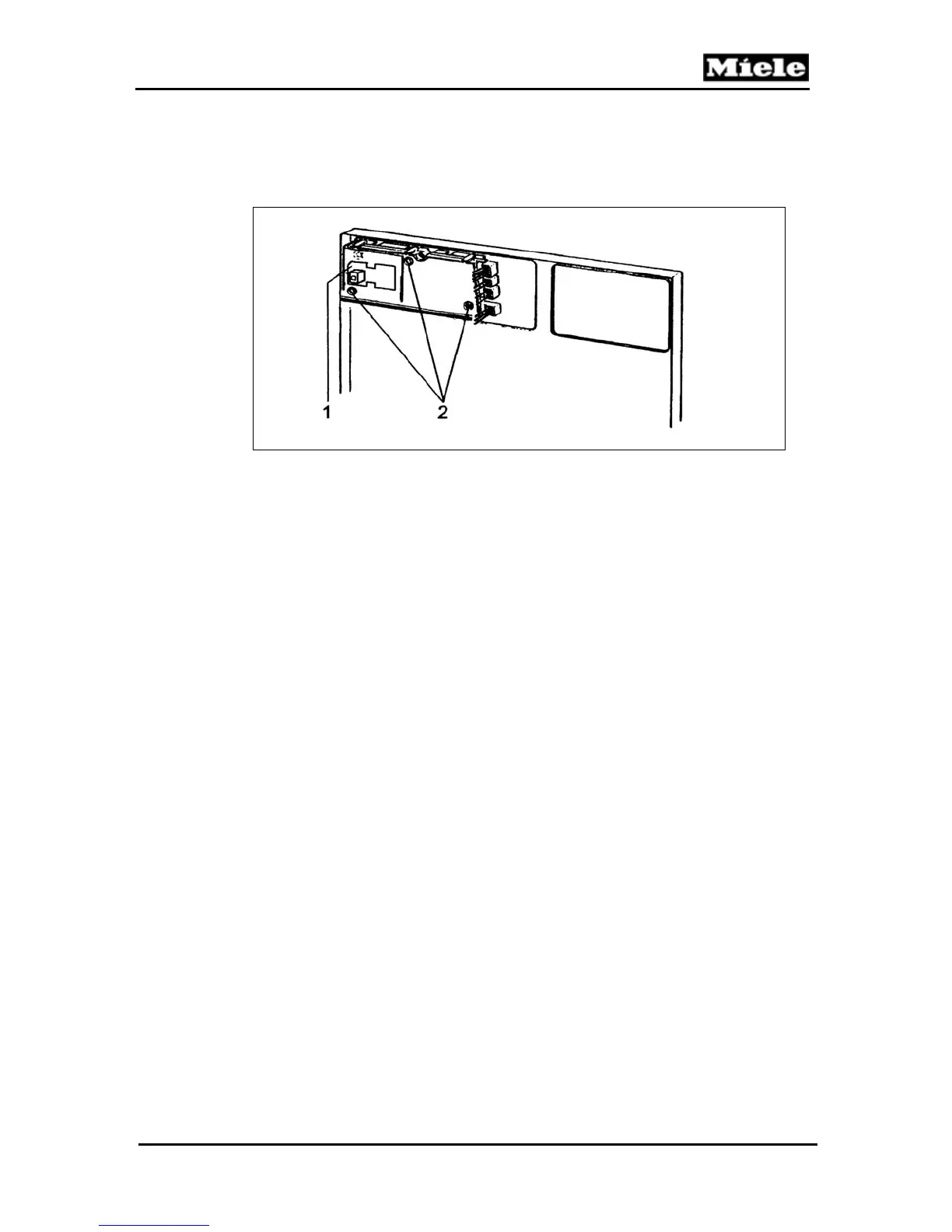

Figure 5-5: Control Electronic removal on T1515, T1520, T1526, T1565C
and T1570C Dryers.
Refer to figure 5-5.
1. Remove the Program Selector Knob.
2. Open the front panel (5.2 or 5.3)
3. Remove the three (3) screws (Item 2).
4. Disconnect the electrical connections
5. Remove the Control Electronic.
5.7 Control Electronic – Removal
T1576
1. Remove the Program Selector Knob.
2. Open the front panel (5.2 or 5.3)
3. Remove the Power Electronic (5.4 or 5.5)
4. Remove the three (3) screws that hold the Electronic.
5. Disconnect the electrical connections; remove the electronic.
