Technical Information
34
T1500 Series Clothes Dryers
5.10 Heater Bank - Access
1. Remove the Rear Drum Panel (5.9)
2. Remove the three (3) bolts from the Heater Bank Cover (Figure
5-8).
3. Lift the Heater Bank Cover to remove.

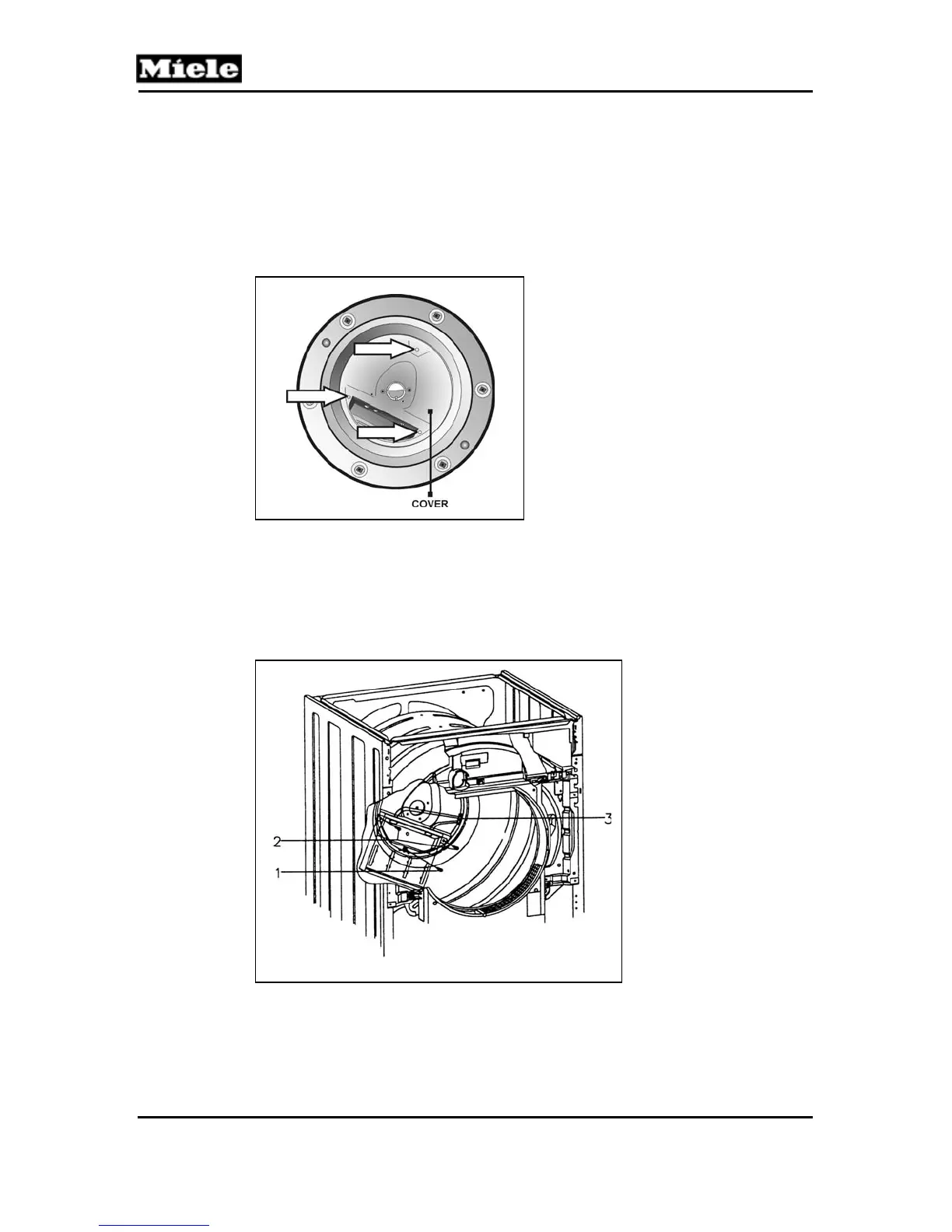

Figure 5-8: Heater Bank Cover retaining bolts.
Refer to figure 5-9.
4. Unscrew the heater bank retainers (Items 1 and 2).
5. Disconnect the electrical connections (Item 3).
6. Pull the Heater Bank upwards out of its duct.
Figure 5-9: Heater Bank removal.
