Miele T1515 - 1.0 Construction and Design

Technical Information
1
T1500 Series Clothes Dryers
1.0 Construction and Design
1.1 Appliance Overview – Vented
(Typical 5 Kilogram Vented Model Shown)

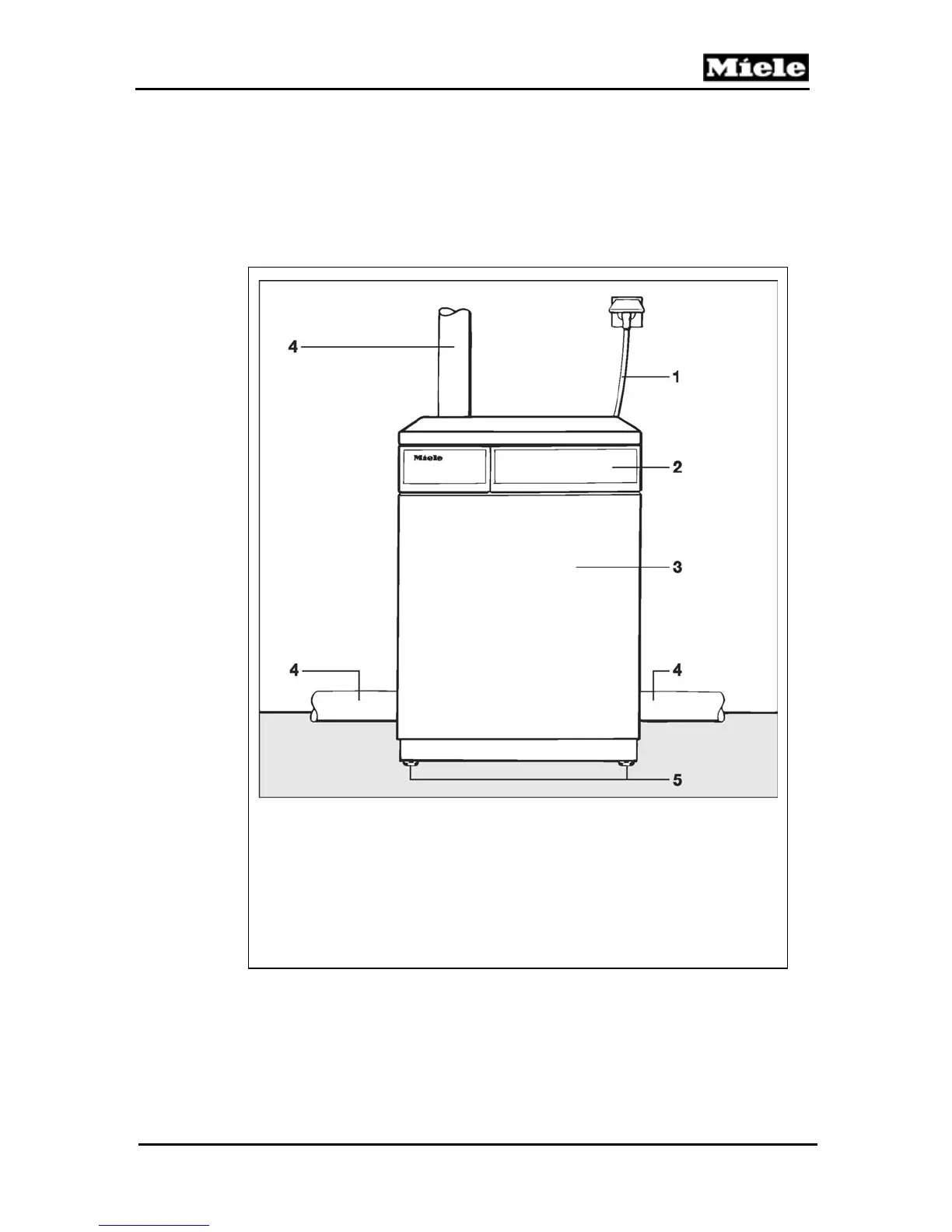

Figure 1-1: Appliance Overview T1500 series Dryer (Vented 5 K Model Shown)
1 Supply Cable / Plug
2 Control Panel
3 Drum Door
4 Exhaust Connection
(right, left & rear 5k vented) (left & rear 6k vented)
5 Adjustable Legs
