T1500 Series Clothes Dryers
5.2 Front Panel – Opening, Condenser Models
Refer to figure 5-1.
1. Remove the four (4 )screws (Item 3).
2. Remove the Condenser Drawer and unscrew the three (3)
screws (Item 4).
3. Press the spring clip (Item 2) down with the lid opener and open
the front panel.
5.3 Front Panel – Opening, Vented Models
1. Remove the left section of the fascia panel using a lid opener
(Figure 5-2 – Item 1).
2. Remove the four (4 ) screws (Figure 5-1 – Item3).
3. Remove the two (2) screws (Figure 5-1 – Item 4)
4. Press the spring clip (Figure 5-1 – Item 2) down with the lid
opener and open the front panel.

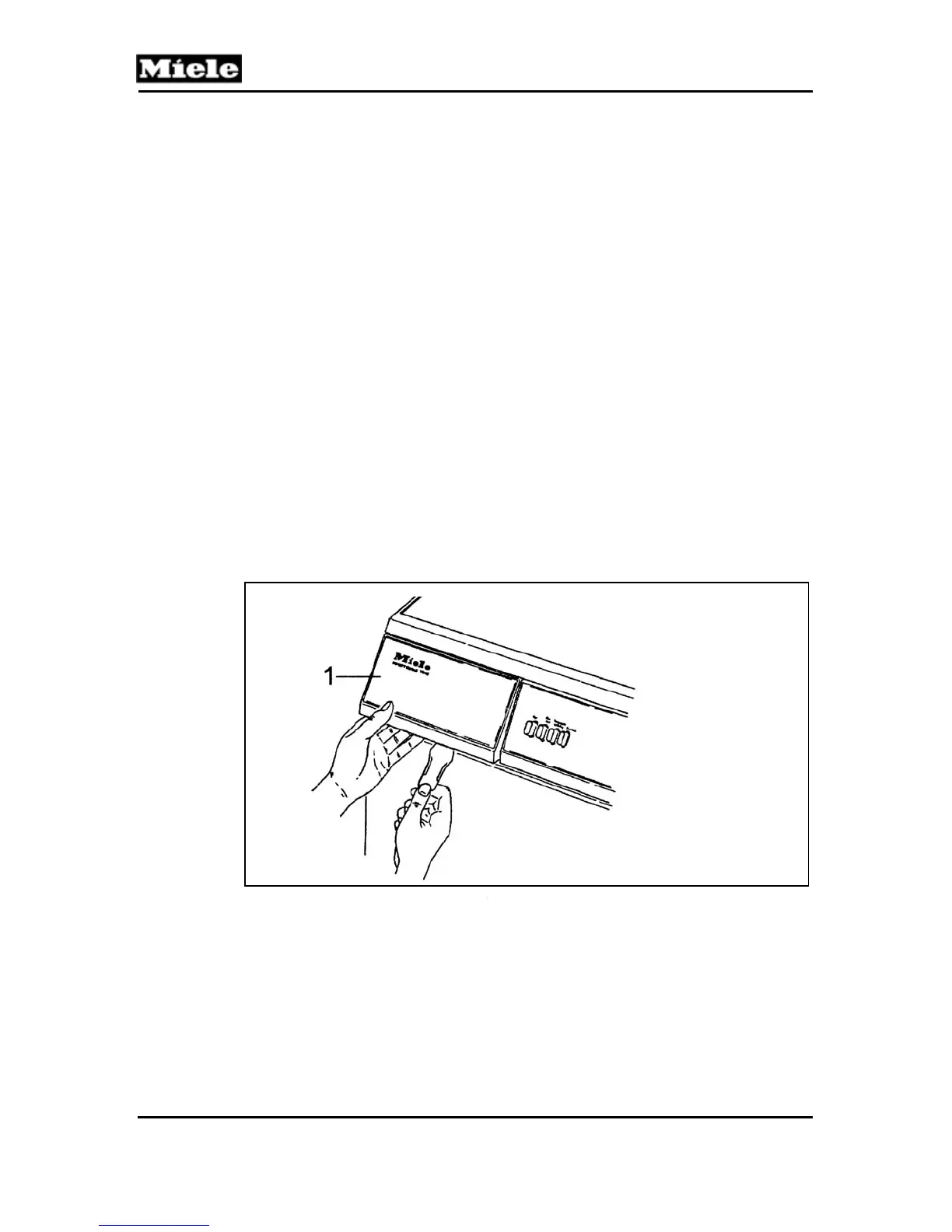

Figure 5-2: Removing the left section of the fascia panel.
