Technical Information
21
T1500 Series Clothes Dryers
The Fan Motor also provides direct drive to the Fan Impeller (Item
6) within the Fan Housing (Item 7). As the Fan Impeller rotates,
airflow is created and draws heated air from the Heater Bank,
across the drum and through the Filter(s). The air exiting the Fan
Housing (Item 7), is routed to the vent system; or through the Heat
Exchanger on Condenser Model Dryers.

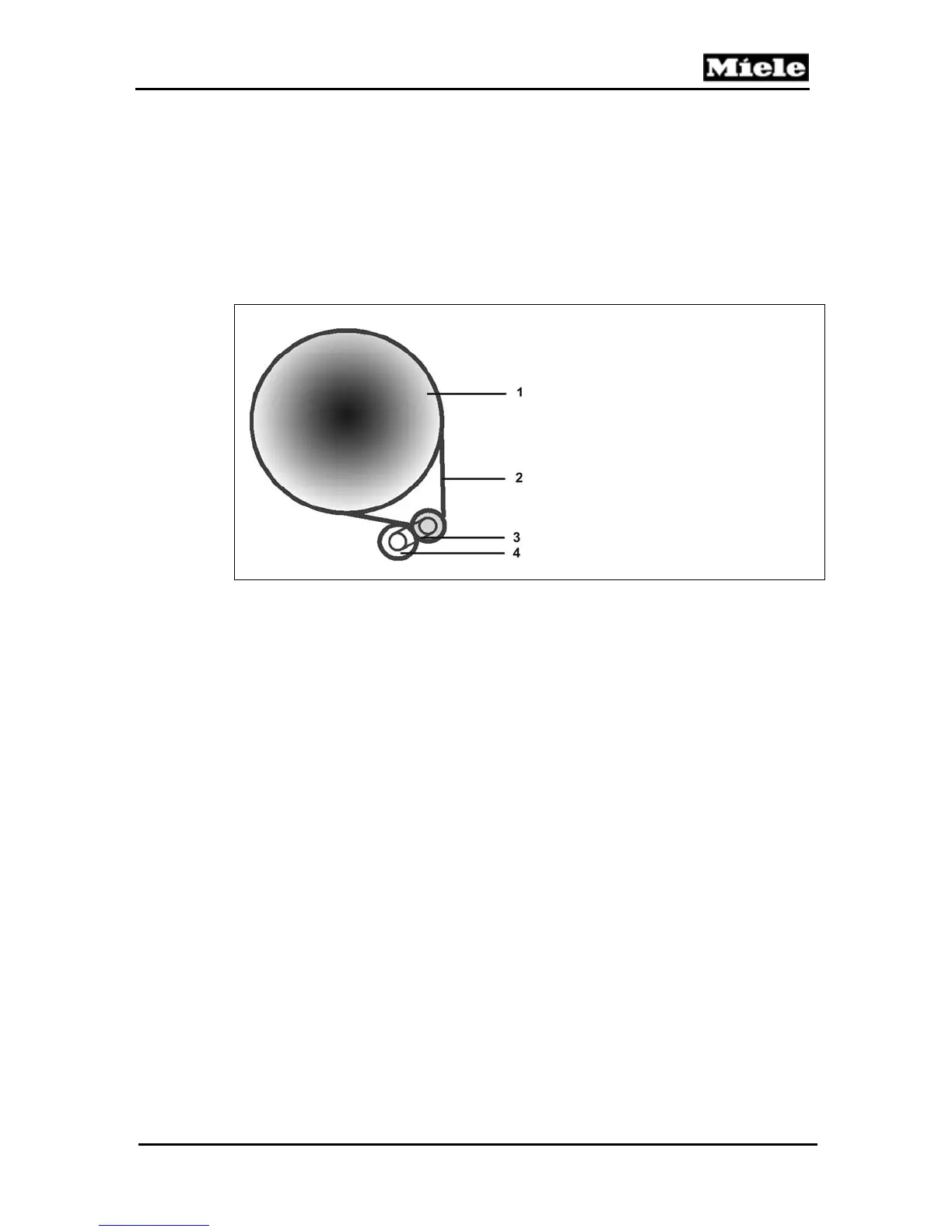

Figure 4-4: Drum Drive Belts and Reduction Pulley
1 Drum
2 Drum Drive Belt
3 Belt (Motor to Pulley)
4 Motor (M5)
