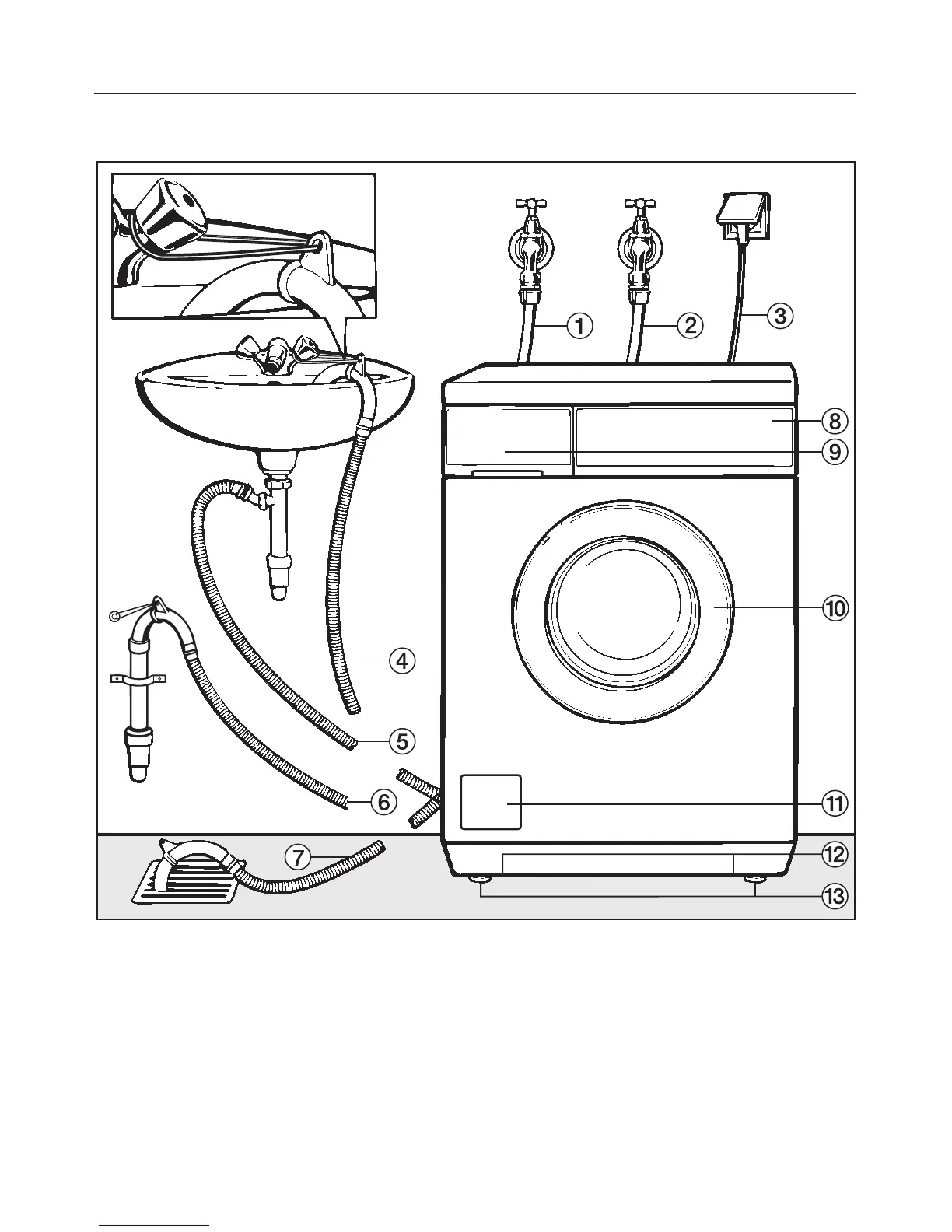

Front view
a Inlet hoses for hot water connection
b Inlet hoses for cold water connection
c Electrical connection
d - g Flexible drain hose (with detach
-
able swivel elbow)
h Facia panel with controls
i Detergent dispenser drawer
j Drum door
k Flap for fluff filter, drain pump and
emergency release
l Handle recesses for moving the ma
-
chine
m Four height adjustable screw feet
