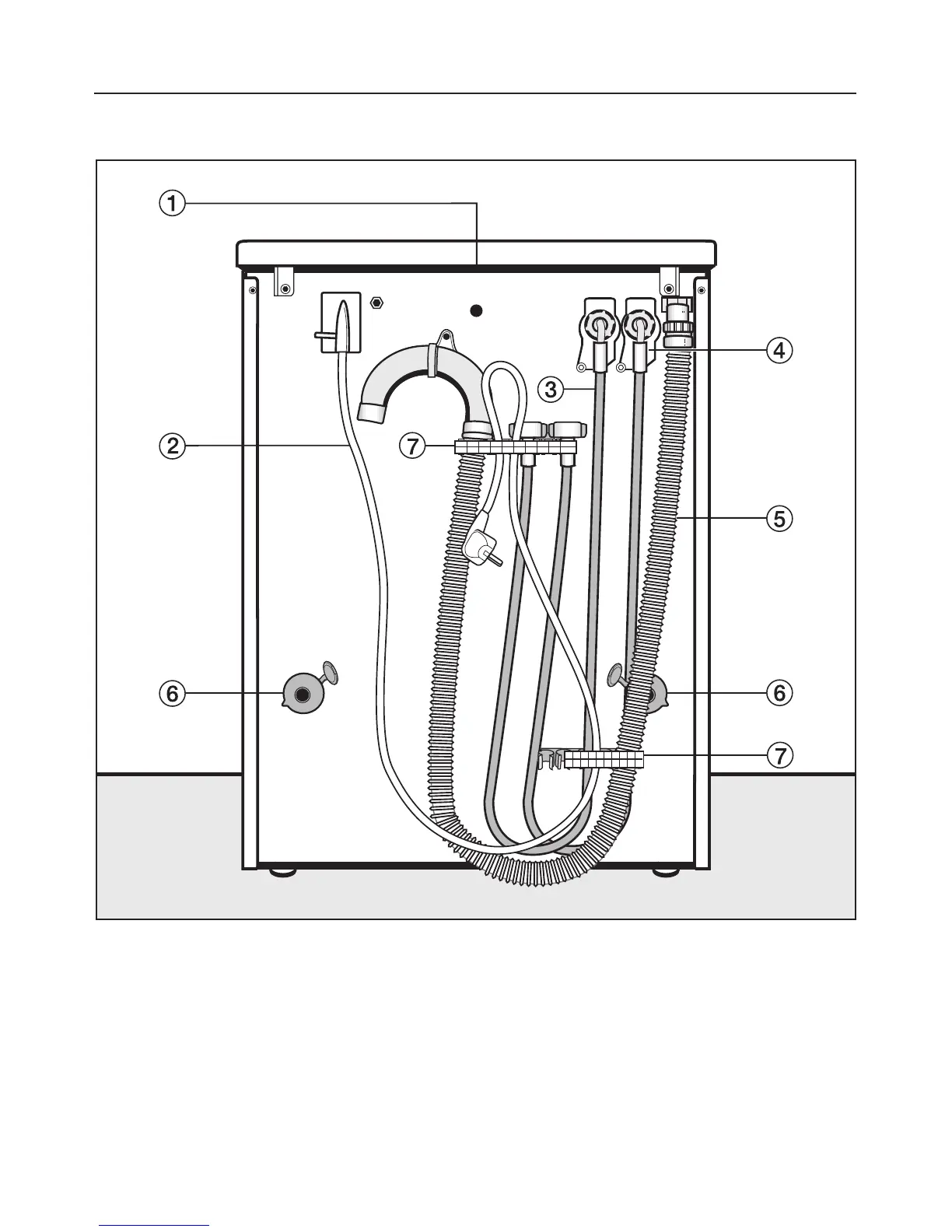

Rear view
a Protruding lid edge for holding when
moving the machine
b Electricity supply cable
c Inlet hoses for cold water connection
d Inlet hoses for hot water connection
e Drainage hose
f Cover with transit bars
g Restraining clip for:
–
Inlet hose
–
Drain hose
–
Electricity supply cable
–
Transit bars when removed
Installation and connection
46
