Installation and connection
72

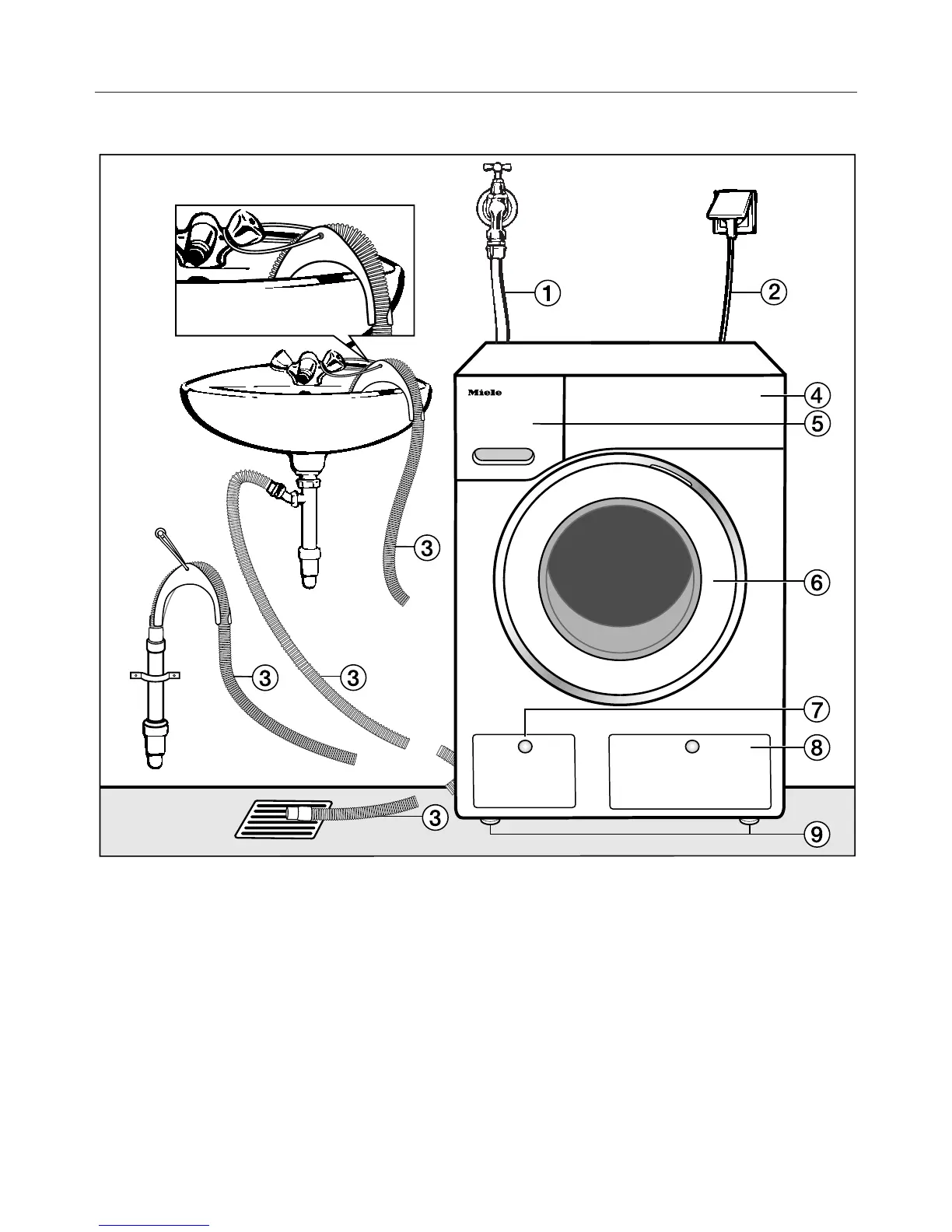

Front view
a
Inlet hose (tested to withstand
pressures up to 7000kPa)
b
Electrical connection
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to filters, pumps and
emergency release
h
Access panel for TwinDos cartridges
i
Four height-adjustable feet
