Installation and connection

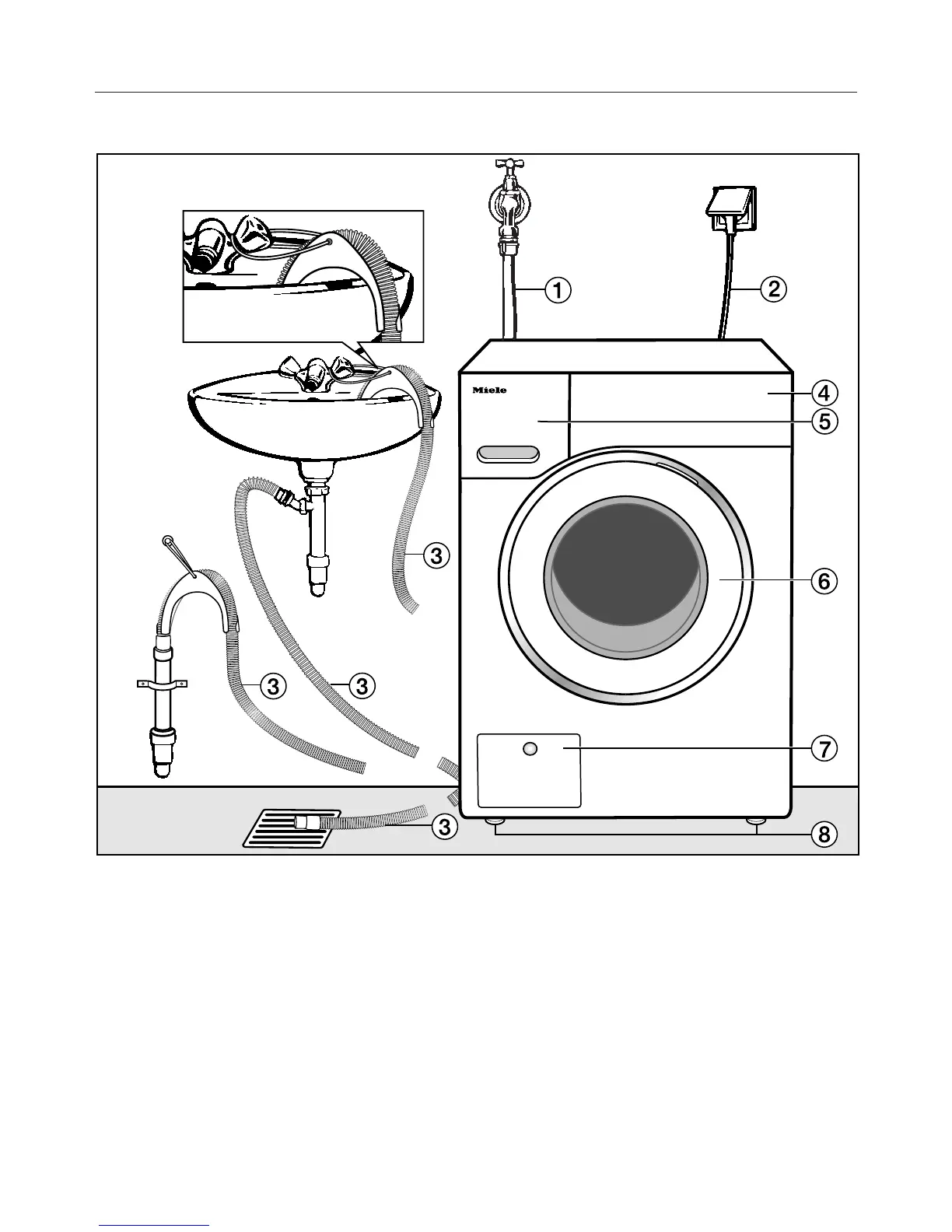

Front view

Inlet hose (tested to withstand

pressures up to 7000kPa)

Electrical connection cable

Flexible drain hose (with detachable

swivel elbow)

Control panel

Detergent dispenser drawer

Door

Access to drain filter, drain pump and

emergency release

Four height-adjustable feet
