Mighty Mule FM500 - Receiver Installation

22
FCC Regulation
This device complies with FCC rules Part 15.
Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept an interference that
may cause undesired operation.
Transmitter distance may vary due to circumstances
beyond our control. NOTE: The manufacturer is
not responsible for any radio or TV interference
caused by unauthorized modifications to
this equipment. Such modifications could
void the user’s authority to operate
the equipment.
10’
Max
1
Install Receiver within 10 ft of control box (longer lengths
available - call us). NOTE: NEVER splice receiver cable. DO
NOT run cable through metal conduit because the receiver
signal range will decrease. DO NOT run cable through conduit
containing AC wire. DO NOT place receiver within 3 feet of AC
power.
2
W
W

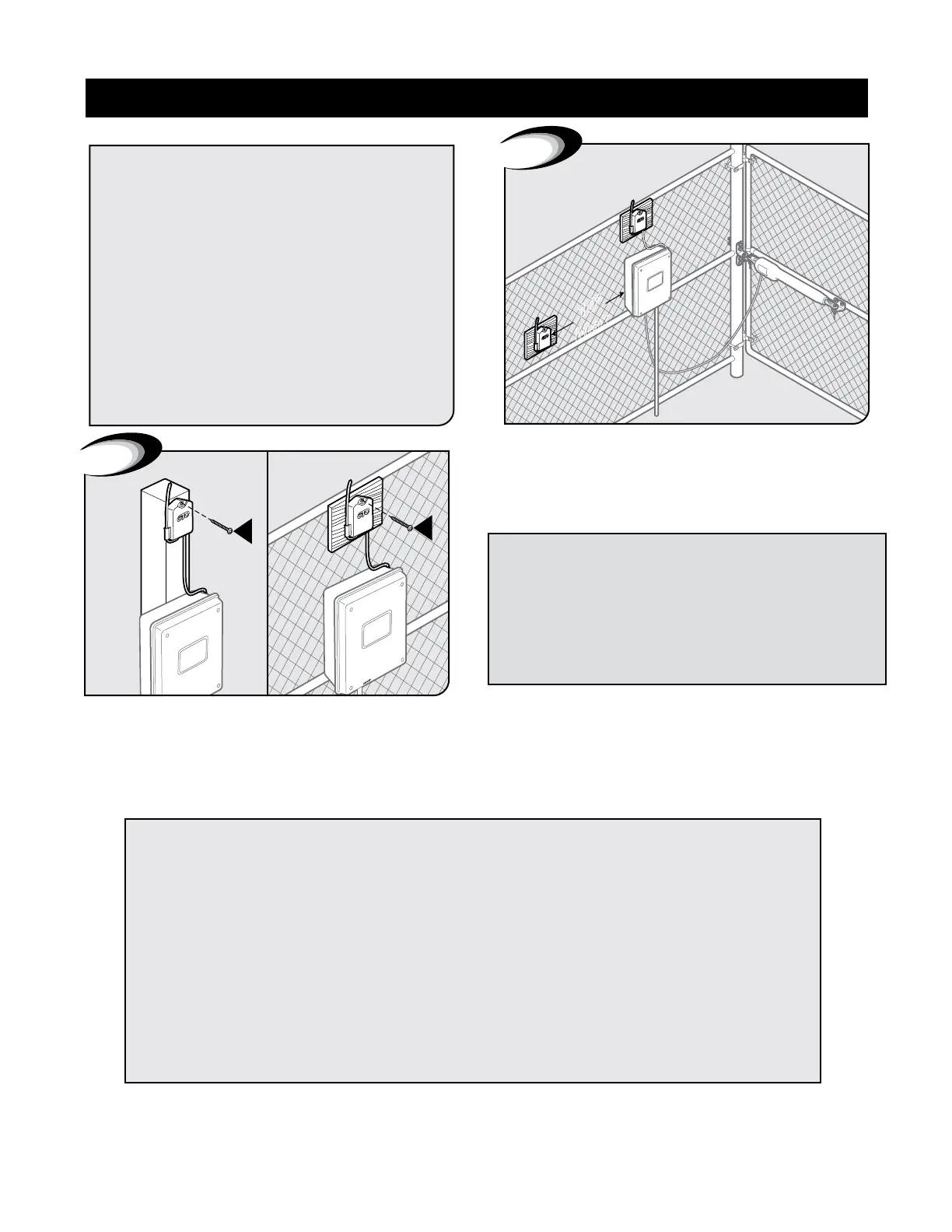

Check Receiver/Remote signal reception in mounted position/OK—
secure Receiver in position to fence or post. NOTE: If mounting
on metal fence, mount receiver on a piece of wood. Mounting the
receiver on metal can cause intereference and the receiver may not
work properly. DO NOT mount upside down.
Control Box Installation
Receiver Installation
Tips
1. Mount the receiver high and above any obstructions; fence
pickets, column caps, etc.
2. If radio control seems limited try moving the receiver 1-2 feet
in each direction to reduce radio noise “dead spots”.
Use the transmitter to check the range of the receiver before permanently mounting it.
Consider the following when mounting the receiver:
• Standard receiver cable length is 10 feet (receivers with a longer cable are available as special
order items; call the GTO Sales Department). NEVER splice receiver cable!
• Run the cable through PVC conduit to protect it from damage.
• DO NOT run cable through conduit containing AC wire.
• DO NOT place receiver within 3 feet of AC power.
• DO NOT coil excess cable or store it in the control box.
• Do not mount upside down.
• The receiver range can vary depending upon weather, topography, and external interference.
