Install the Closed Position Stop Plates
The closed position stop plate is attached to the FIRST gate to help stabilize the gate leaf in the closed position. An optional low
prole ground stop, when used with the closed position stop plate, provides a secure point for the SECOND gate to close against.
To further enhance the stability and security of your gate, install a Mighty Mule Automatic Gate Lock [FM143] page 35). If you
will be using the Mighty Mule Gate Lock with your gate opener system, the closed position ground stop is required.
For Pull-to-Open systems, install the closed position stop plates on the inside of the gates.
For Push-to-Open systems, install the closed position stop plates on the outside of the gates.
Step 1
Detach the gate opener arms from the gates and move the gates to the closed
position.
Step 2
Using appropriate hardware for your type of gate (U-bolts for tube or chain
link; screw or bolts for wood or metal) attach the closed position stop plate
(horizontally) about mid-height on the FIRST gate frame. Do not tighten
it completely at this time. Slide the stop plate toward the frame of the
SECOND gate leaf until they touch. Once you
have moved the stop plate to the correct position,
tighten its hardware completely.
Step 3
The low prole ground stop may be made of
metal or concrete and should be rmly secured
in the ground. The low prole ground stop
should be installed beneath the SECOND gate,
positioned near the leading edge.

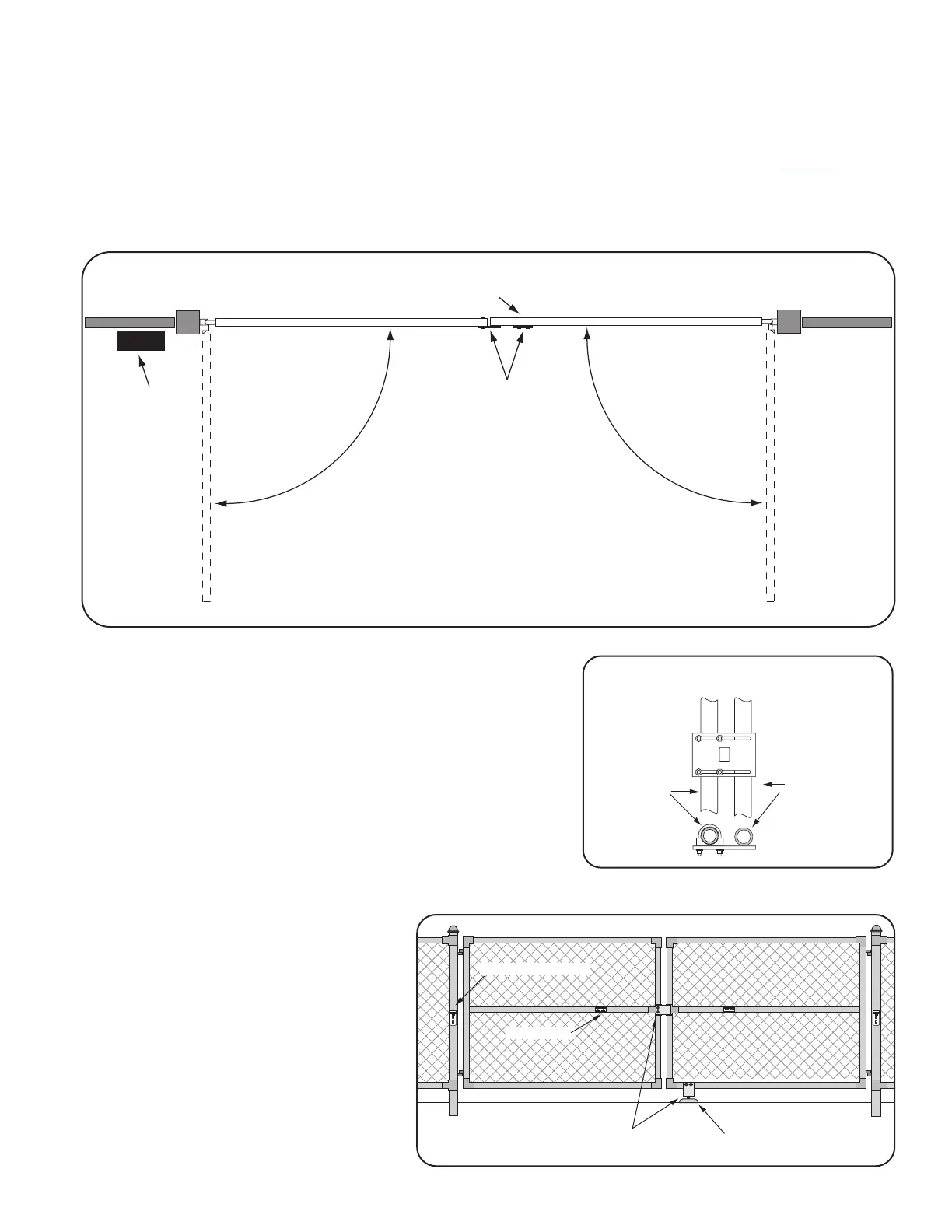

Closed Position
Stop Plates
CONTROL BOX
Optional Ground Stop
(beneath gate)
FIRST GATE SECOND GATE
Closed Position Stop Plate mounted
horizontally on metal post with U-bolts.
SECOND Gate Frame
FIRST Gate Frame
OVERHEAD VIEW
FACING VIEW
Closed Position
Stop Plates
Low Profile Ground Stop
(not included)
Post Bracket Assembly
Gate Bracket
