Mighty Mule MM272 - Parts List and Hardware

MM272 Installation Instructions 13

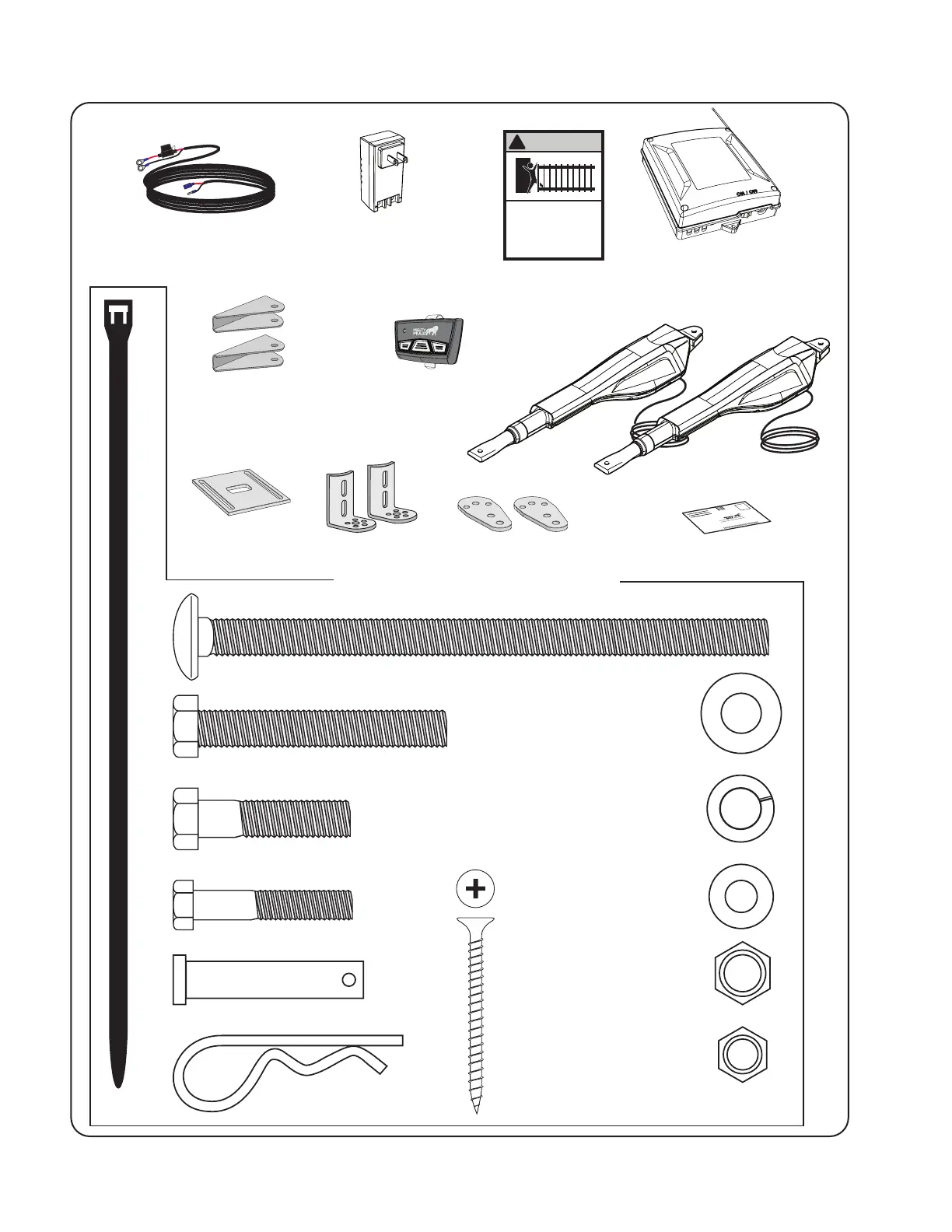

Parts List – Opener and Mounting Hardware
Hairpin Clip (4)
3/8" x 1-1/2" Clevis Pin (4)
5/16" x 1-1/4" Bolt (2)
3/8" x 1-1/4" Bolt (2)
3/8" x 2-3/4" Bolt (4)
3/8" x 8" Bolt (4)
8" Nylon Cable Tie (20)
3/8" Washer (14)
5/16" Washer (2)
3/8" Nut (10)
5/16" Lock Nut (2)
Hardware Bag Contents
Gate Opener (2)
Gate Bracket (2)
Post Pivot Bracket (2)
3/8" Lock Washer (10)
Literature Kit
Post Bracket (2)
Closed Position
Stop Plate (2)
2" Mounting Screw (3)
®
E-Z GATE OPENER
Transformer (1)
RP1012
Battery Wire
Harness with
15A fuse (1)
Warning Signs (2)
Transmitter(1)
MMT103
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
Control Box (1)
