Mighty Mule MM272 - Mount the Control Box

MM272 Installation Instructions 21

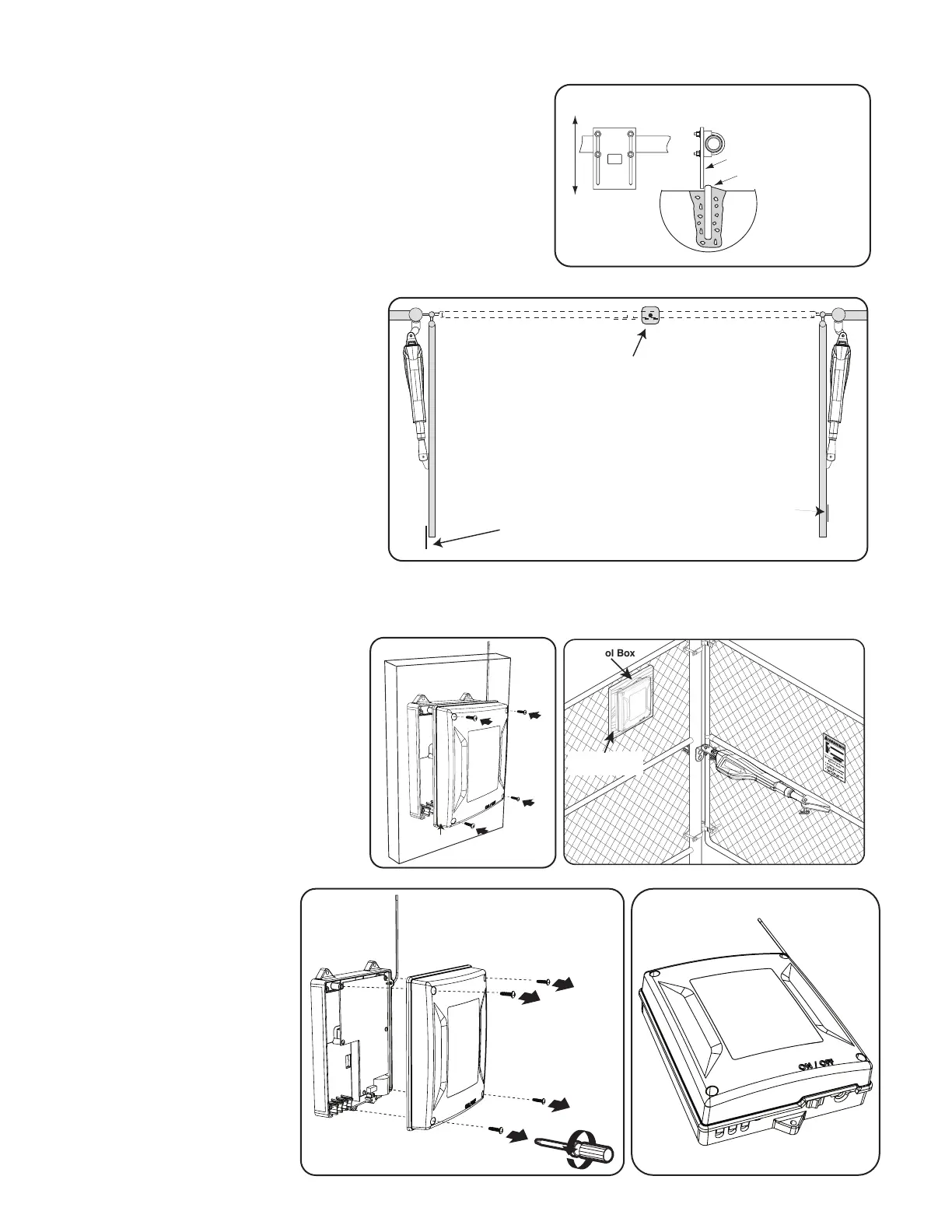

Mount the Control Box
Step 1
Mount the control box using the screws
(provided) or another secure mounting method.
The control box must be mounted at least 3
feet above the ground to protect it from rain
splash, snow, etc., and at least 6 feet from an
AC power source or solar to prevent electrical
interference.
NOTE: For optimal receiver range, mount box
so antenna extends above the top of the gate.
Step 2
Remove the control box cover by
removing the four (4) screws.
NOTE: Make sure the antenna is
pointed straight up.
Closed Position
Stop Plate
Low Prole Ground Stop
Closed Position
Stop Plate
Step 4
Using appropriate hardware for your type of gate, attach the vertical
closed position stop plate to the SECOND gate frame at the point where
it will come in contact with the low prole ground stop. Do not tighten it
completely at this time. You must slide the closed position stop plate toward
the low prole ground stop until they touch. Once you have moved the stop
plate to the correct position, tighten its hardware completely.
Step 5
Return the gates to their open positions and
reattach the gate openers to the gates.
Control Box
!
Control Box
Piece of Wood
for Mounting
Closed Position Stop Plate mounted
on the SECOND GATE
• •• • • • •• • • •• •• • •• • • • •• •• • •
• • • •• • • • ••• Ground Stop
•• •• • • • •• • • •• • • • • ••• ••• ••• • • • •
FACING VIEW
SIDE VIEW
• •• • ••• ••• •• • •••
