Setup the drum set
CAUTION!
To prevent electric shock and damage to the device, make sure the power is
switched OFF on the drum module and all related device before making any
connection.

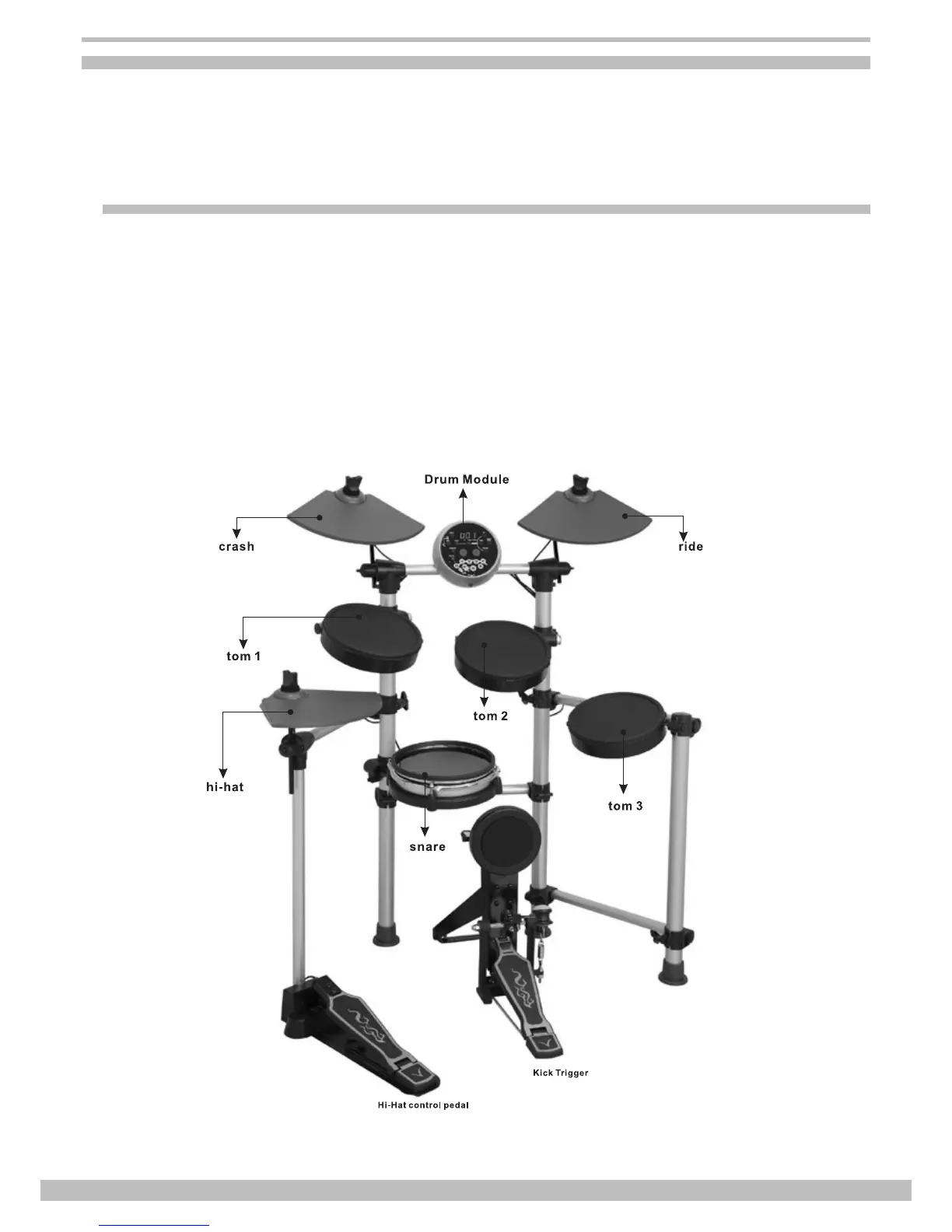

Connect the pads and the pedal
Connect with kick, snare, tom1~tom3, ride, crash, hi-hat, hi-hat control triggers using the cables provided.
The snare drum features a stereo input and supports double triggering (increase edge triggering); cymbal (ride
& crash), kick, tom, hi-hat are mono inputs that can’t response edge triggering. The Hi-hat pedal also has a
stereo input.
Note:
1. The voice of hitting the hi-hat pad is controlled by the hi-hat pedal. Similar to a real drum kit, the hi-hat
pad functions as an ‘open hi-hat’ when the pedal is released. When the pedal is stepped, it functions as a
‘closed hi-hat’.
2. The valid striking area of a cymbal pad (ride, crash or hi-hat) is half part of the pad on the player side,
which is different from other pads.
