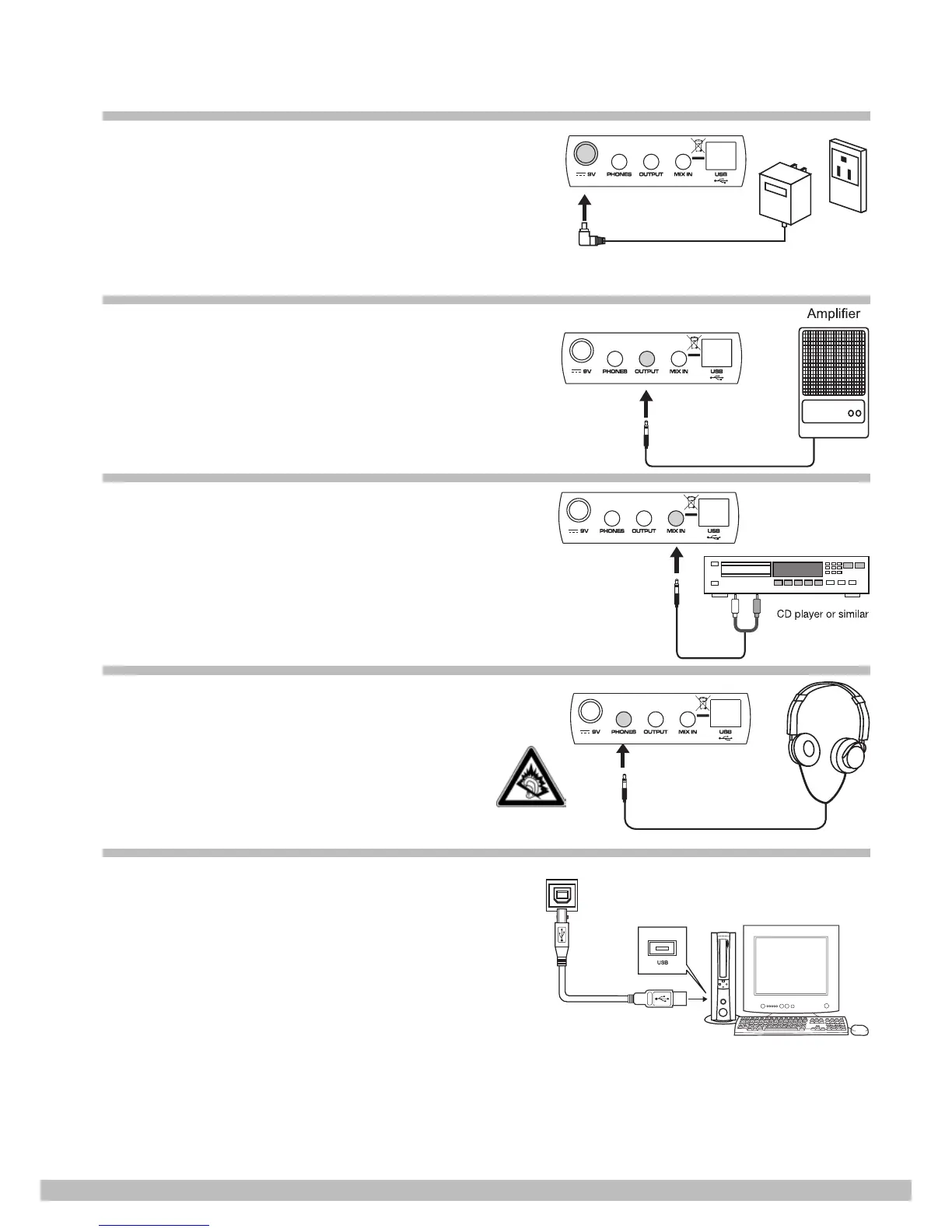

Connect the power supply jack
Make sure the power is switched OFF, then connect
the power adaptor with the DC jack on the rear panel.
1. To protect the speakers, amplier and the drum module
from damage, rotate the volume knob to the minimum
volume level before switching the power ON.
2. Make sure the power is switched OFF when
connecting the drum module to external devices.
Connect your audio equipment
If you want to listen to the drum voices with an
amplier, connect that amp to the OUTPUT jacks on
the rear panel.
Connect a CD player, etc.
The audio output of a CD player or other audio source
can be connected to the MIX IN jack on the rear panel
to mix it with the sound of the drum. This function is
convenient if you want to play along with a favourite
song.
Connect headphones
An optional set of stereo headphones can be
connected with the PHONES jack located on the rear
of the drum module.
CAUTION! Always adjust the volume to a comfortable
level! Listening to music with high sound pressure
level may cause permanent damage to your hearing!
Connect a MIDI and USB device
1. Connect a computer or other USB host devices that
supports USB Audio.
2. For devices with USB cable, you can choose “USB
Audio Device” in the device menu of the software
that transfers the midi data. The USB connection is
compatible with current operating systems. A driver is
not needed.
3. The drum module sends the MIDI data by hitting pads
or stepping pedal through USB port. But the data of
the click and song playing is not included. USB port
only sends and receives MIDI information.
Note:
Channel 11 is set as default percussion channel.
