OM-626 Page 9
SECTION 2 – SAFETY INFORMATION
mod1.1 2/93
Read all safety messages throughout this manual.
Obey all safety messages to avoid injury.
Learn the meaning of WARNING and CAUTION.
1 Safety Alert Symbol
2 Signal Word
WARNING means possible death
or serious injury can happen.
CAUTION means possible minor
injury or equipment damage can
happen.
3 Statement Of Hazard And Re-
sult
4 Safety Instructions To Avoid
Hazard
5 Hazard Symbol (If Available)
6 Safety Banner
Read safety blocks for each sym-
bol shown.
7 NOTE
Special instructions for best oper-
ation – not related to safety.
2
NOTE
ELECTRIC SHOCK can kill.
• Do not touch live electrical parts.
• Disconnect input power before
installing or servicing.
WARNING
READ SAFETY BLOCKS at start of
Section 3-1 before proceeding.
WARNING
5
4
6
7
1 2
CAUTION
MOVING PARTS can injure.
• Keep away from moving parts.
• Keep all panels and covers closed
when operating.
3
Turn Off switch when using high frequency.

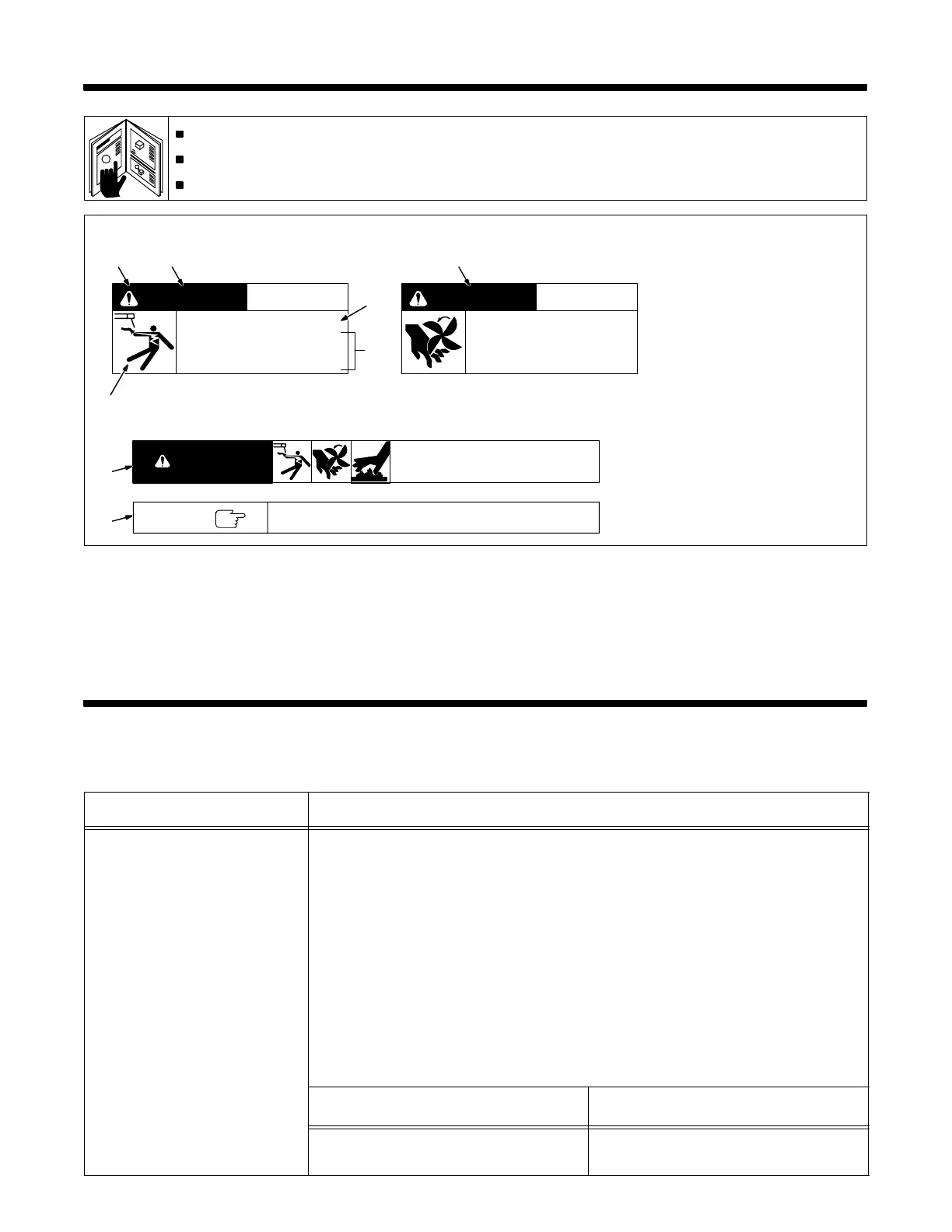

Figure 2-1. Safety Information
SECTION 3 – SPECIFICATIONS
Table 3-1. Coolant System
Specification Description
Welding Processes Gas Tungsten Arc (GTAW), And Gas Metal Arc Welding (GMAW)
Coolant Tank Capacity 1.5 gal (5.7 L)
Maximum Cooling Capacity 12,000 BTU/hr, 1.25 qt/min (1.2 L/min)
Input Power Cord With Plug 10 ft ( 3 m)
Overall Dimensions See Section 4-2
Weight Net: 48 lb (22 kg); Ship: 52 lb (24 kg)
Options See Rear Cover
115 Volt Model 230 Volt Model
Type Of Input Power Single-Phase, 115 Volts AC, 5.2 Amperes, 50/60
Hertz
Single-Phase, 230 Volts AC, 2.8 Amperes, 50/60
Hertz
To Next Page
