OM-542 Page 2

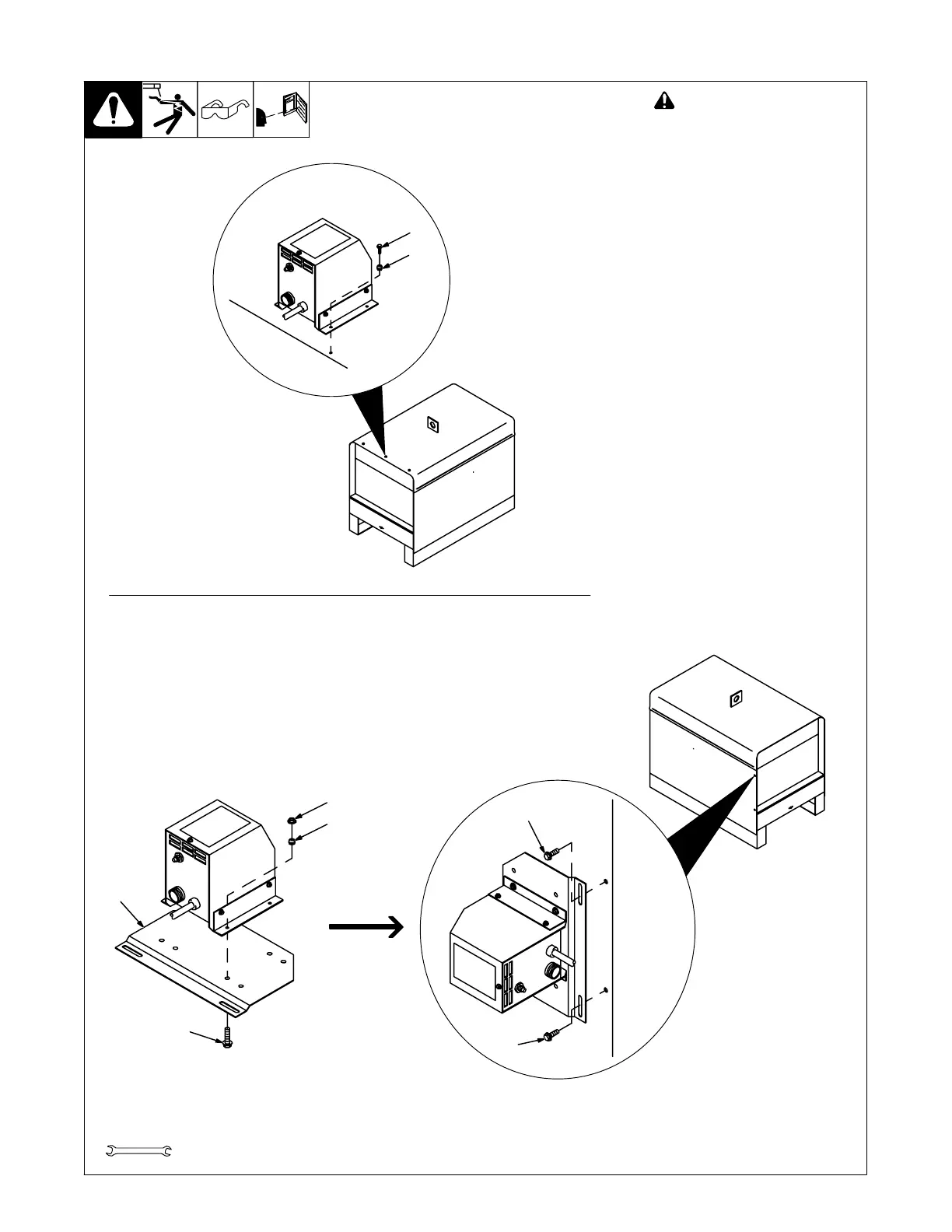

4. Installation Onto Welding Power Source
ST-159 574-A / ST-159 573-A
! Disconnect power before in-
stalling.
Mount adapter so it does not cover
labels or air louvers on welding
power source.
1 Screws From Welding Power
Source
2 Supplied Grommets
3 Bracket
4 Locking Nut
5 Supplied Screws
Top Mount:
Insert grommets into bracket, and
install adapter using one or two
screws as shown.
Side Mount:
Install bracket and insert grommets
into bracket. Install adapter as
shown.
Top Mount
Side Mount
2
1
3
2
5
4
1
1
Tools Needed:
3/8 in
To Next Page
