7-2. Replacing HDV Cover Lens
1
2
2
3
4
5
Never use the auto-darkening lens
without the inside and outside lens
covers properly installed. Welding
spatter will damage the auto-darken-
ing lens and void the warranty.

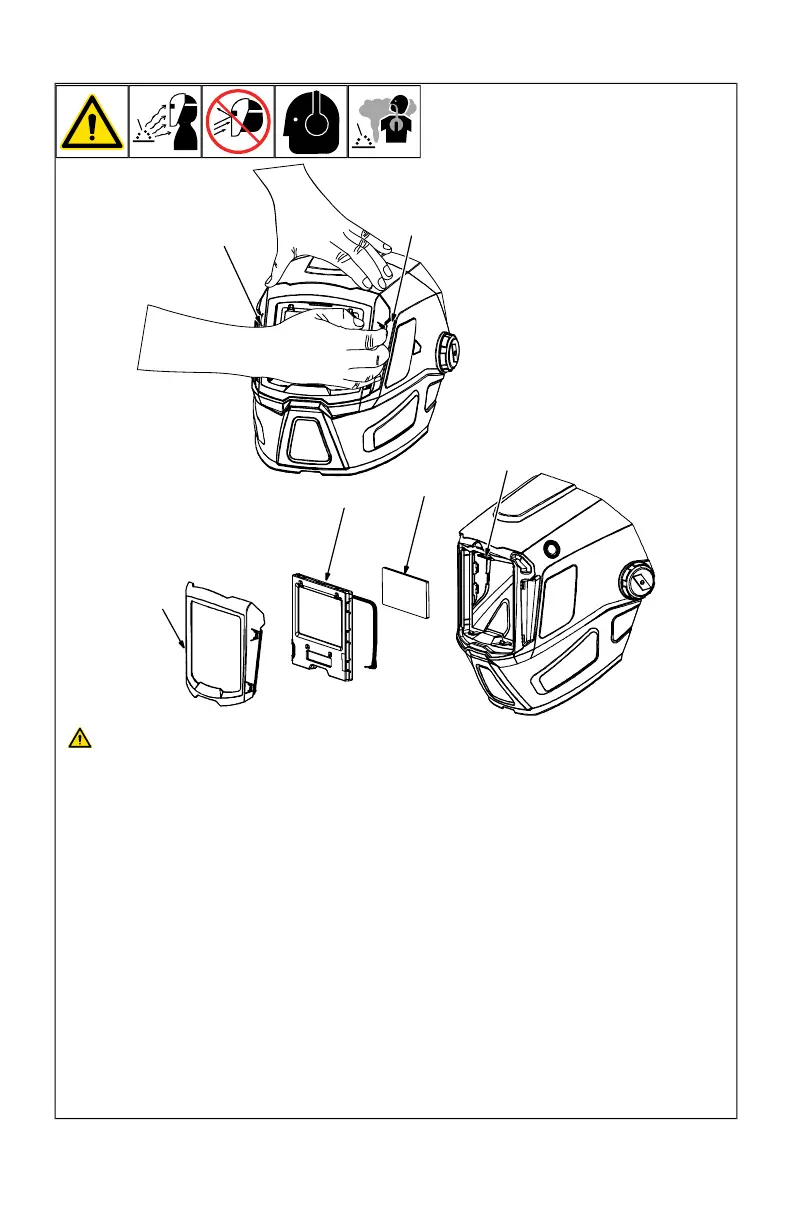

Outside Lens Cover
1 HDV Cover Lens
2 Cover Lens Release Points
Remove HDV cover lens by pulling the cover
lens away from the helmet on either side of
the lens.
Replace the HDV cover lens and reinstall in
helmet.
Inside Lens Cover
3 Auto-Darkening Lens
4 Inside Lens Cover
Remove the inside lens cover by pulling top
center of lens cover from lens holding
channels.
Replace the lens cover by gently bowing it in
the center and inserting it, one end at a time,
into the lens holding channels.
F
Be sure the cover lens is seated prop-
erly to prevent fogging.
Auto-Darkening Lens
5 Lens Release Tab
Remove lens holder and outside lens cover
using instructions above. Press up on lens
release tab and push auto-darkening lens
assembly from the inside to remove.
Replace the lens by aligning it on the re-
lease tabs and pressing it in until it snaps in-
to place.
