OM-254 449 Page 32
1 249 930 30 Amp Drag Shield (1)
2 249 937 40 Amp Machine Shield (1)
3 263 310 XT-Mach Torch, Shield Sense
Terminal w/Instruction (1)
4 249 932 30/40 Amp Retaining Cup (1)
5 249 927 30 Amp Tip (1)
6 249 928 40 Amp Tip (1)
7 249 931 30/40 Amp Swirl Ring (1)
8 249 926 30/40 Amp Electrode (1)
9 249 969 O-Ring (1)
Part
No.
Item
No. Description
See 7-7 for
additional consumable parts.
Ref. 264 954-A
1
2
3
4
5
6
7
8
9

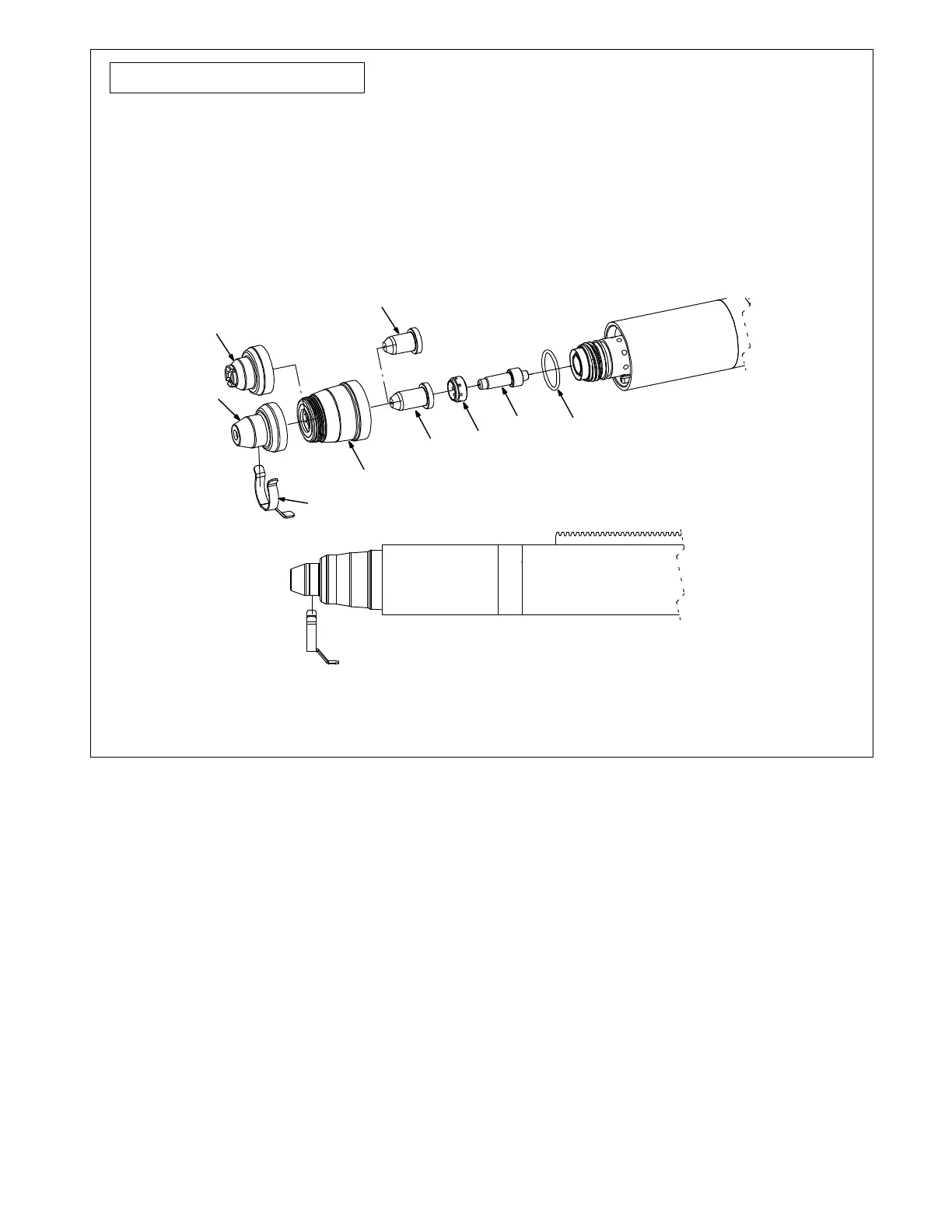

Figure 7-9. Consumable Parts For XT40M
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
