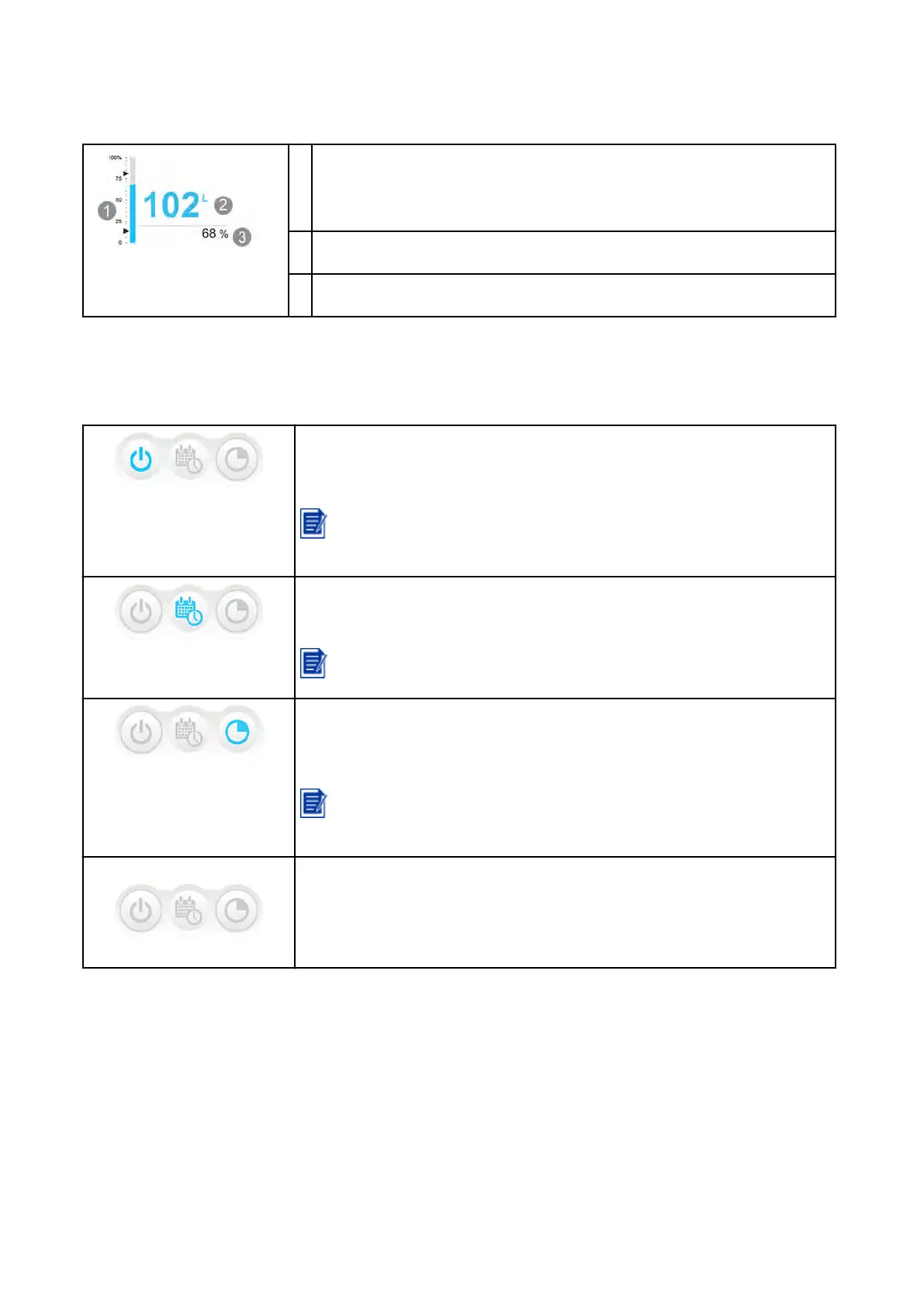

C2: Measures from the Storage process
1 Bar graph showing tank level in %.
• Top arrow indicates Tank Filling Restart setpoint
•
Bottom arrow indicates TANK EMPTY alarm setpoint
2
Displays volume of water in the Tank in a user defined unit.
3
Displays tank level in %.
C3: Distribution process.
The distribution can be in the following modes:
Distribution in Forced mode:
Distribution process is forced to ON. Distribution loop in this
mode is always recirculating.
Note: This function can be used to refresh the water from
the distribution loop, for example after a loop sanitization
or prior a sampling procedure use.
Distribution in Scheduled mode:
The Distribution is activated based on defined schedule.
Note: It is recommended to activate this mode for normal
use of the system and distribution loop.
Distribution in Auto-recirculation mode:
An automatic recirculation occurs once every hour (15 to 60
min/h depending on the software configuration).
Note: It is recommended to activate this mode when the
System and distribution loop are not used for a period of
time.
Distribution is Inactive :
The system is not managing a distribution loop or the
distribution loop is managed by a primary.
20 | System Display
