PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION

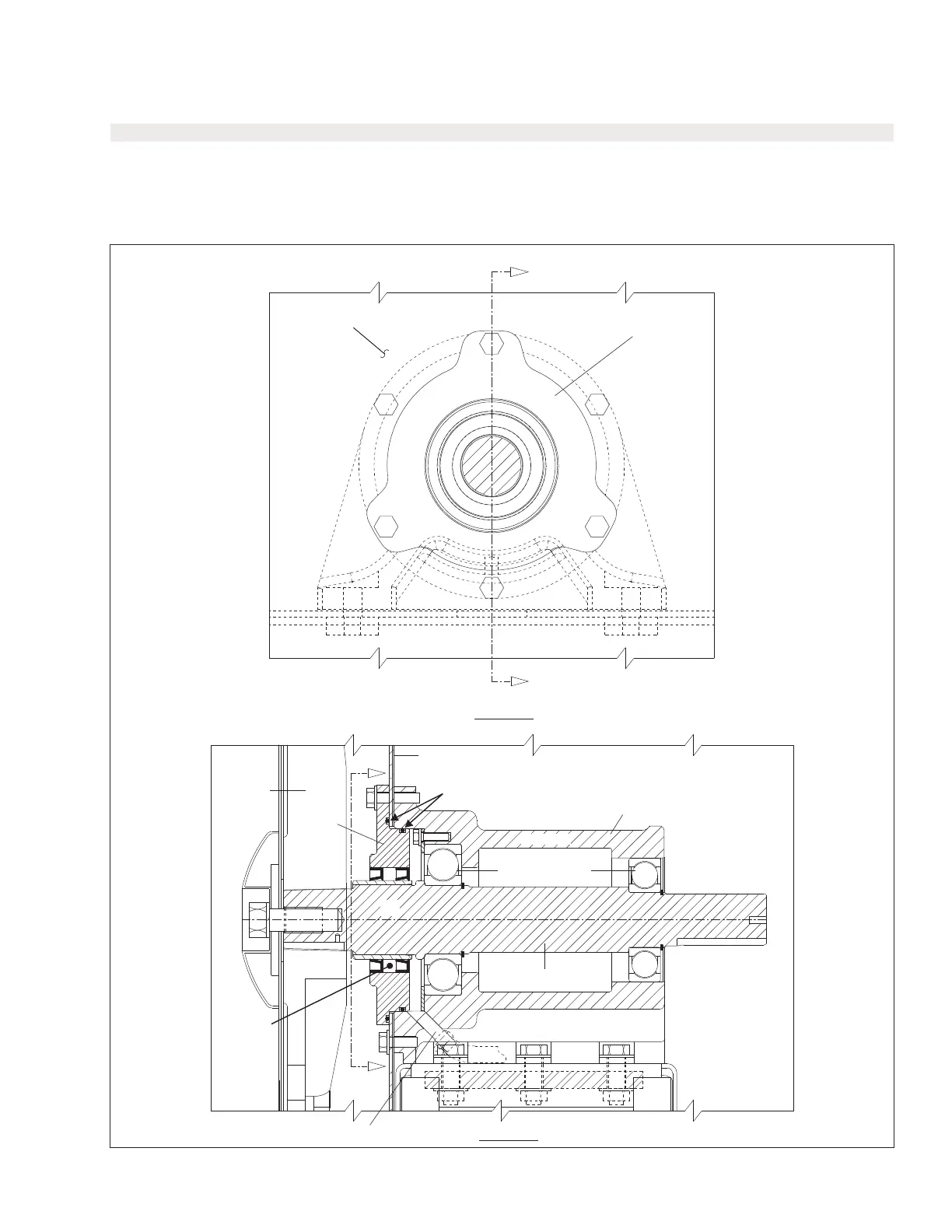

Bearing Assembly & Installation
MCR12E5, MCR16E5, MCR18E4, MWR12E/X/J5, MWR16E/X/J5, MWR18E/X4
MCT12E5, MCT16E5, MCT18E4, MWT12E/X/J5, MWT16E/X/J5, MWT18E/X4
SHELL BACK
WATER SEAL
HOLDER
VIEW A-A
B
B
VIEW B-B
CYLINDER
BACK
PLATE
3
1
2
WATER
SEAL
HOLDER
A
SHELL BACK
SHAFT
SEALED
BALL BEARINGS
A
LEAK OFF
Lubricate the O-rings with the
approved grease before installation
4
BEARING
Fully fill the
area between
the seals with
the approved
grease
4
BMP060001/2017033A
60
