Milnor MCT12E5 User Manual
4
of 1
of 1 rating
121 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page
(1
/
2)
PELLERIN
MILNOR
CORPORA
TION
PELLERIN
MILNOR
CORPORA
TION
BMP050004/2016533A

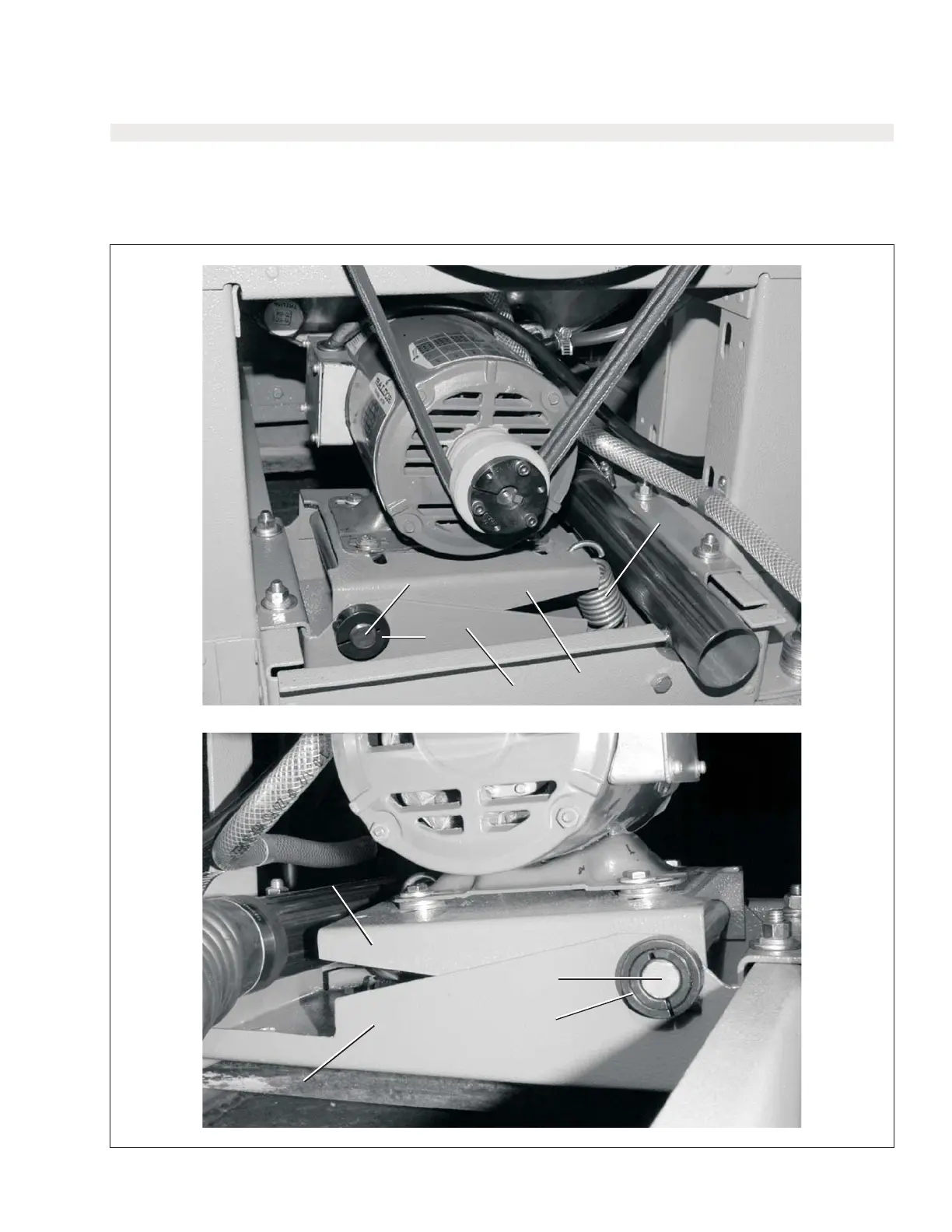

Motor
Mount
1
5
4
3
2
5
4
2
1
MCR12E5,
MCR16E5,
MCR18E4,
MWR12E/X/J5,
MWR16E/X/J5,
MWR18E/X4,
MWR18J6
MCT12E5,
MCT16E5,
MCT18E4,
MWT12E/X/J5,
MWT16E/X/J5,
MWT18E/X4,
MWT18J6
57
60
62
Table of Contents
Contents
3
Important Safety Instructions
5
Safety—Rigid Washer Extractors
6
Limited Standard Warranty
11
How to Get the Necessary Repair Components
12
Trademarks
13
Safety Placard Use and Placement - MCR12E5, MCR16E5, MCR18E4, MCR27E5, MCR36E4, MCT12E5, MCT16E5, MCT18E4, MCT27E5
14
Safety Placard Use and Placement MWR12E5, MWR16E5, MWR18E4, MWR18X4, MWR18J4, MWR27E5, MWR36J4, MWT12E5, MWT16E5, MWT18E4, MWT18X4, MWT18J4, MWT27E5
16
Guards and Covers
18
About the Forces Transmitted by Milnor® Washer-extractors
20
Installation Tag Guidelines - MCR & MCT Series Machines
22
Installation Tag Guidelines - MWR & MWT Series Machines
24
Prevent Damage from Chemical Supplies and Chemical Systems
27
Handling and Setting Procedures for Rigid Mount Washer-Extractors
32
Service Connections
35
1. Service and Maintenance
39
Preventive Maintenance
40
Motor Maintenance
45
Torque Requirements for Fasteners
49
2. Drive Assemblies
57
Drive Chart
58
Motor Mount
61
3. Bearing Assemblies
63
Bearing Assembly MCR/MCT12E5,16E5,18E4 ; MWR/MWT12E/X/J5,16E/X/J5,18E/X/J4
64
Bearing Assembly MWR18X6,J6; MWT18X8,J6
66
4. Shell and Door Assemblies
69
Servicing the Door to Open it with Power Off or with a Malfunctioning Door Lock
70
Door Assembly and Installation MCT12E5,16E5,18E4; MWT1212E/X/J, MWT16E/X/J5, MWT18E/X4, MWT18J6
75
Door Lock Mechanism
78
Door Handle and Lock Actuator
81
5. Control and Sensing
85
Coin Acceptor & Vault
86
Level Switch
88
Vibration Safety Switch Adjustments
90
Vibration Safety Switch
92
6. Chemical Supply
93
Soap Chute for Coin
94
Soap Chute for E-P One-Touch®
97
Soap Chute for E-P Express® and E-P Plus ® Controllers
99
7. Water and Drain
101
Water Inlets MCR/MCT12E5, MCR/MCT16E5, MCR/MCT18E4
102
Water Inlets MWR/MWT12E/X/J5, MWR/MWT16E/X/J5, MWR/MWT18E/X4, MWR/MWT18J6
104
Drain Installation
106
8. Dimensional Drawings
109
Dimensional Drawing - MCT12E5, MWT12X5
111
Dimensional Drawing - MCT16E5, MWT16X5
112
Dimensional Drawing - MCT18E4, MWT18E4
113
Dimensional Drawing - Pedestal for (1) MWT12E5/X5/J5
114
Dimensional Drawing - Pedestal for (2) MWT12E5/X5/J5
115
Dimensional Drawing - Pedestal for (4) MWT12E5/X5/J5
116
Dimensional Drawing - Pedestal for (1) MCR16E5, MWT16E5/X5/J5
117
Dimensional Drawing - Pedestal for (1) MCR/MWR/MWT18E4,X4,J4,J6
119
Dimensional Drawing - Pedestal for (2) MCR/MWR/MWT18E4,X4,J4,J6
120
Dimensional Drawing - Pedestal for (4) MCR/MWT/MWT18E4,X4,J4,J6
121
