Servicing the Door to Open it with Power Off or with a Malfunctioning Door Lock
PELLERIN MILNOR CORPORATION

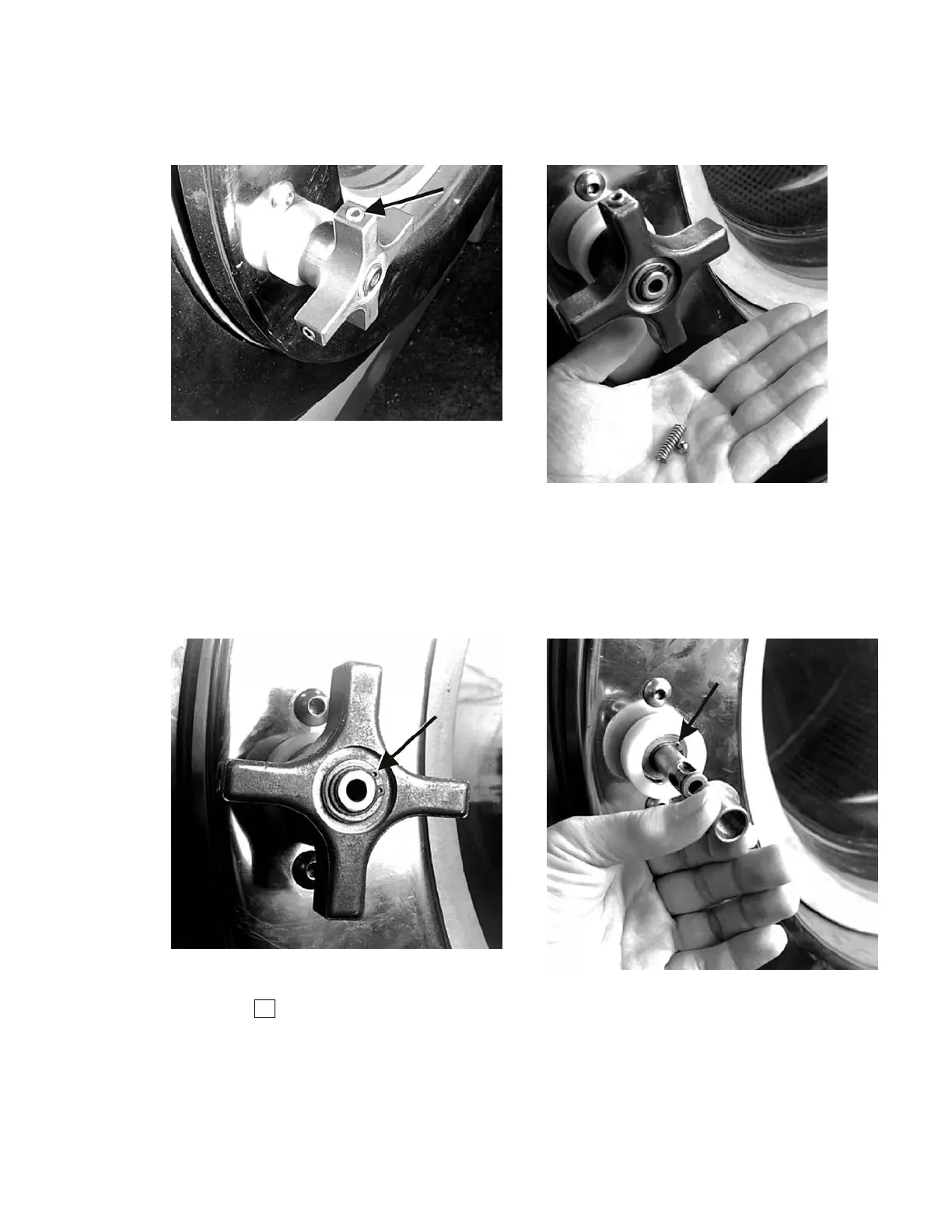

Figure 1: Door Handle Spoke Set Screw Figure 2: Handle Spoke Spring and Ball
4. Remove the front retaining clip and thrust washer (see Figure 3), then pull the handle off of
the shaft.
5. Normally, the flange bearing will come off with the handle, but if not, remove it as shown in
Figure 4. Remove the rear retaining clip. Push against the door to release the retaining clip.
Figure 3: Front Retaining Clip and Thrust Washer Figure 4: Rear Flange Bearing (being removed) and
Retaining Clip (arrow)
Notice 3 : Risk of component damage—The return spring is located around the shaft,
between the door and the shaft cam. The end of the spring is inserted into a small hole in the
shaft cam. The spring can stretch and be damaged if it does not separate from the shaft cam.
• Be prepared to work the end of the spring out of the hole in the shaft cam as the door
is opened.
