2.2 Use the Red Safety Supports for Maintenance —
MWF_C_, MWF_Y_
BNWMXH01.C01 0000374594 A.5 A.4 8/18/21 3:04 PM Released
2.2.1 What Safety Supports are Provided and Why
BNWMXH01.C02 0000374593 A.5 A.4 A.3 10/26/21 4:05 PM Released
These machines are provided with two safety stands. It is permissible to use both stands or only
one stand. After the housing is tilted forward, the stand(s) are placed on the tilt base cross beam.
If only one stand is used, it is placed adjacent to the tilt air bag. The safety stand(s) provide pro-
tection against the un-powered descent of the housing during maintenance in the event of a leak
in the pneumatic tilt system. Such a condition can cause the housing to fall quickly. Use the safety
support(s) whenever the maintenance to be performed requires you to place any part of your body
in or near the path of the vertically moving portion of the machine.
WARNING: Incorrect use of the safety supports — can cause the machine to descend
and crush you.
� Never work near the path of the vertically moving portion of the ma-
chine unless the safety supports are deployed and power is removed from
the machine.
� Maintain the safety support(s) in good condition.
� When not in use, stow the safety support(s) in the location(s) provided on the machine
or in a convenient, designated location.
2.2.2 How To Deploy the Safety Stands
BNWMXH01.T01 0000399959 A.5 A.4 A.2 10/27/21 10:48 AM Released

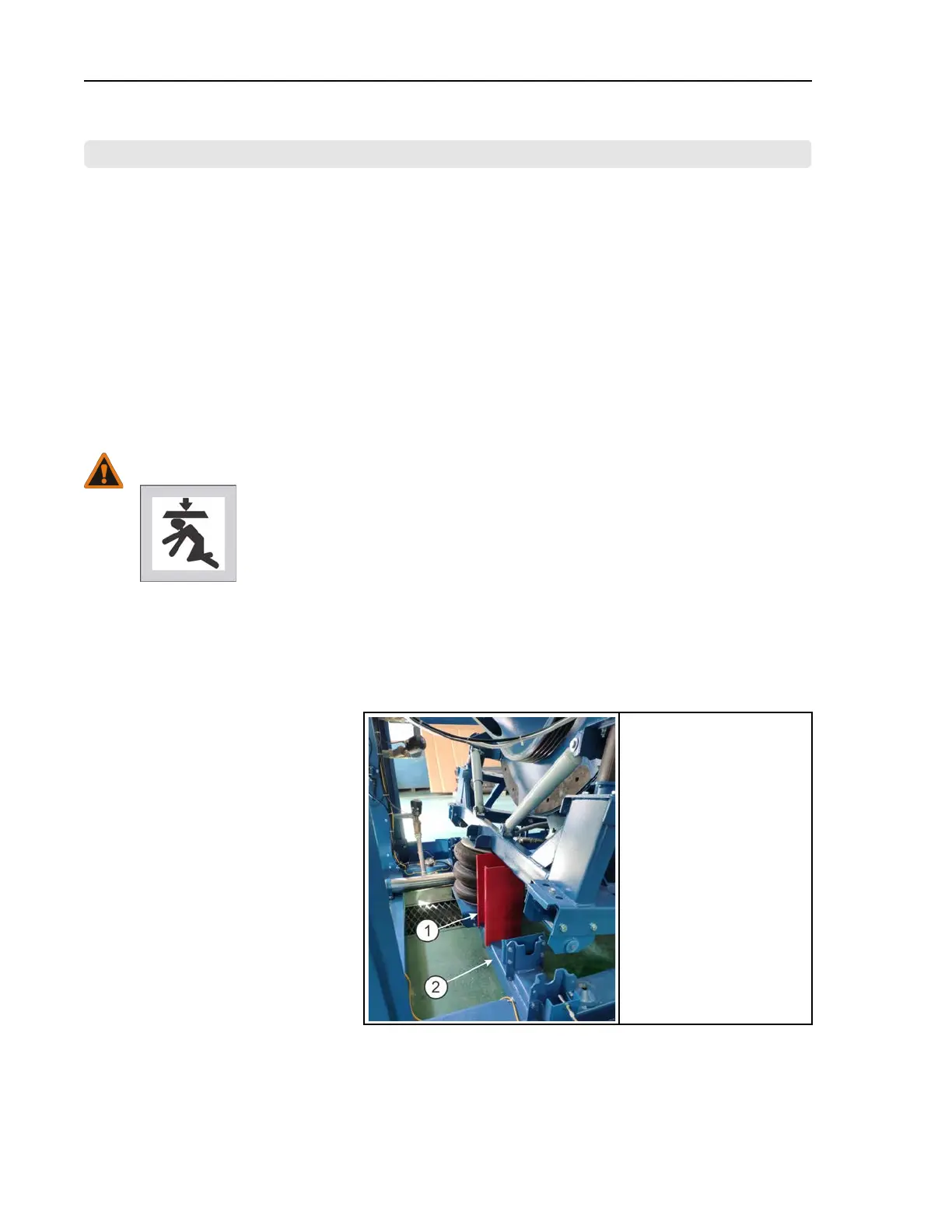

Legend
1...Safety stand. Shows
placement when only
one stand is used.
2...Tilt base cross beam
1. Use the controls to tilt the ma-
chine up as in normal
operation.
2. See the illustration at right.
Put one or both safety stands
on the tilt base cross beam so
the stands are seated securely.
Reach from the rear of the ma-
chine with the lower, rear cov-
er removed.
3. Use the controls to carefully
lower the housing just until it
is resting on the stand(s).
4. Remove electric power from
the machine.
