Milnor MWF63C Series Maintenance Guide

34
Pellerin Milnor Corporation
BNWBUH01 / 2021444
BNWBUH01 0000336079 B.15 10/27/21 11:55 AM Released
3.3 Maintenance Components—Large Extractors
BNWBUH01.C01 0000336078 A.5 B.15 B.2 6/28/21 11:22 AM Released
3.3.1 Lubricant Maintenance for Grease-filled Drive Bearings
BNWBUH01.C08 0000351843 A.5 B.15 A.6 10/26/21 1:32 PM Released

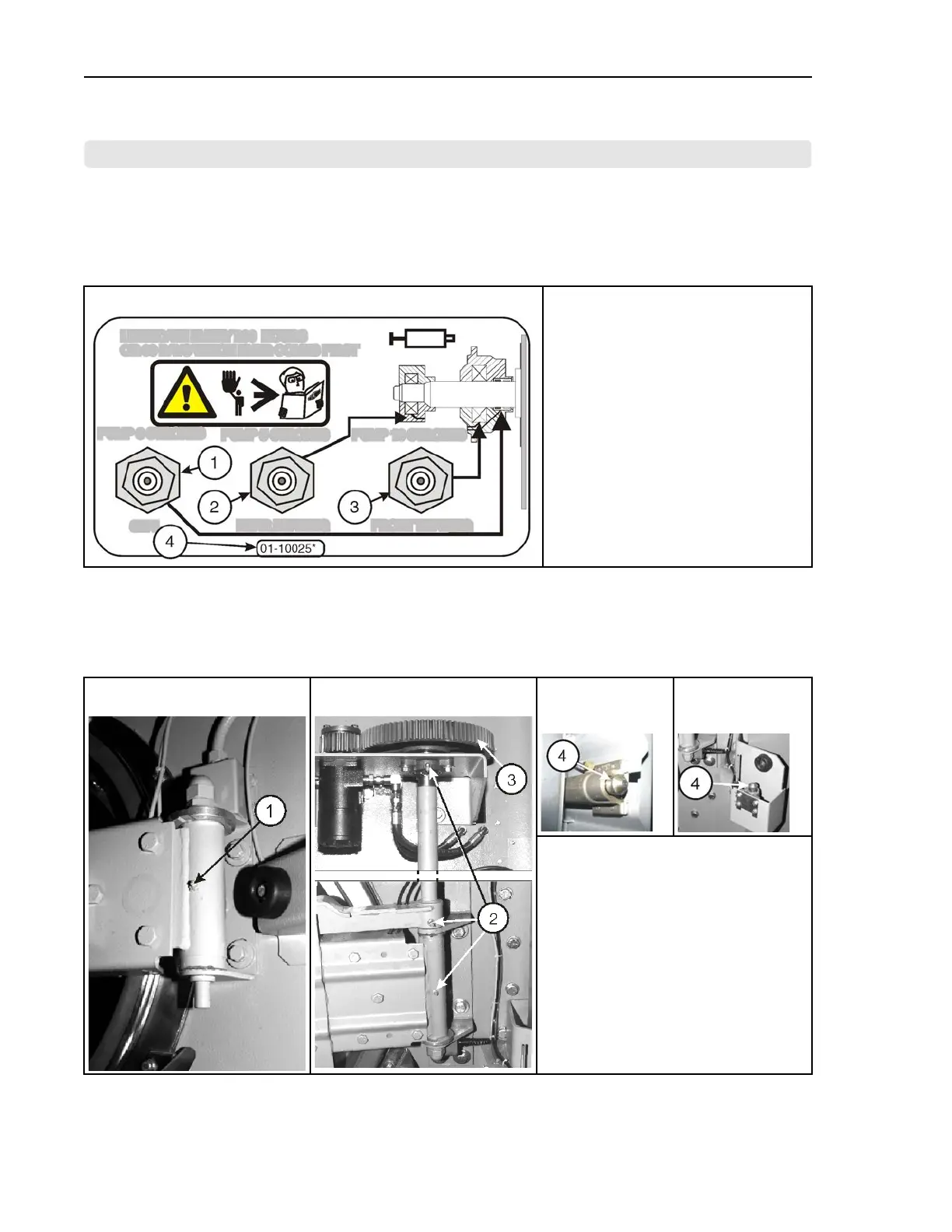

Figure 20. Grease Ports for Grease-only Bearing Assembly
Grease Plate 01-10025X, 01-10025Y, or 01-10025Z
Legend
1...Seal grease port
2...Rear bearing grease port
3...Front bearing grease port
4...Grease plate part number. Make
sure you use the grease instructions
for the plate on your machine: 01-
10025X, 01-10025Y, or 01-
10025Z.
3.3.2 Lubricant Maintenance for Non-drive Components
BNWBUH01.C09 0000351842 A.5 B.15 A.14 10/19/21 1:55 PM Released
Figure 21. Grease ports for Door—Open Pocket Models. These are examples. Your machine can
look different.
Door Hinge—models with
manual door
Door Rod—models with hy-
draulic door
Door Latch
Plunger—most
models
Door Open
Plunger—some
models
Legend
1...Grease port, one instance. On some
machines, the door must be open
for access.
2...Grease ports, three instances
3...No lubrication necessary
4...Apply a thin film of grease to
plunger surface.
Routine Maintenance
