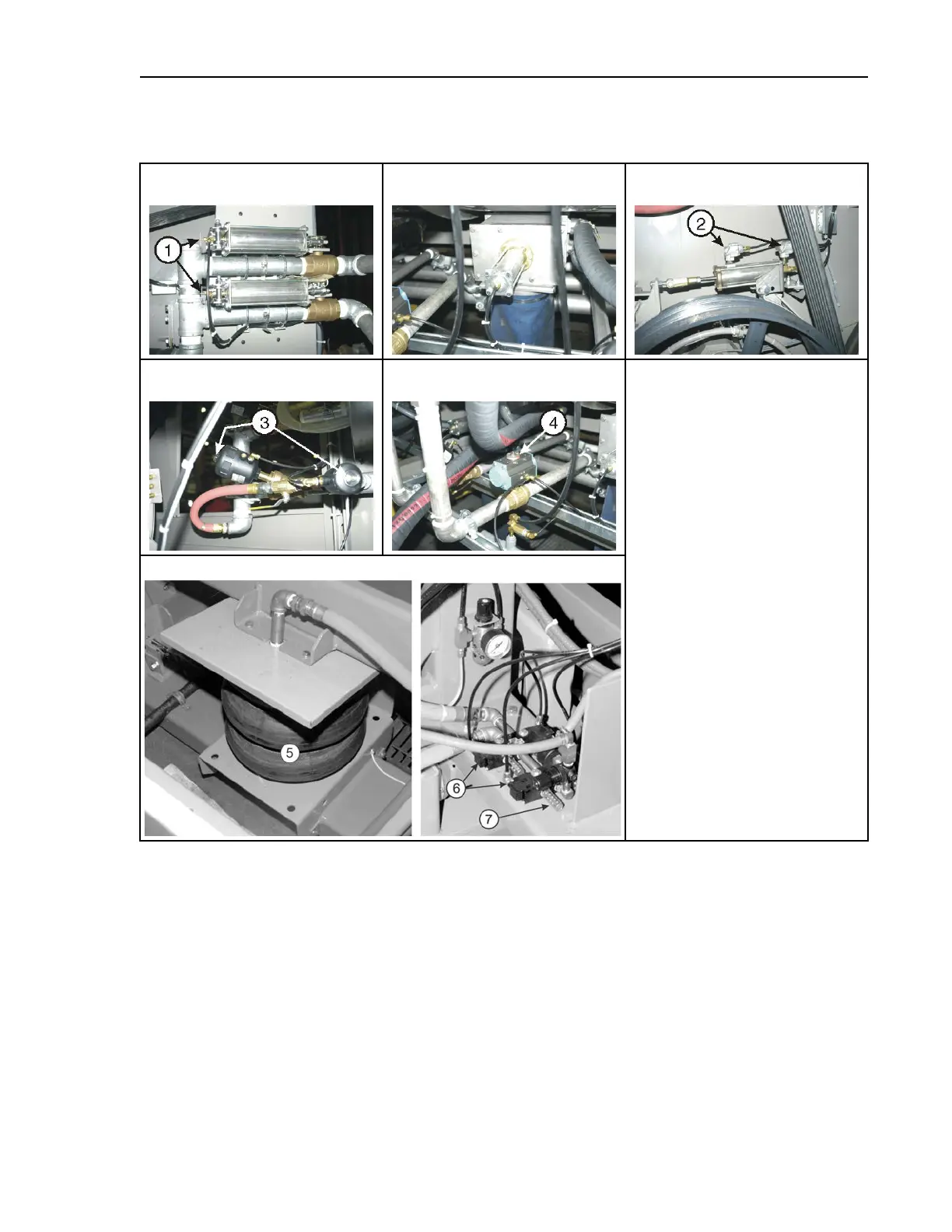

Figure 17. Compressed Air Mechanisms These are examples. Your machine can look different.
Air Operated Water Valves - Mil-
nor
®
Air Cylinder Type
Air Operated Drain Valve - Mil-
nor
®
Air Cylinder Type
Air Operated Band Brake - Mil-
nor
®
Air Cylinder Type
Air Operated Water and Steam
Valves - Angle Type
Air Operated Water Valve - Ball
Valve Type
Legend
1...Factory-set needle valves to
cause two air cylinders to
move together. Do not adjust.
2...Quick exhaust valves
3...Position indicator. Yellow
when valve is open.
4...Arrow position indicator
5...Tilt air bag
6...Air valve
7...muffler
Air Tilt Components
