Milwaukee 3712 - PRODUCT FUNCTIONAL DESCRIPTION; TECHNICAL SPECIFICATIONS

3

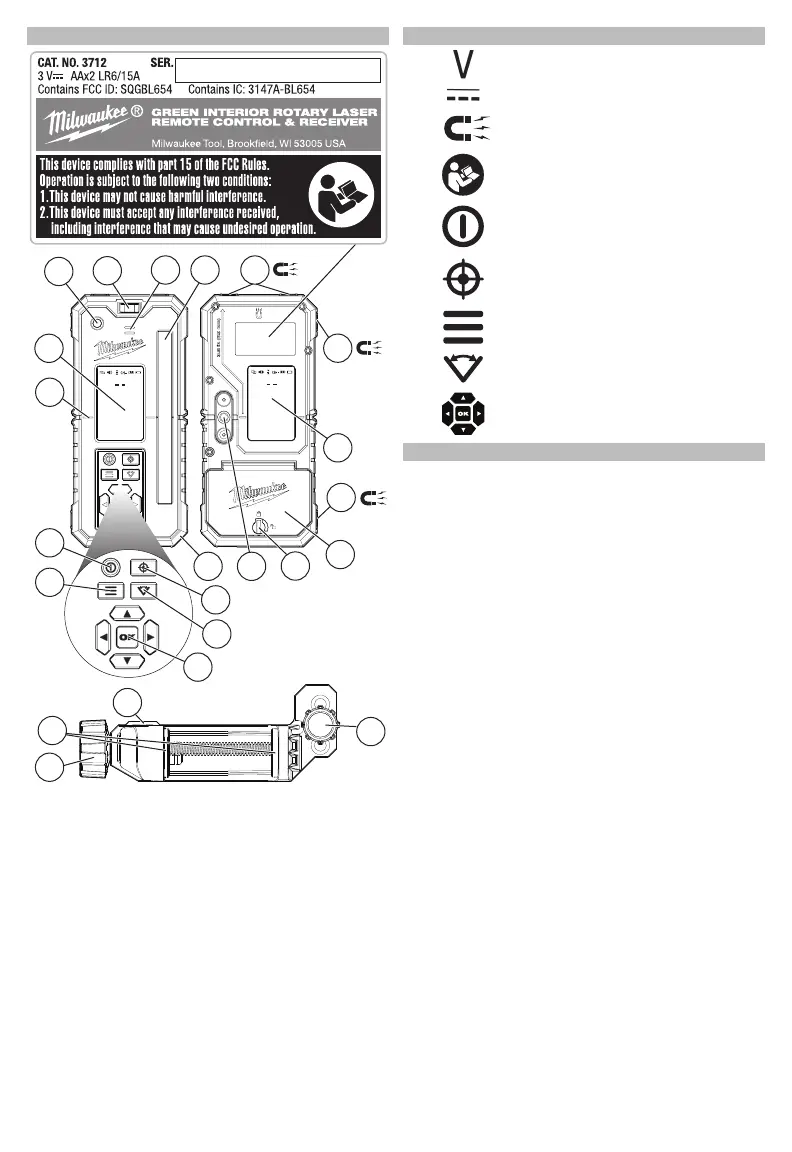

FUNCTIONAL DESCRIPTION
IN
IN
IN
IN
1
1. Laser locator
indicator LED
2. Bubble level
3. Speaker
4. Sensor
5. Magnets (4)
6. Back LCD screen
7. Battery door
8. Battery door turn lock
9. Clamp connection
feature
10. Wrist strap
attachment
11. Center nd button
12. Sweep button
13. D-pad
14. Main menu button
15. Power button
16. Center line
17. Front LCD screen
18. Surface vial
19. Clamp attachment
knob
20. Clamping knob
21. Clamp jaws
10
IN
IN
18
19
21
20
16
17
2
3 4
5
5
6
5
7
8
9
11
12
13
14
15
SYMBOLOGY
Volts
Direct Current
Magnets
Read Operator's Manual
Power Button
Center Find Button
Menu Button
Sweep Button
D-Pad
SPECIFICATIONS
Cat. No. ...........................................................3712
Volts........................................ 3 V (2xAA) LR6/15A
Module/FCC ID .......................... BL654/SQGBL654
Reception Angle ................................................ 70°
Wavelength Compatibility .................. 510 - 530 nm
Detection Range ................................ 15' up to 500'
Receiving Area ............................................... ±2.4"
Volume....................................................... ≥95 dBa
Altitude..........................................................<6560'
Pollution Degree .................................................. 2°
Ingress Protection............................................ IP67
Drop Rating .......................................................2 m
Bare Tool Weight ..........................................0.9 lbs
(Without batteries)
Weight .............................................................1 lbs
(With 2xAA batteries)
Center Indication (From top)............................. 3.5"
Auto Shut-o󰀨 ................................................. 15 min
(No button press or laser detection)
Run Time .......................................................26 hrs
Remote Control Range ..................................... 400'
(Clear line of site with no obstructions)
Clamp Weight ...............................................0.4 lbs
Clamp Width ..................................................... 2.5"
Maximum Relative Humidity (RH) ................... 80%
for up to 88°F
Decreasing Linearly Relative Humidity (RH) ... 50%
at 104°F
Recommended Ambient
Storage Temperature ...................-13°F to 140°F
Operating Temperature .................. -4°F to 122°F
Recommended Compatible
Laser Cat. No. .......................................3702-20
NOTE: Distance, laser power, and other environ-
mental factors such as temperature, precipitation,
or ambient light conditions may negatively impact
product accuracy and range.
