dnuora esiwkcolc seerged 09 resal eht etatoR .2

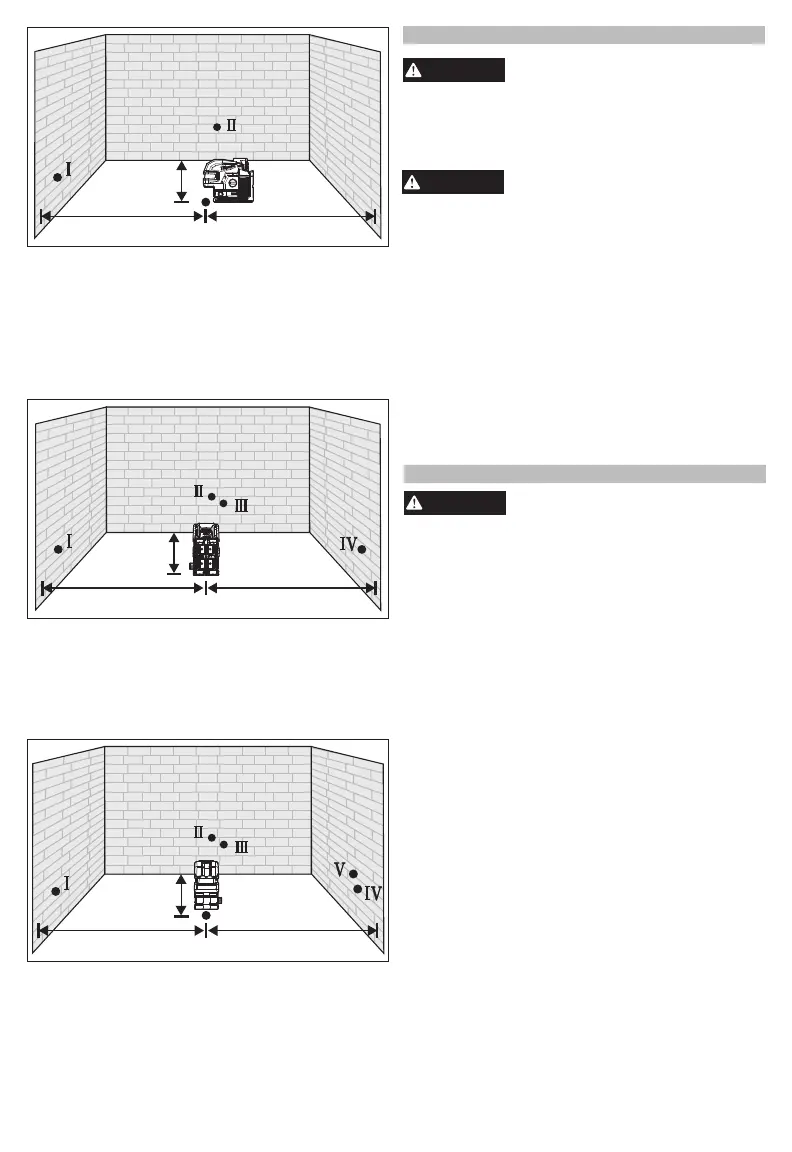

plumb point (x) and align the left Horizontal dot
with the previously marked point A. With the
laser in position, mark point (III) on wall B at the
intersection of the perpendicular lines directly in
front of the laser. Without moving the laser, mark
point (IV) on wall C using the right horizontal point.
The deviation (d) between points II & III should be
no more than 3.18 mm at 10 m.
A
B
C
10 m
10 m
10 m
dnuora esiwkcolc º081 resal eht etator ,yltsaL .3
plumb point (x) so that the right horizontal
point is aligned with the previously marked
point I. Without moving the laser, using the
left horizontal point mark (V) on wall C.
The deviation (d) between points IV & V should
be no more than 3.18 mm at 10 m.
A
B
C
10 m
10 m
10 m
MAINTENANCE
WARNING
To
remove
reduce
the
the
battery
risk of
before
injury,
perform
always
-
ing any maintenance. Never disassemble the tool.
Maintain Laser Level
Maintain tools. If damaged, have the tool repaired
before use. Accidents may be caused by poorly
maintained tools.
WARNING
Use only recommended accesso-
ries. Others may be hazardous.
Cleaning
Repairs
For repairs, return the tool, battery pack and charger
to the nearest service centre.
ACCESSORIES
Clean dust and debris from vents. Keep handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain
cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include
petrol, turpentine, lacquer thinner, paint thinner,
chlorinated cleaning solvents, ammonia and
household detergents containing ammonia. Never
use flammable or combustible solvents around
tools.
For a complete listing of accessories, go online to
milwaukeetool.com.au / milwaukeetool.co.nz or
contact a distributor.
WARNING
To reduce the risk of personal
injury and damage, never
immerse your tool, battery pack or charger in
liquid or allow a liquid to flow inside them.
