Mindray cPM 8 - Spo 2 Board; Parameter Connector Board; Modules; Module Converter

2-9
2.5.7 SpO
2
Board
The multi-parameter module supports Nellcor NELL-1 SpO
2
board and Masimo MS-2013 SpO
2
board.
SpO
2
board is used to collect SpO
2
signals transmitted by the multi-parameter module and process SpO
2
algorithms.
2.5.8 Parameter Connector Board
The parameter connector board transmits the ECG signal, Temp signal, SpO
2
signal, and IBP signals to the
multi-parameter board.
2.6 Modules
The monitor can carry multiple parameter modules, which include IBP/C.O., CO
2
, and AG modules. The detailed
module configuration is listed below:
 IBP module
 CO
2
Module
 IBP + C.O. Module
 IBP + C.O. + CO
2
(Mindray Sidestream CO
2
/Microstream CO
2
) module
 IBP + C.O. + AG (w O
2
) module

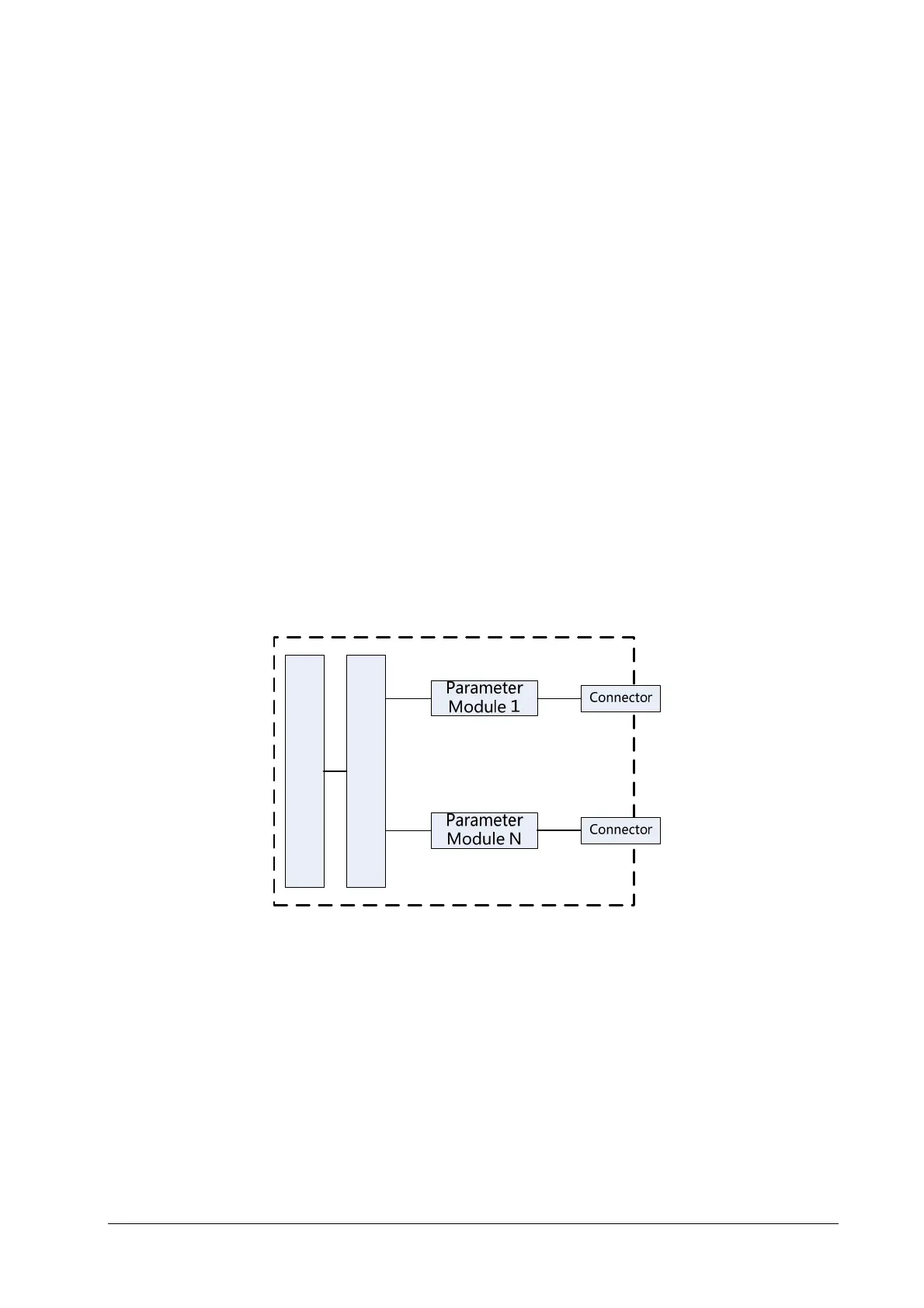

ExternalConverterBoard
ConverterBoard
2.6.1 Module Converter
The module converter performs signal conversion function.
