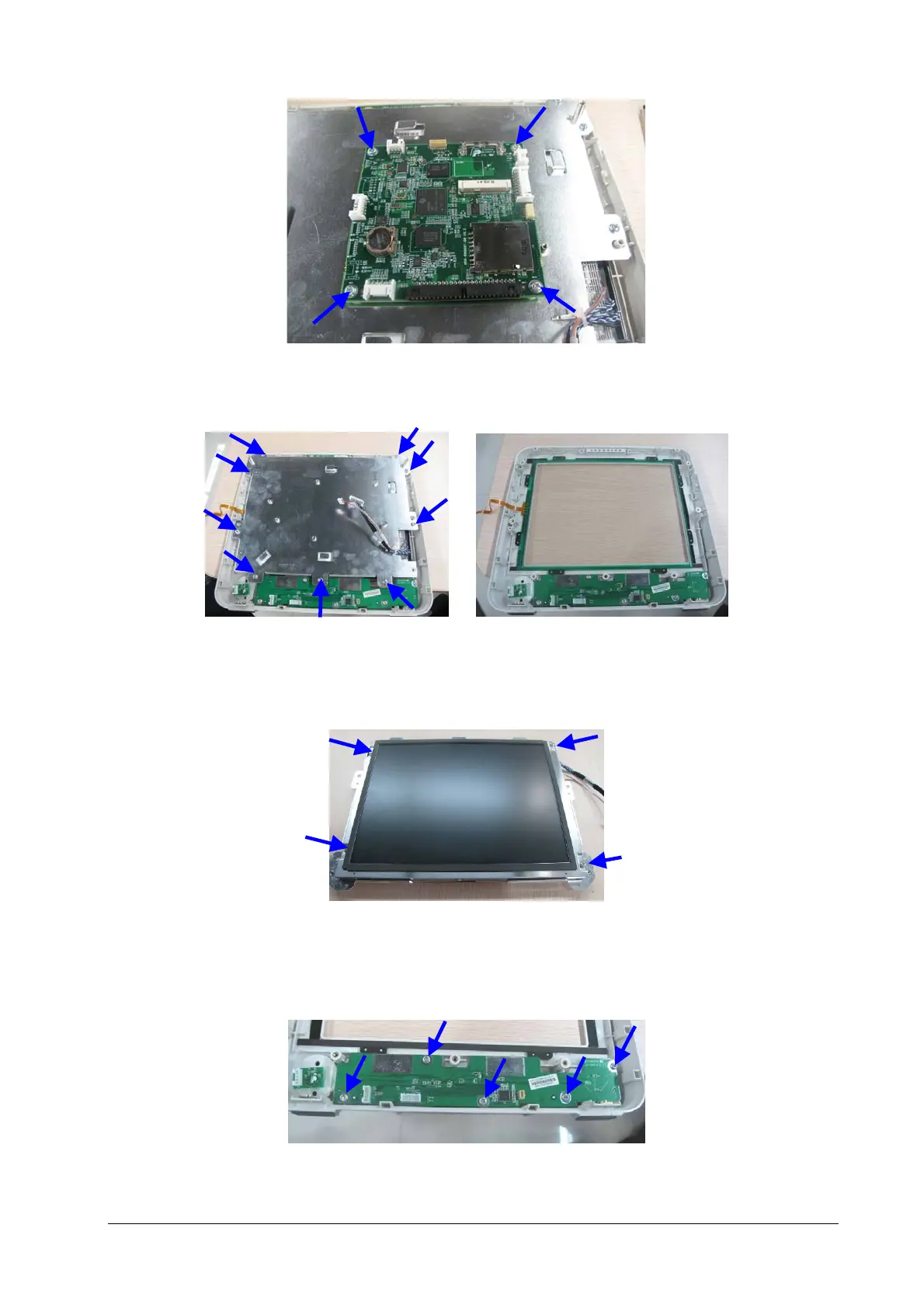

7-11
7.4.5
Removing the Touchscreen
Unscrew the nine M3×6 screws as indicated below
. T
ake out the touchscreen assembly and then the touchscreen.
7.4.6
Disassembling the Screen
Unscrew the four M3×6 screws indicated below to remov
e the screen.
7.4.7
Removing the Keypad
Unplug the encoder cable and unscrew the five PT3×
8 scr
ews indicated below
. T
ake out the keypad.
72
74
Table of Contents
Table of Contents
7
Safety
13
Safety Information
13
Warnings
13
Cautions
14
Notes
14
Equipment Symbols
14
Theory of Operation
15
The Basics
15
System Connections
16
Installation Support
16
Connectors for Peripheral Devices
17
Main Unit
19
Front Housing Assembly
20
Main Board
20
Keypad
20
Alarm Lamp Board
21
Touchscreen and Touchscreen Control Board
21
Wi-Fi Module (for Passport 12/Passport 8 Only)
21
Rear Housing Assembly
21
AC/DC Power Board
22
Power Management Board
22
Interface Board
22
Battery Interface Board
22
Recorder
22
Multi-Parameter Board
22
Spo 2 Board
23
Parameter Connector Board
23
Modules
23
Module Converter
23
Converter
24
IBP + C.O. Module
24
CO Module
24
AG Module
24
Unpacking and Installation
25
Unpacking the Equipment
25
Preparation for Installation
26
Preparation for Installation Site
26
Electrical Requirements
27
Monitor Installation
27
Preparation for Power on
27
Wireless Network Specification
27
Network Setup Overview
28
Setting the Network Type
29
Setting the Wireless Network (for Passport 12/Passport 8 Only)
29
Setting the WLAN Band and Channels (for Passport 12/Passport 8 Only)
30
Certificates Maintenance
30
Setting the Network Service Quality Level
31
Setting the Multicast Parameters
31
Hardware and Software Upgrade
33
Hardware Upgrade
33
Upgrade Package
33
Hardware Upgrade Method
34
Software Upgrade
35
Testing and Maintenance
37
Introduction
37
Preventative Maintenance
37
Preventative Maintenance Frequency
37
CO Tests and Calibration
38
AG Tests and Calibration
40
Performance Tests
42
Performance Test Frequencies
42
Visual Inspection
42
ECG Tests
43
Resp Performance Test
43
Spo 2 Test
44
NIBP Tests
44
Temp Test
46
IBP Performance Test
46
Test
47
Nurse Call Reply Performance Test
47
Analog Output Performance Test
48
Electrical Safety and Other Tests
48
Electrical Safety and Other Test Frequencies
48
Electrical Safety Test
48
Power-On Test
48
Touchscreen Calibration
49
Recorder Check
49
Battery Check
49
Network Print Test
50
Print Function Test
51
Factory Maintenance
51
Accessing Factory Maintenance Menu
51
Configuring the Central Station
51
Drawing Waves
51
Enabling/Disabling Recorder
51
Checking Software Version
51
Checking Monitor Information
51
Troubleshooting
53
Introduction
53
Part Replacement
53
Checking Monitor Status
53
Checking Software Version
53
Checking Technical Alarms
54
Troubleshooting Guide
54
Power On/Off Failure
54
Display Failures
54
Alarm Lamp Failures
55
Button and Knob Failures
55
Sound Failures
56
Battery Failures
56
Recorder Failures
57
Output Interface Failure
57
Data Storage Failure
58
Wired Network Related Problems
58
Wi-Fi Related Problems (for Passport 12/Passport 8 Only)
59
Module Failures
61
Technical Alarm Messages
61
Disassembly and Repair
63
Tools Required
63
Preparations for Disassembly
63
Disassembling the Main Unit
64
Separating the Front and Rear Half of the Monitor
64
Disassembling Parameter Modules
65
Removing the Parameter Connector Panel Assembly
65
Removing the Spo Board and Parameter Board
65
Removing Pump and Valve
66
Removing the Recorder (Optional)
66
Removing Battery Interface Board and Power Board (Passport 8/Cpm 8)
67
Removing the Battery Interface Board and Power Board (Passport 12/Cpm 12)
68
Removing the Power Management Board
69
Removing the Interface Board (Passport 8/Cpm 8)
70
Removing the Interface Board (Passport 12/Cpm 12)
70
Disassembling the Front Housing Assembly
70
Removing Touchscreen Control Board
71
Removing the Wi-Fi Module (for Passport 12/Passport 8 Only)
71
Removing SD Card
72
Removing the Main Control Board
72
Removing the Touchscreen
73
Main Unit
80
Front Housing Subassembly
81
Exploded View
81
Parts List
81
SN Description FRU Part Number
81
Rear Housing Assembly
83
Multi-Parameter Assembly
84
Battery Compartment Assembly
85
TR6F Recorder
91
Front Cover Assembly of Passport
91
Multi-Parameter Assembly
95
NIBP Pump and Valve Kit
95
IBP_C.O. Module Assembly
96
Ibp_C.o._Sidestream CO
96
Module Assembly
96
Ibp_C.o._Microstream CO
96
IBP_C.O._AG Module Assembly
96
A Electrical Safety Inspection
105
Power Cord Plug
105
Device Enclosure and Accessories
105
Visual Inspection
105
Contextual Inspection
106
Device Labelling
106
Scheduled Electrical Safety Inspection
106
Electrical Safety Inspection after Repair
106
Electrical Safety Inspection Form
107
