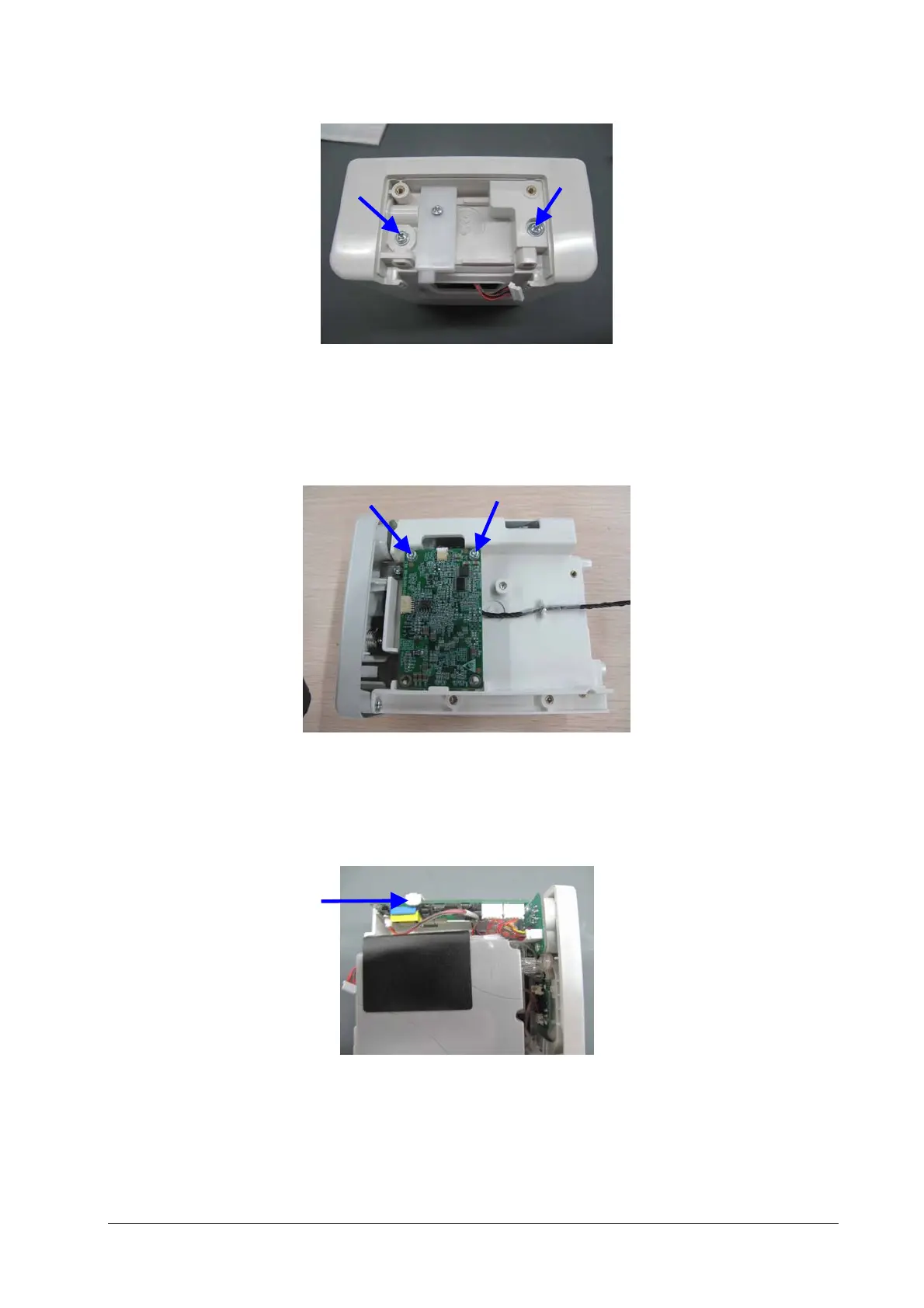

7-13
2.
F
or other modul
es, unscrew the two M3×6 screws on
the back to separ
ate the front and rear housing
.
7.5.3
Removing the External Module Interface Board
Unscrew the two M3×6 screws, disconnect all the cables from the board, and then remov
e the modu
le inter
face
board.
7.5.4
Removing M03B Module
Disconnect all the cabl
es from the M03B module and push
the clamp on the bracket to remov
e the M03B module.
