8-1
8 Parts
8.1 Introduction
This chapter contains the exploded views and parts lists of the main unit. It helps the engineer to identify the parts
while disassembling the monitor and replacing the parts. This manual is based on the maximum configuration. Your
equipment may not have same parts and the quantity of the screws or stacking sleeves etc. may be different with
those included in the parts lists.

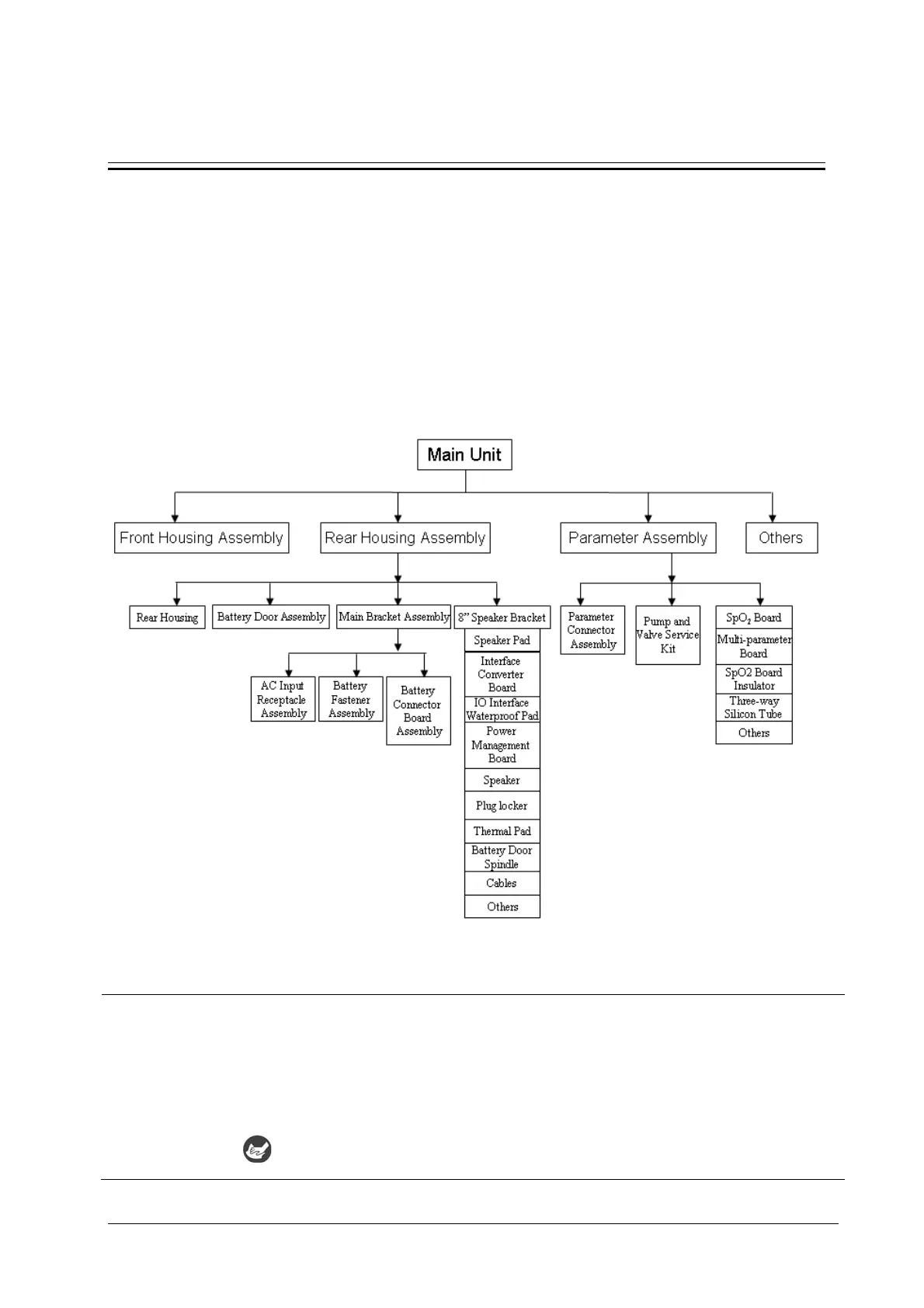

Hardware architecture of the main unit is shown below:
NOTE
The part number listed in the Parts List is only for checking the FRU part number which is also included in
the Parts List.
For parts in the Parts List below that contain two part numbers, the first part number is for patient monitors
built with one version of plastic material, the second part number is for patient monitors built with another
version of plastic material. The way to distinguish which material your monitor is built from is if it contains
the symbol
.
