8-16

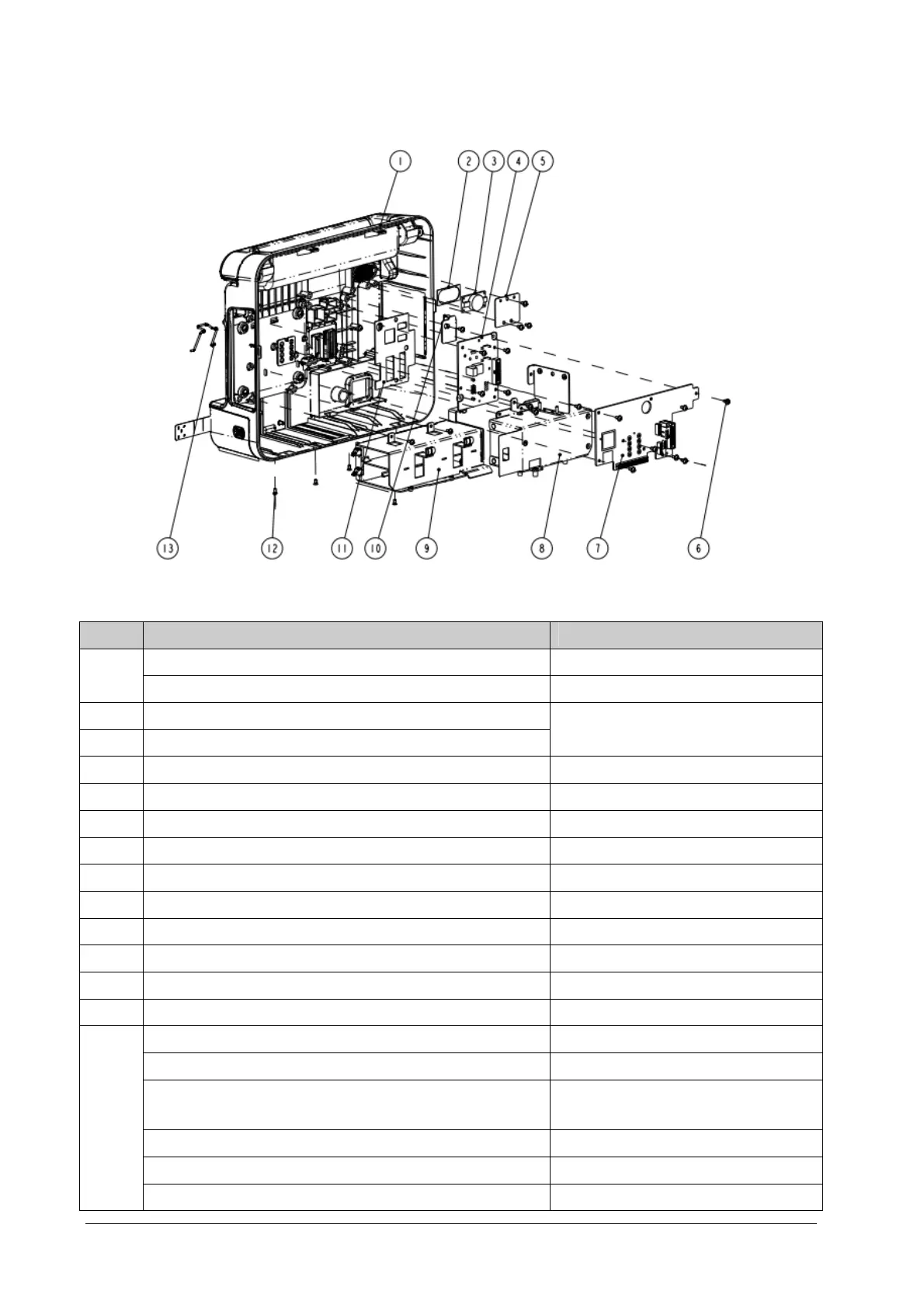

8.3.3 Rear Housing Assembly
8.3.3.1 Exploded View
8.3.3.2 Parts List
SN Description FRU part number
1 Rear housing assembly (Passport 12) 115-010843-00/115-048891-00
Rear housing assembly (cPM 12) 115-048891-00
2 Speaker pad 801-9261-00010-00
3 Speaker, 2W, 4ohm, 500 Hz
4 Interface converter board (Passport12, full config, USB) 115-018178-00
5 Speaker pad /
6 Screw, Pan head with washer, Phillips M3×6 /
7 Power management and interface board (full config, USB) 051-001007-01
8 Power board PCBA (Passport 12) 051-001064-00
9 Battery compartment subassembly (12 inch) /
10 Parameter board bracket (Passport 12) /
11 I/O interface waterproof pad (Passport 12) /
12 Screw, pan head, Phillips, M3×6 /
13 AC Inlet Hook 9211-20-87369
Other
parts
Cable between power management board and I/O interface board 009-002235-00
Cable between the interface board and main board 9211-20-87225
Cable between the power management board and parameter
board
009-001989-00
Recorder cable 009-001969-00
Battery door assembly service kit (Passport 12) 801-9221-00005-00
AC input receptacle assembly 115-010916-00
