Mindray DC-80 EXP User Manual

5-78 Image Optimization
3. Tap [Edit] to edit the measurements. The measurements on the right of the screen update in
real time.
a) Tap [Edit] to modify the measurements. The caliper becomes green.
Or, press <Set> to activate the caliper (becoming green).
b) Move the trackball and press <Update> to modify the length and the position of the
caliper.
c) Press <Set> to confirm the caliper. The caliper becomes white. [Edit] is off.
NOTE:
Once the automatic measurements are completed, the operations to axial rotation, reference line
rotation, parameter adjustment, MSP editing, zooming/panning, dual/quad-split display will remove
the measurement results.
The measurement result is saved only for single-frame image, not for multi-frame image.
Reset
 All planes
Acquire 3D data. Tap [Smart Planes CNS] to enter the automatic detection of the mode. Reset the
following operations:
 Tap [All Planes] to reset the planes. The position and the angle to TCP, TTP, TVP,
MSP and reference line return to the initial condition.
 Tap [All Planes] to reset the planes. The position to TCP, TTP, TVP, MSP and
reference line returns to the last MSP condition. The angle to CP, TTP, TVP, MSP and
reference line returns to 0°.
 Current plane
Acquire 3D data. Tap [Smart Planes CNS] to enter the automatic detection of the mode. Reset the
following operations:
 Tap [Current Plane] to reset the plane. The position of the current plane returns to the
initial condition. The angle of the current plane returns to 0°.
 Tap [Current Plane] to reset the current plane. The position and the angle to the
current plane returns to the last MSP condition.
Other related Operations
 Zooming/panning adjustment
Same as these in 3D/4D mode.
 Measurement, comments, and body mark
Same as these in other modes.
 Hiding the reference
Tap to hide or show the reference line.
 Hiding the measurement
Tap to hide or show the measurement.
 Switching between the single and quad-split display

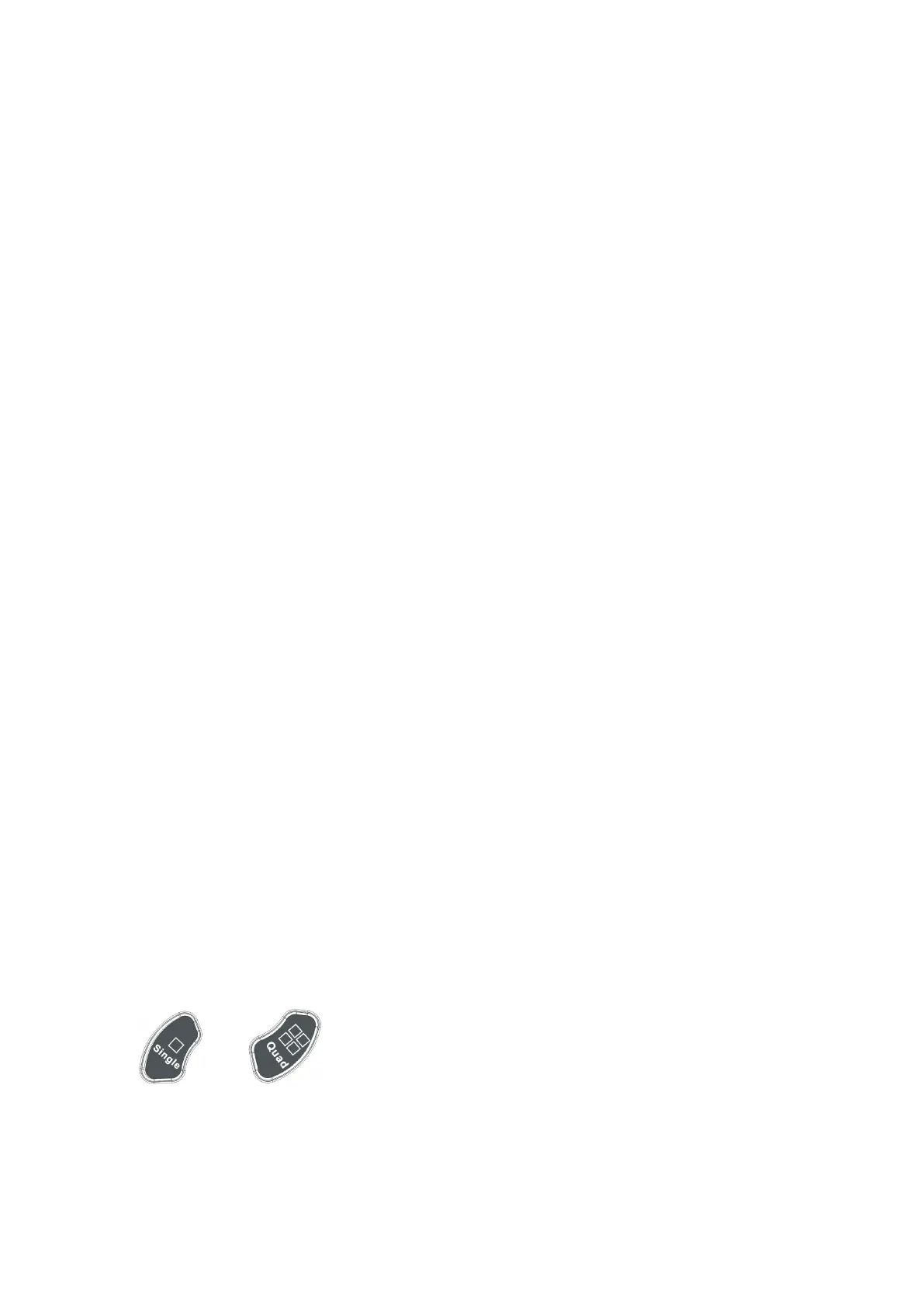

Press and between the single and quad-split display.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
