Mindray DP-18 - I;O Panel

System Basics
1-3
1.2 I/O Panel

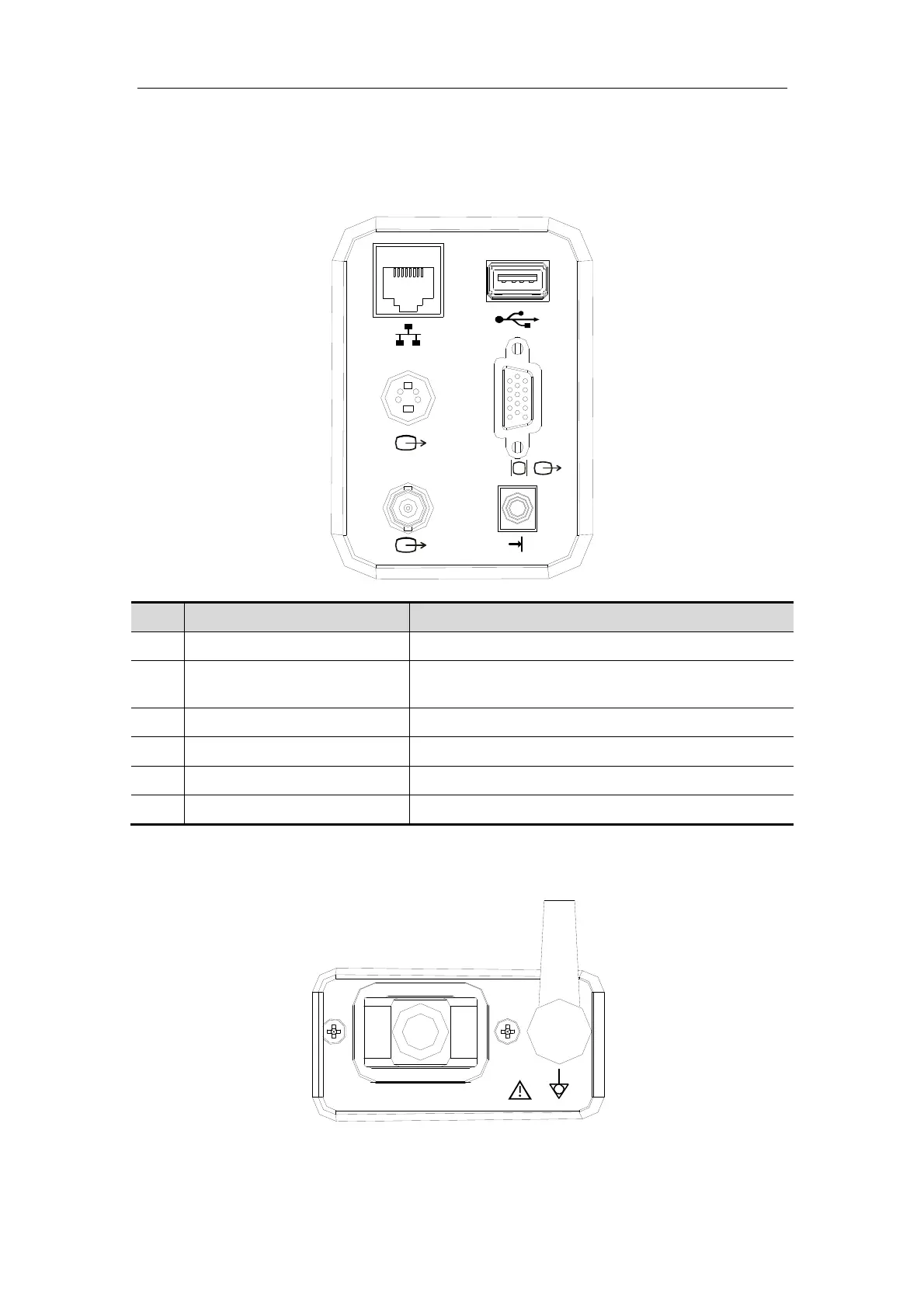

The I/O panel locates at the back of the system.
<4>
<2> <5>
<3> <6>
VGA
<1>
No. Name Function
1
Network port To connect the network cable
2
S-Video output
Separate video output, connecting video printer or
monitor
3
Video output (coaxial-cable) Video output, connecting video printer or monitor
4
USB ports Used to connect USB devices.
5
VGA output VGA signal output
6
Video printing control Connects the remote cable of the video printer.
1.3 Power Supply Panel
<1>
100 - 240V~50/60Hz 1.0-0.5A
<2>
