Transducers and Biopsy
12-21

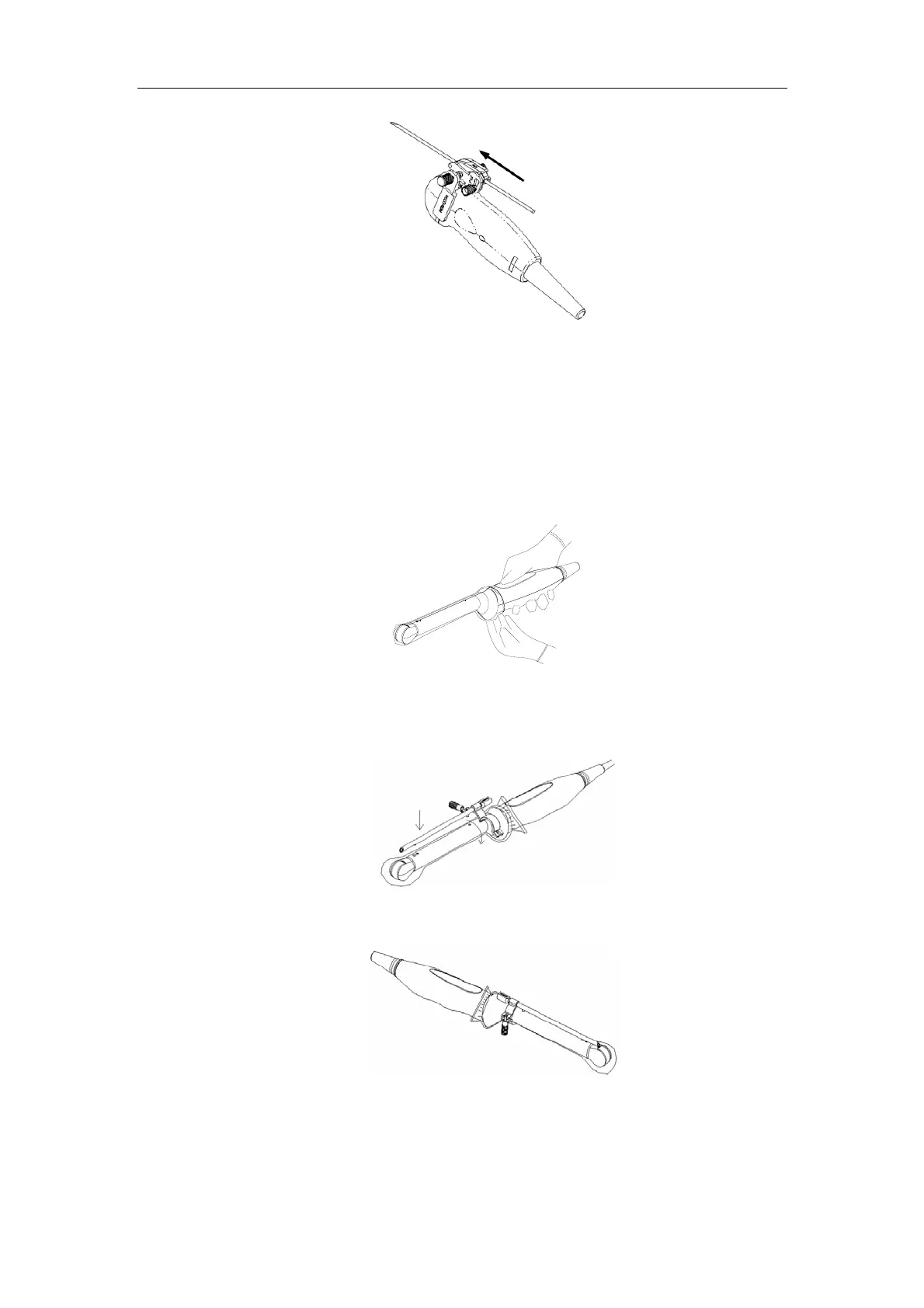

 NGB-001, NGB-002, NGB-003 and NGB-005 metal/needle un-detachable needle-guided
bracket (taking NGB-001 as example)
1) Inosculate the locating groove on the clamp with the two raised edges on the
transducer head and aligning the locating pit of the clamp to the convex point on the
transducer head.
2) Turn the grip knob at the tail of the needle-guided bracket tightly.
 NGB-004 metal/needle un-detachable needle-guided bracket
1) Put on the sterile transducer sheath.
2) Open the retaining clamp, align the needle-guided bracket with the transducer to
locate the locating bulge on the needle guide to the locating grooves on the
transducer, and then turn the retaining clamp to match it with the transducer (See the
figure below).
3) When the retaining clamp is turned to the right position, the locking nut will lock the
retaining clamp and the needle-guided bracket is then mounted to the right position.
 NGB-012
Metal/needle detachable needle-guided bracket:
1) Put on the sterile transducer sheath.
